17 Analog Input/Output Option Board
CP2E CPU Unit Software User’s Manual(W614)
17-7 Analog I/O Option Board
17
17-7-3 Wiring
z Applicable Cables
Solid wire or ferrules can be used.
• Recommended solid wire
• Recommended ferrules
Note Do not connect bare stranded wires directly to terminals.
z Terminal Wiring
When wiring the analog I/O terminal block, treat either solid or stranded wires directly.
17-7-3 Wiring

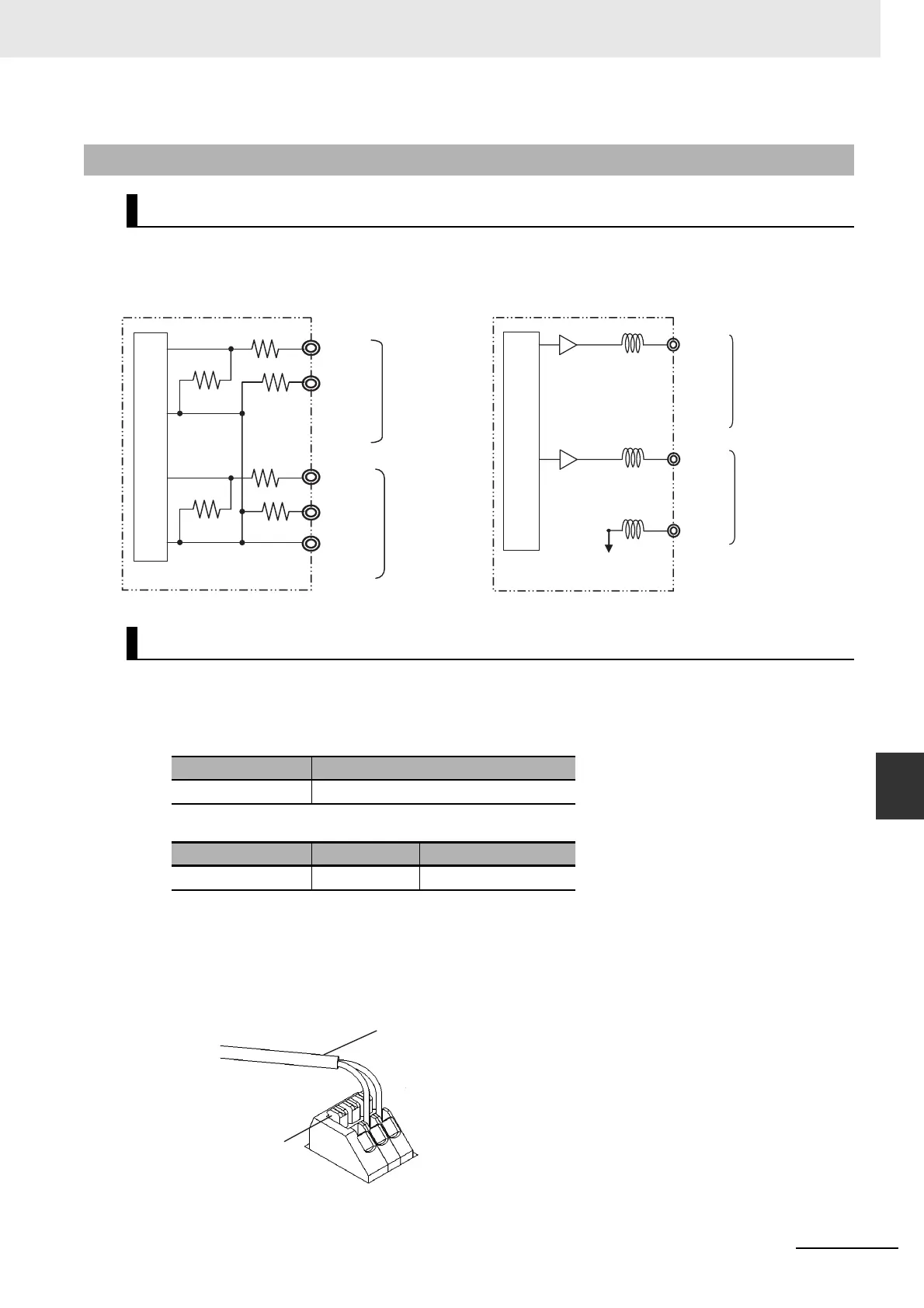

Internal Circuits
Applicable Cables and Terminal Wiring
Wire type Wire size
Solid Wire
0.2mm
2
to 0.5mm
2
(AWG24 to AWG20)
Manufacturer Model Applicable wire
Phoenix Contact AI-0.25-12
0.2mm
2
(AWG24)
Analog input Analog output
Analog input 2
Analog ground
I I 1
V I 1
COM(−)
I I 2
V I 2
56 kΩ
250 Ω
250 Ω
180 kΩ
180 kΩ
Internal circuits
Analog input 1
to
56 kΩ
Analog output 1
Analog ground
V O 1
COM(−)
V O 2
Analog output 2
toto
to
Internal circuits
Release button
2-conductor shielded
twisted-pair cable
