12 Pulse Outputs
CP2E CPU Unit Software User’s Manual(W614)
12-1 Overview
12
12-1-2 Flow of Operation

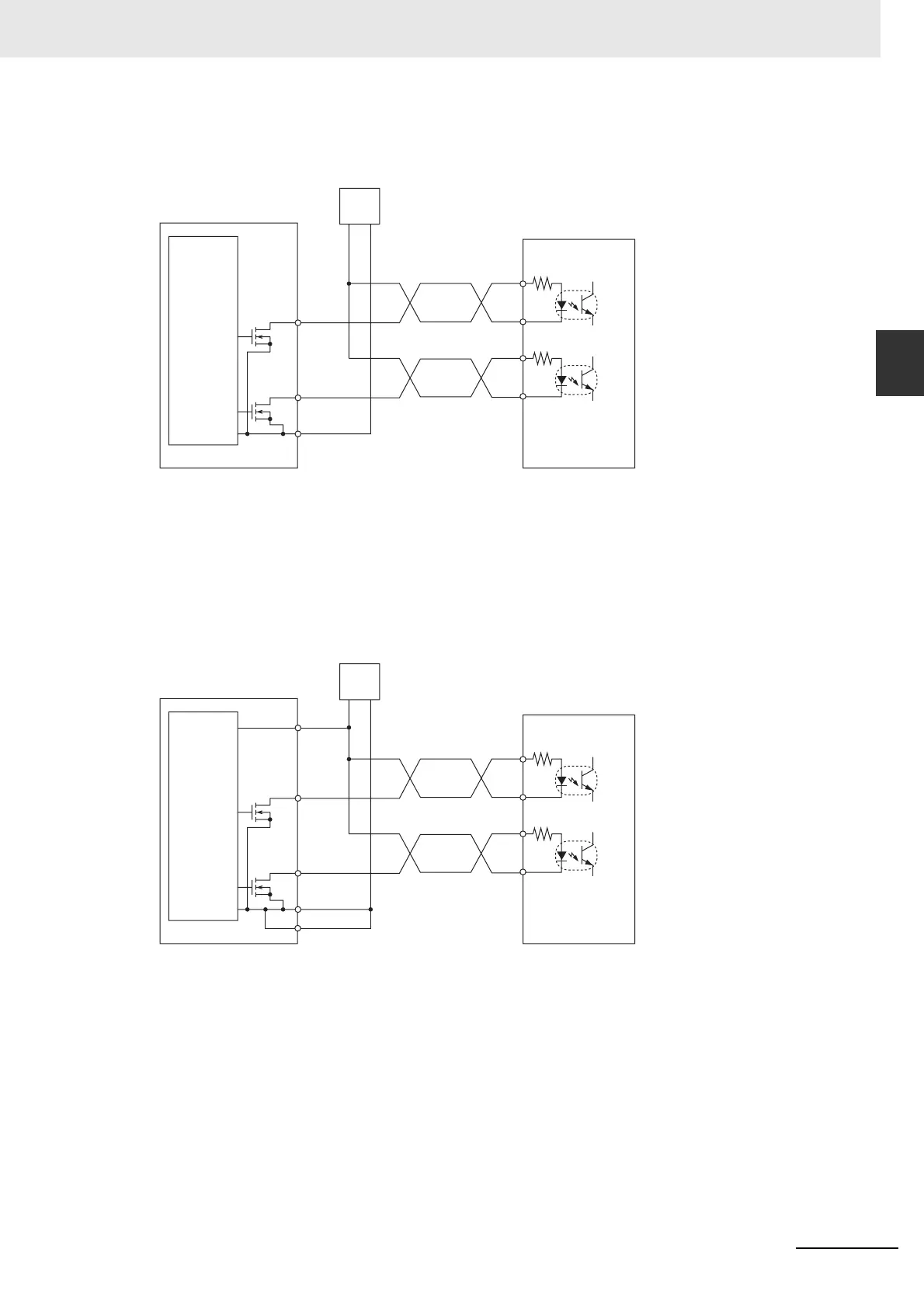

z Pulse Output Wiring
Nîš…îš…-type (Example: Sinking outputs)
Sîš…îš…-type (Example: Sinking outputs)
It is necessary to wire an external power supply to Sîš…îš…-type CPU Units.
Connect a DC24V external power supply between V+ and V- in order to use terminals 00 and 01 on
terminal block CIO 100.
Note COM corresponding to CIO 100.00 and CIO 100.01 has been internally connected with V- for sinking
output models, with V+ for sourcing output models.
PULS
PULS
SGN
SGN
(
+
)
(
+
)
(
-
)
(
-
)
+
-
CP2E CPU Unit built-in output terminals
Pulse output
Direction output
24-VDC
power
supply
100.00
100.01
100.02
100.03
COM
Servo Drive for 24-VDC input
Instruction pulse mode = feed pulse
and forward/reverse signal
PULS
PULS
SGN
SGN
(
+
)
(
+
)
(
-
)
(
-
)
+
V+
COM
V-
-
CP2E CPU Unit built-in output terminals
Pulse output
Direction output
24-VDC
power
supply
Servo Drive for 24-VDC input
Instruction pulse mode = feed pulse
and forward/reverse signal
100.00
100.01
100.02
100.03
