Omron SYSMAC CP2E-E D Series User Manual

18-17
18 Programming Device Operations
CP2E CPU Unit Software User’s Manual(W614)
18-3 Creating a Ladder Program
18
18-3-3 Editing Ladder Programs

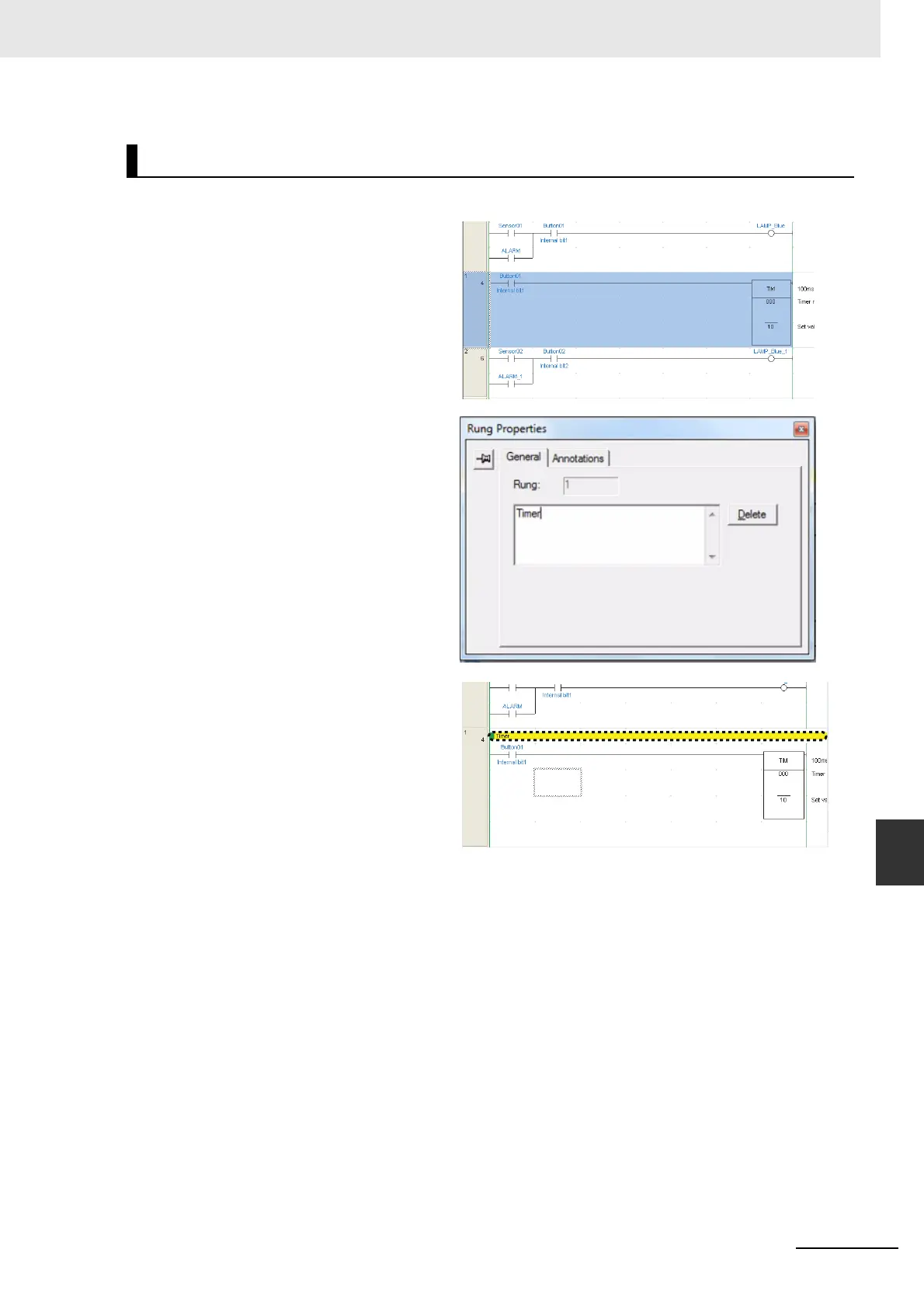

Comments can be added to rungs in the program.
Inputting Rung Comments
1 Double-click the header of the rung
to which a comment is to be
attached.
The Rung Properties Dialog Box will
be displayed.
2 Input a comment into the Comment
Field on the General Tab Page.
3 Close the Rung Properties Dialog
Box.
The input rung comment will be dis-
played in the ladder program.

Omron SYSMAC CP2E-E D Series Specifications

General

Input Voltage	24V DC
Data Memory	Up to 32 KB
Type	Programmable Logic Controller (PLC)
CPU Type	RISC
Communication Ports	RS-232C, RS-485
Ethernet Port	Yes
USB Port	Yes
Serial Port	1 x RS-232C
High-speed Counter	Yes
Pulse Output	Yes
Interrupt Inputs	Yes (4 inputs)
Expansion Slots	2
Operating Temperature	0°C to 55°C
Dimensions	90 x 90 x 70 mm
Series	CP2E-E D Series
