SECTION 2
Installation
SECTION 2
Installation and Connections/Wiring
Amplifier Unit

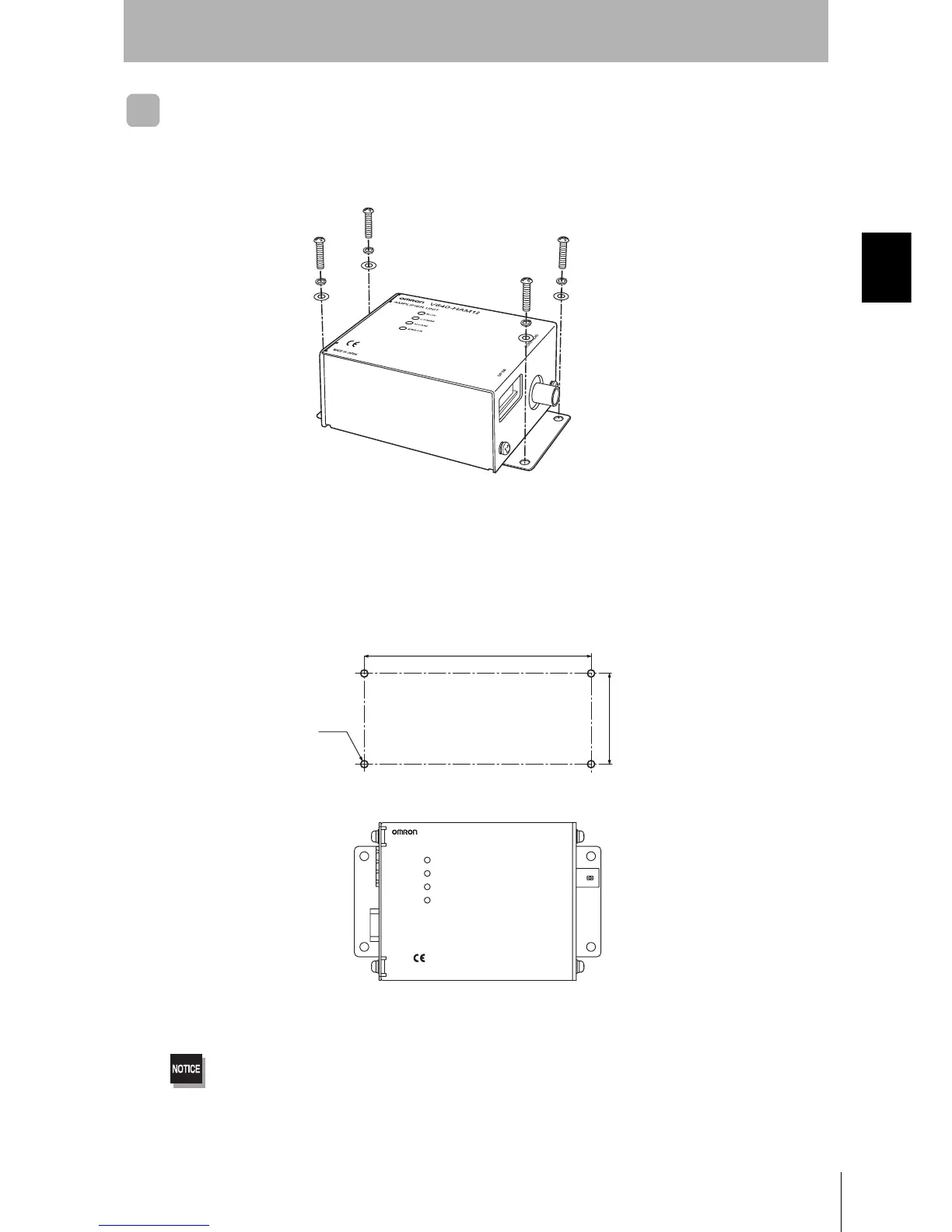

Use spring washers and flat washers with the four M4 screws when mounting the Amplifier Unit.
Tighten the M4 screws with a torque not exceeding 1.2 N·m.
V640-HAM12
MADE IN JAPAN
CIDRW HEADDIP SW
AMPLIFIER UNIT
RUN
COMM
NORM
ERROR
115±0.5
4-M4
46±0.5
Mounting dimensions
(Unit: mm)
