33
CIDRW System
User’s Manual
SECTION 2
Connections and Wiring
SECTION 2
Installation and Connections/Wiring

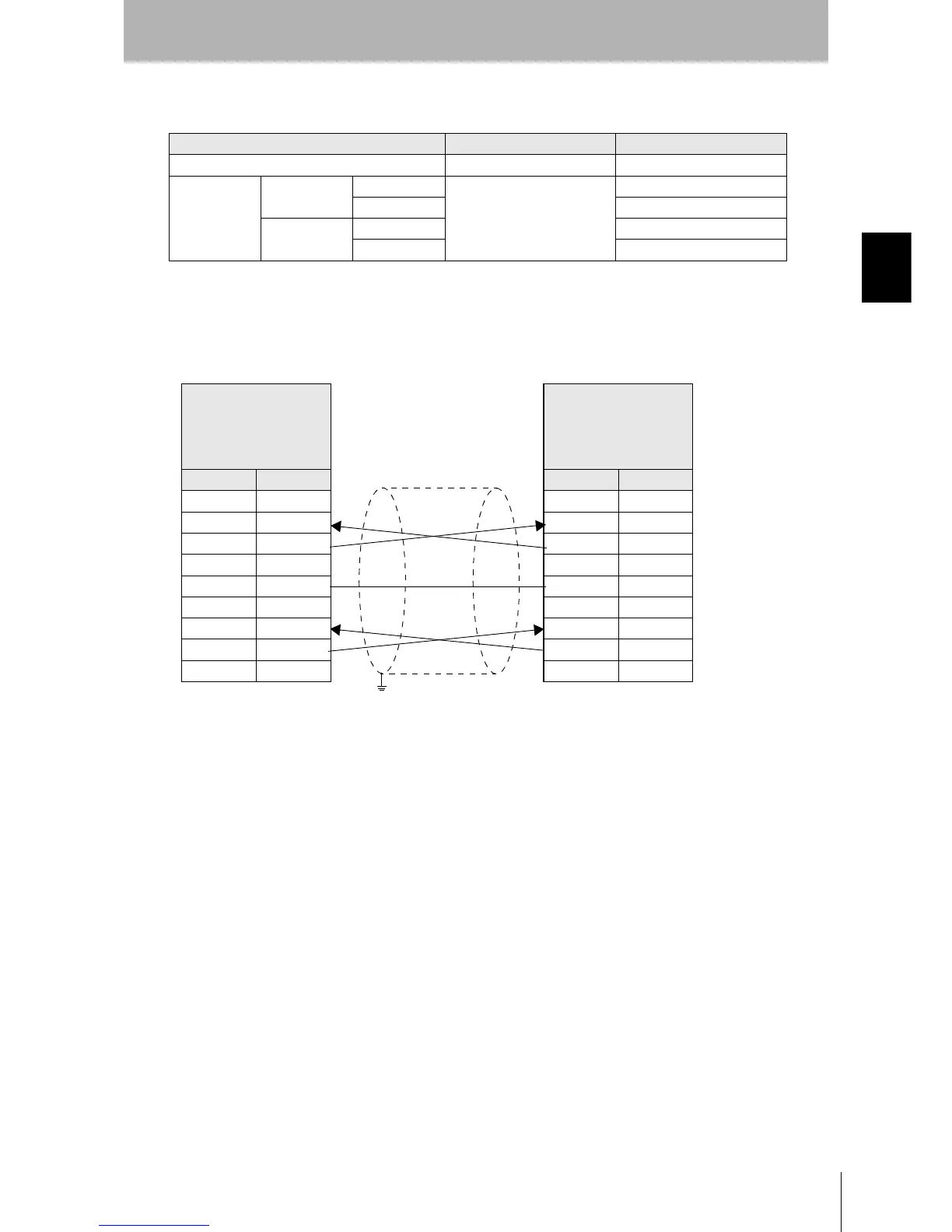

• Wiring for connection to a V700-L22 CIDRW Controller
The cable length should be no greater than 15 m.
Recommended model
Manufacturer Model
Cable Hitachi Cable CO-MA-VV-SB 5PX28AWG
Connector Host side Socket OMRON XM2D-0901
Hood XM2S-0913
Amplifier unit
side
Socket XM2D-0901
Hood XM2S-0913
Amplifier unit
V640-HAM12
D-SUB, 9-pin
Socket type
#4-40
Name Pin No.
NC 1
RD 2
SD 3
NC 4
SG 5
NC 6
RS 7
CS 8
NC 9
CIDRW Controller
V700-L22
D-SUB, 9-pin
Socket type
#4-40
Pin No. Name
1NC
2RD
3SD
4NC
5SG
6NC
7RS
8CS
9NC
Ground shielded wires either at the amplifier unit side or at the
CIDRW side.
