Starting
System
ELECTRIC STARTER
Normally the starter
will
require
little
or no service other
than possible brush replacement. However,
if
through
accident or misuse, the starter requires service or
overhaul, the following information will provide the
information necessary
to
perform this service.
Service
When starting engine, note starter motor action. The
pinion gear should mesh quickly with flywheel ring gear
and spin engine. Once engine starts and solenoid
opens, the starter should disengage and stop. If starter
cranks engine slow, or not at all, check start circuit
components. Failure to crank is normally caused by low
battery charge, defective battery cables, corroded or
poor connections, or
low
temperatures.
If
after checking
these variables, starter continues
to
crank slowly, starter
must be removed and repaired.
Starter Removal
[-I
Accidental starting
of
the engine can
result in severe personal injury
or
death. Disconnect the negative battery cable and spark
plug wires while servicing engine, controls,
or
asso-
ciated equipmenf.
1.
Remove both battery cables from battery. Discon-
nect ground cable first.
2.
Disconnect battery cable and electrical lead wires
from starter.
3.
Remove blower housing and cylinder air housing.
4.
Remove flywheel and starter motor.
Starter Disassembly
(Inertia
Type)
1.
Remove through-bolts and separate end cap,
housing, and armature (see Figure
1).
2.
Disassemble drive assembly and drive end cap by
3.
Inspect starter for damaged or worn parts.
4.
Repair or replace all damaged or worn parts, as
loosening the self-locking stop nut.
needed.
Starter Assembly (Inertia Type)
1.
Before reassembling the starter, wipe
off
any dirt
from parts with
a
clean cloth or blow
off
with filtered,
compressed air.

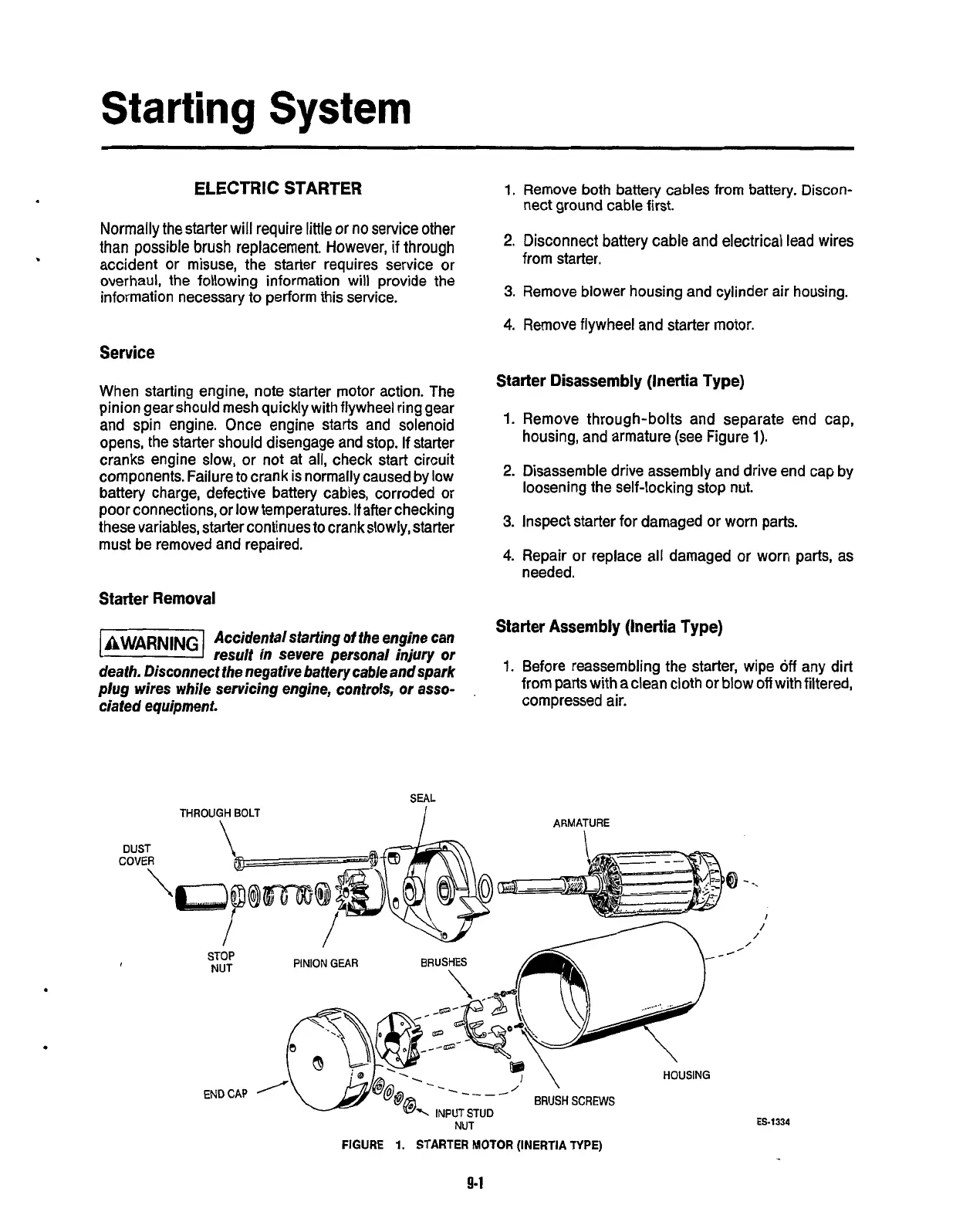

SEAL
I
/
PINION
GEAR
BRUSHES
STOP
NUT
HOUSING
BRUSH
SCREWS
'
INPUTSTUD
NUT
ES-1334
FIGURE
1.
STARTER MOTOR (INERTIA
TYPE)
9-1
