Onan B43E series User Manual

BEND FLOAT
TO ADJUST
TAB HERE
0.02kO.02 INCH
V
FUEL LEVEL
0.25 INCH
I
BEND FLOAT ARM
MINIMUM HERETO ADJUST
FLOAT DROP
I 0.20lNCH /
RBURETOR
AND SEAT
FLOAT LEVEL ADJUSTMENT WITH FUEL NO FUEL
FLOAT DROP ADJUSTMENTS
BEND FLOAT
0.028"k0.028"
TANG HERE (0.712k0.712 rnrn)
TO ADJUST
When checklng float level and float drop measure to float body, not seam.
WALBRO FLOAT LEVEL ADJUSTMENT
FUEL LEVEL
~ 0.394" (10.0 mm)
NE~DLE
AND SEAT
FS-1524
MINIMUM
FLOAT
DROP
0.213" (5.41 mm)
BEND FLOAT ARM
HERE TO ADJUST
FLOAT LEVEL ADJUSTMENT WITH FUEL
NO FUEL
FLOAT DROP ADJUSTMENTS
When checking float level and float drop measure to float body, not seam.
FS-1689
NiKKl FLOAT LEVEL ADJUSTMENT
NEEDLE BEND FLOAT
AND SEAT
~N~~~~~
u
FLOAT LEVEL ADJUSTMENT
BEND FLOAT ARM
HERE TO ADJUST
MINIMUM
I I
FS-1683
WITH FUEL NO FUEL
FLOAT DROP ADJUSTMENTS
When checking lloat level and float drop measure to float body, not seam.
NlKKl FLOAT LEVEL ADJUSTMENT WITH SEMI-AUTOMATIC
CHOKE AND LIMITED IDLE MIXTURE SCREW.

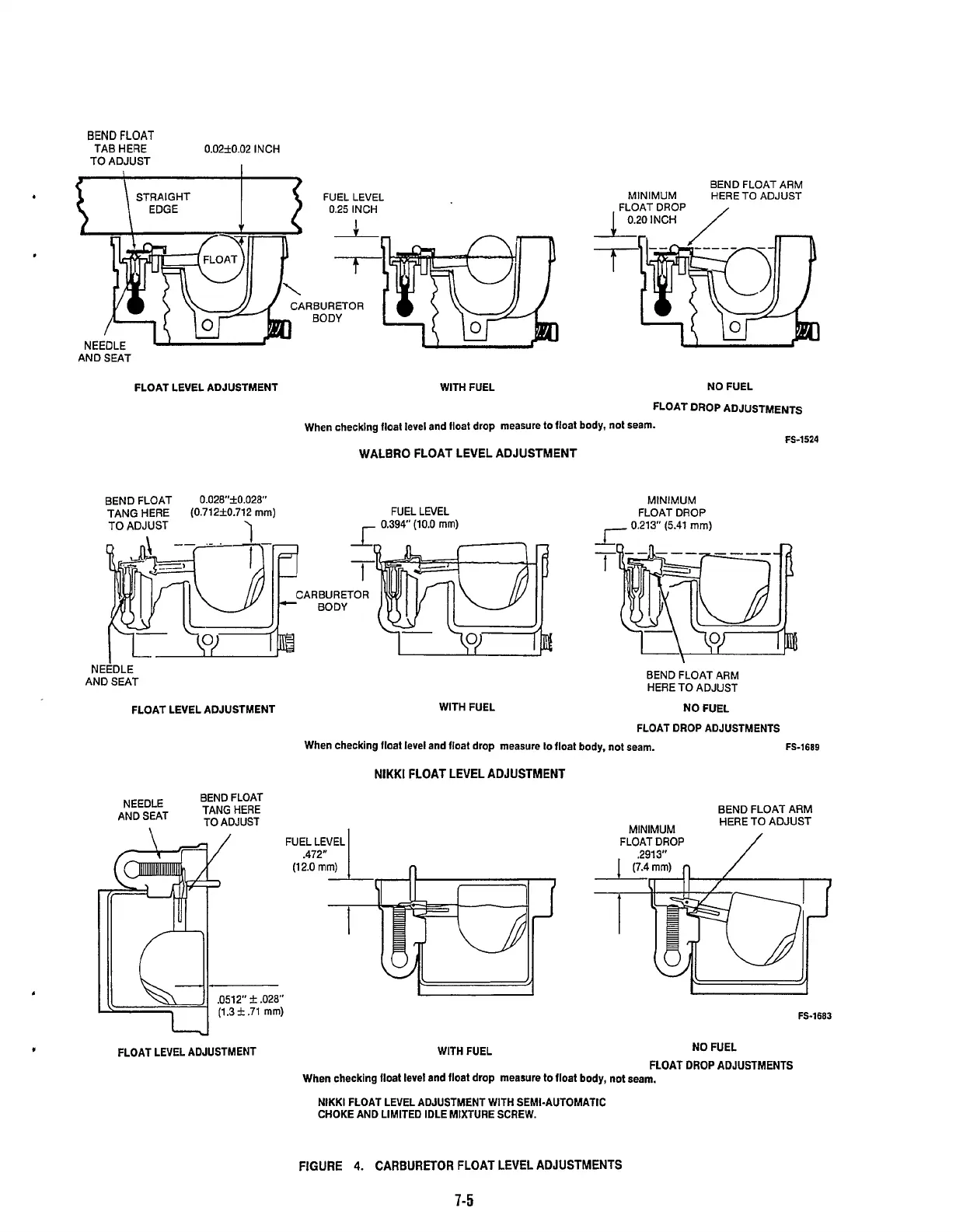

FIGURE 4. CARBURETOR FLOAT LEVEL ADJUSTMENTS
7-5
