PUMP
COVER
GASKET
\
\
I
ASSEMBLY SCREWS
REED
VALVE
FS-1684

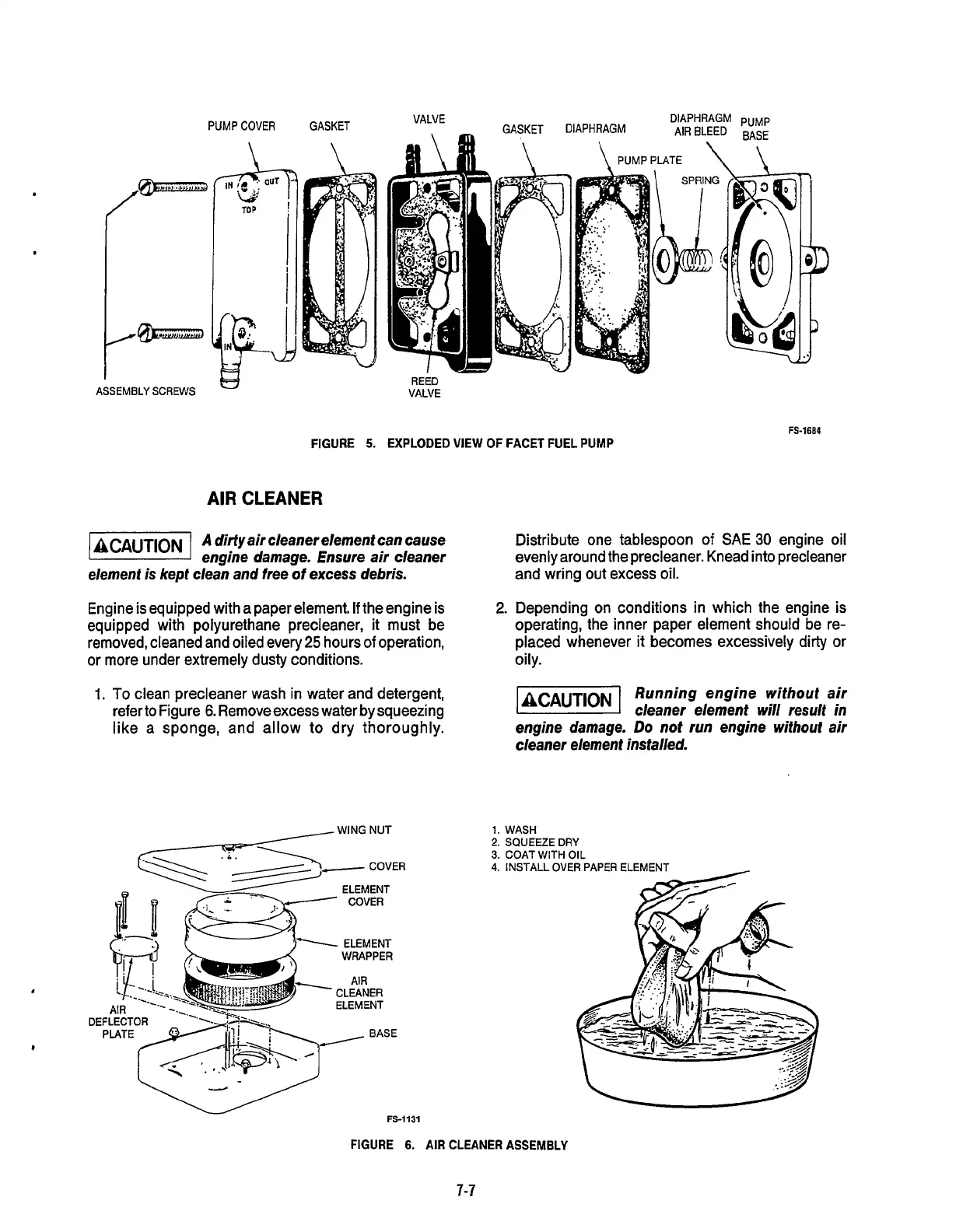

FIGURE
5.
EXPLODED VIEW OF FACET FUEL
PUMP
AIR
CLEANER
(BCAUTIONI
A
dirty air cleaner element can cause
engine damage. Ensure air cleaner
element
is
kept clean and free
of
excess debris.
Distribute one tablespoon
of
SAE
30
engine oil
evenly around the precleaner. Knead into precleaner
and wring out excess oil.
Engine is equipped with
a
paper element.
If
the engine is
equipped with polyurethane precleaner, it must be
removed, cleaned and oiled every
25
hours
of
operation,
or more under extremely dusty conditions.
1.
To
clean precleaner wash in water and detergent,
refer to Figure
6.
Remove excess water by squeezing
like a sponge, and allow
to
dry thoroughly.
2.
Depending on conditions in which the engine is
operating, the inner paper element should be re-
placed whenever it becomes excessively dirty or
oily.
ACAUT~ON
Running engine without air
D
cleaner element wi// result in
engine damage.
Do
not run engine without air
cleaner element installed.
WRAPPER
L
*
FS-1131
1.
WASH
2.
SQUEEZE
DRY
3.
COAT WITH
OIL
4.
INSTALL OVER PAPER ELE
FIGURE
6.
AIR CLEANER ASSEMBLY
7-7
