Onan NHE Service Manual

Supplement 940-1039
Date: 8-85
Insert with -
Ti NHE/NHEL Service Manual
Number: 940-0502
.
This supplement includes latest starter repair informa-
tion for models NHE/NHEL
RV gensets.

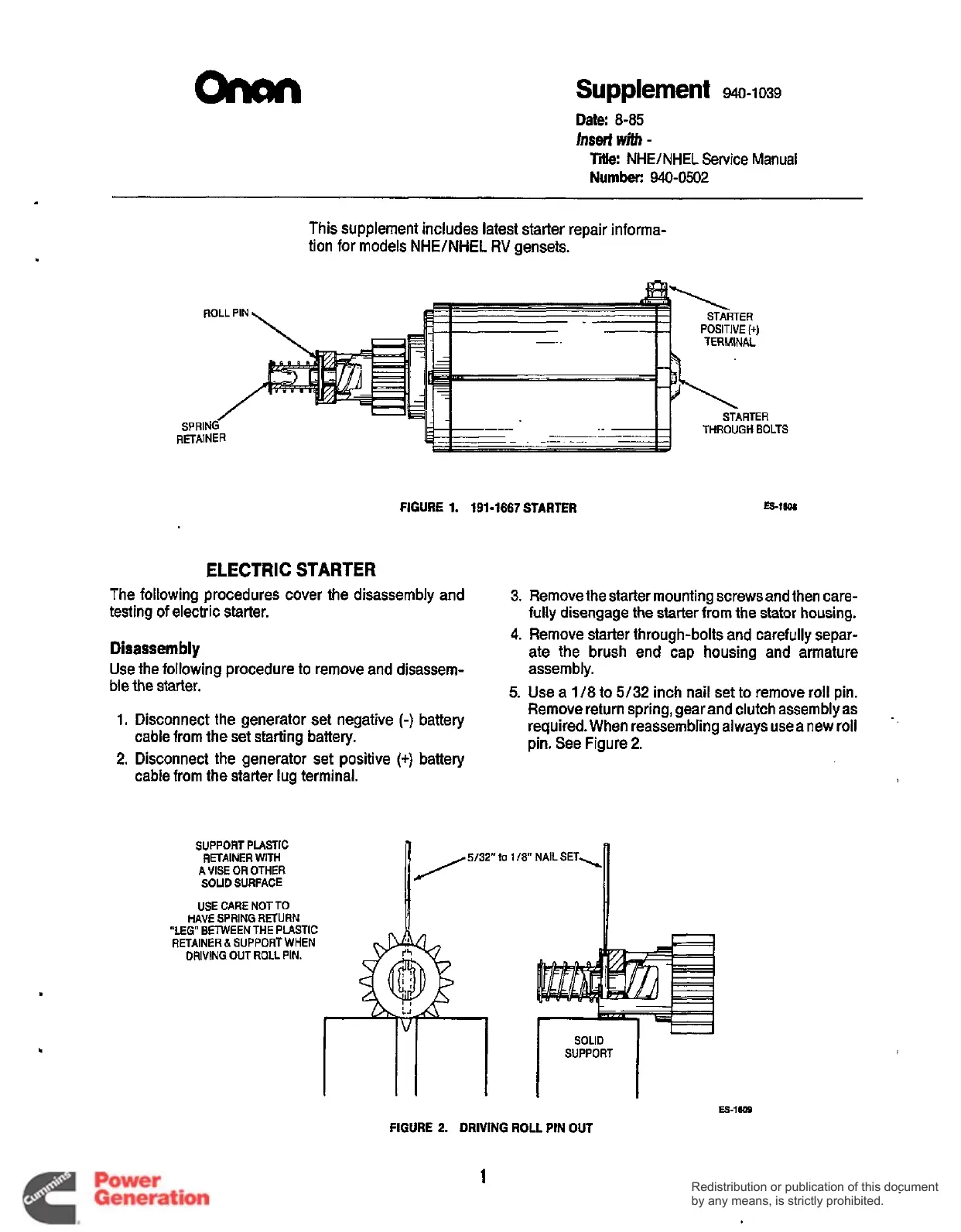

FIGURE 1. 191-1667 STARTER =16M
ELECTRIC STARTER
The following procedures cover the disassembly and
testing
of electric starter.
Disassembly
Use the following procedure to remove and disassem-
ble the starter.
1. Disconnect the generator set negative (-) battery
2. Disconnect the generator set positive
(+) battery
cable from the set starting battery.
cable from the starter lug terminal.
SUPPORT PLASTIC
RETAINER WITH
A VISE OR OTHER
SOUD SURFACE
USE CARE NOT TO
HAVE SPRING RETURN
~__ ~
RETAINER & SUPPORT WHEN
DRIVING OUT ROLL PIN.
3. Remove the starter mounting screws and then care-
fully disengage the starter from the stator housing.
4. Remove starter through-bolts and carefully separ-
ate the brush end cap housing and armature
assembly.
5. Use a 1 /8 to 5/32 inch nail set to remove roll pin.
Remove return spring, gear and clutch assembly as
required. When reassembling always usea new roll
pin. See Figure
2.
n
5/32" lo 118 NAIL SET,
"LEG" BETWEEN THE PLASTIC
SOLID
SUPPORT
FIGURE 2. DRIVING ROLL PIN OUT
1
