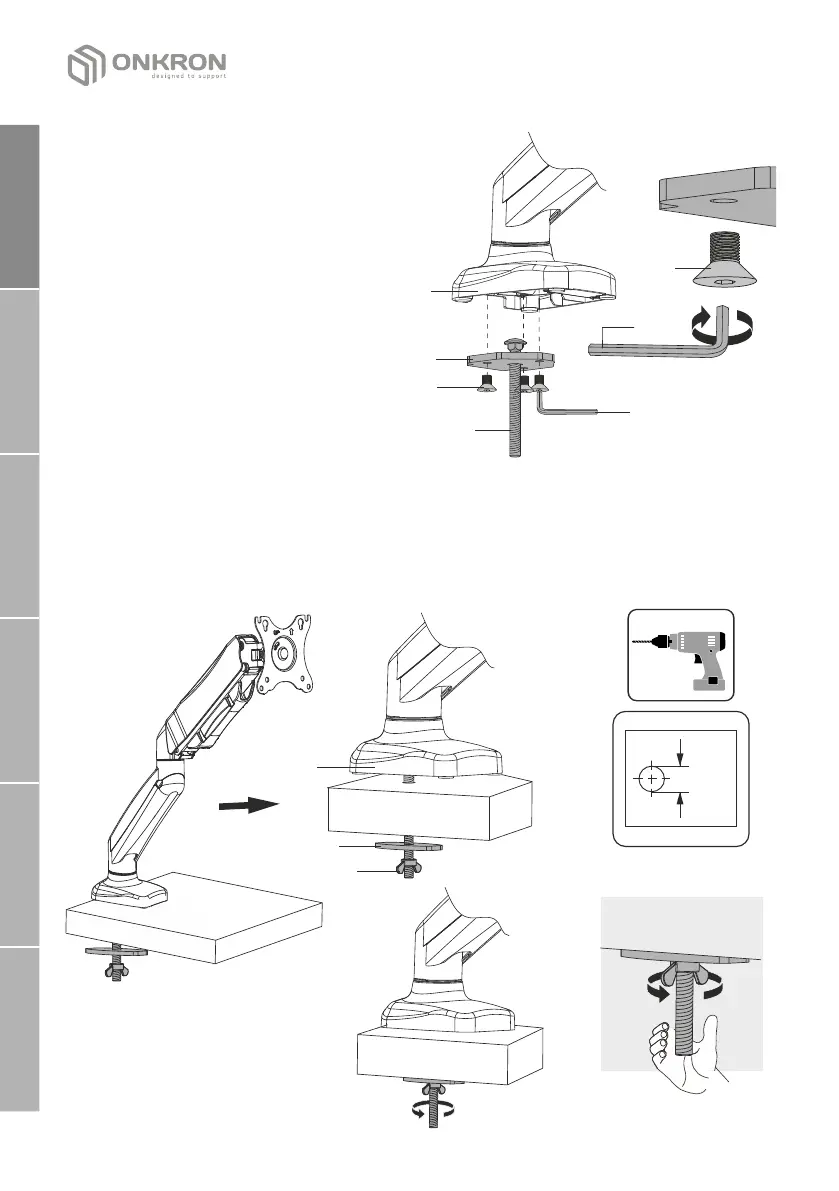

џ I n s t a l l t h e b o l t G i n t o t h e
triangular plate (E)
џ Fix the plate (E) to the base of the
bracket (A) with three screws (D)
using the key (I).
џ Drill a hole in the desk.
џ Install the bracket through the hole in the desktop and secure it to
the underside of the desktop with washer (H) and nut (F).
F
H
desk
A
Ø10-20 mm
Ø0.4"-0.78"
b) Through hole installation onto the desk:
desk
ATTENTION:
min hole diameter = 10 mm (0.4")in the desk
max hole diameter = 20 mm (0.78")in the desk
desk
desk
D
I
G
E
D
A
I
