3. Adjustment of the gas-liſt system

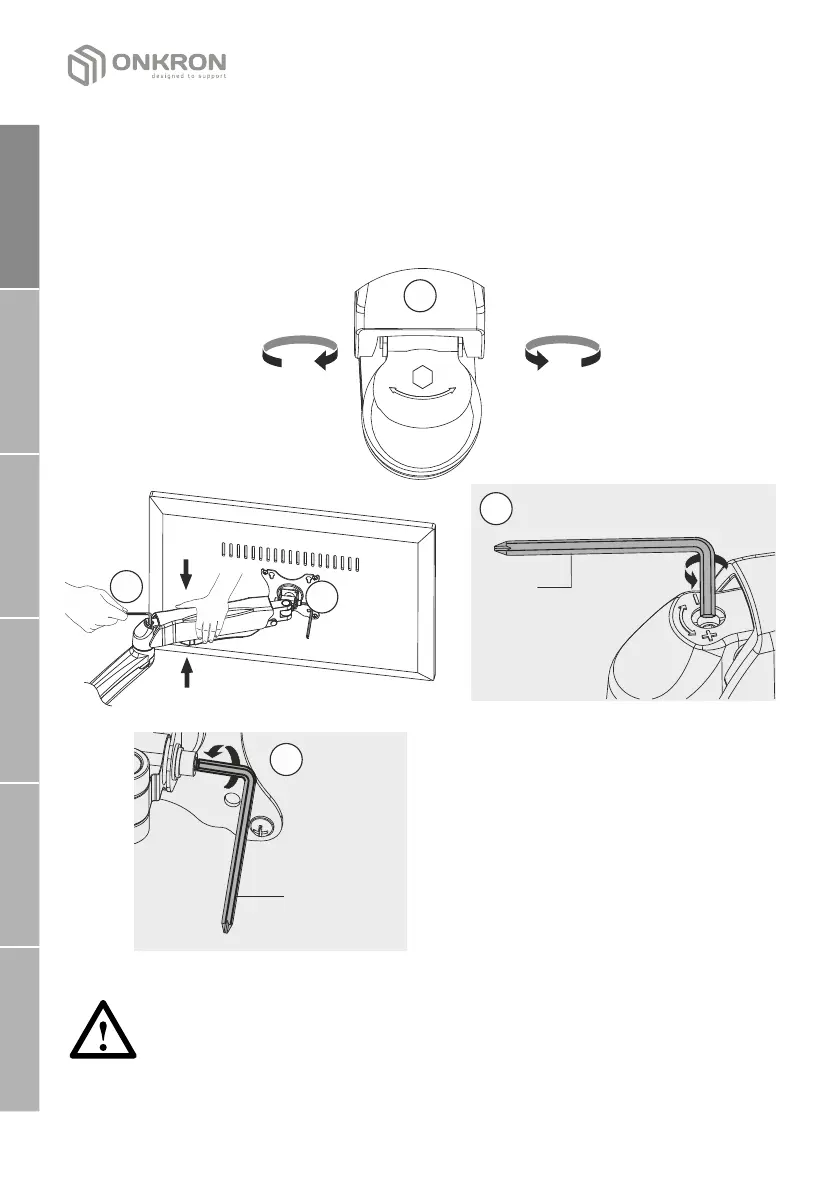

3.1 Adjust tension of the gas-liſt system weight of your screen. Turn the key to (+)
for heaver screen, or to (-) for lighter ones. Move the screen up and down, until it is
stable in any position you choose. The arm must be adjusted for each screen
individually. If the arm is falling down – turn to (+), if the arm is moving up – turn to
(-).
+
-
+
-
(-) (+)
3.1
4.2 Adjust tilt angle if necessary. You
may use key (J).
DO NOT OVERTIGHTEN! Overtightening may cause damage to your
screen and/ or the mount.
J
3.2
3.2
J
3.1
3.1
