Onkyo HT-R410 User Manual

37

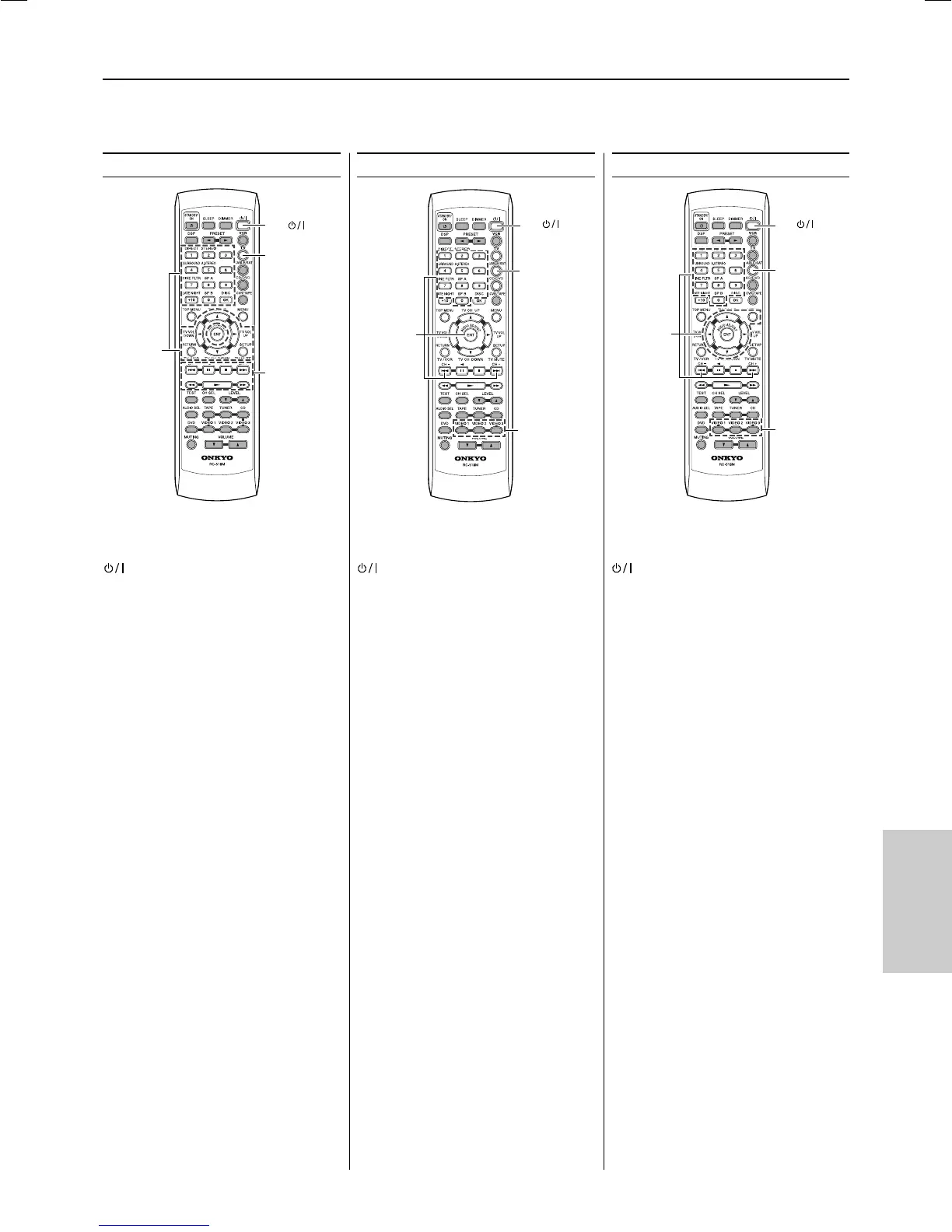

Using the remote controller with your other AV components
: Power On/Off.
1–9, 0 : Use to enter numeric values.
CH + : Changes the channel
upward.
CH – : Changes the channel
downward.
ENT : Confirm.
Note
Since you can only enter a Cable code or
Satellite code for the CABLE/SAT button,
you can use Cable mode or Satellite mode,
but not both.
Cable mode (CABLE/SAT) Satellite mode (CABLE/SAT)
: Power On/Off.
1–9, 0 : Use to enter numeric values.
MENU : Displays a menu.
5/∞/2/3 : Selects an item in a menu.
ENT : Confirm the selection.
CH + : Changes the preset channel
upward.
CH – : Changes the preset channel
downward.
Note
Since you can only enter a Cable code or
Satellite code for the CABLE/SAT button,
you can use Cable mode or Satellite mode,
but not both.
3. TV
operation
buttons
1. TV
TV mode (TV)
Control VCR
if appropriate
VCR code
has been
entered
: Power On/Off.
1–9, +10, 0 : Use to enter numeric values.
OK : Confirm.
TV CH UP 5 :
Changes the TV channel
upward.
TV CH DOWN ∞ :
Changes the TV channel
downward.
TV VOL UP 3 :
Increases the TV volume.
TV VOL DOWN 2 :
Decrease the TV volume.
TV/VCR : Switches the TV/VCR
inputs.
TV MUTE : Mutes the sound.
2.
3.
1. Input
selectors
2. CABLE/
SAT
4. CABLE
operation
buttons
3.
1. Input
selectors
2. CABLE/
SAT
4. Satellite
operation
buttons
You must enter the appropriate manufacturer’s
code (see page 33).
You must enter the appropriate manufacturer’s
code (see page 33).
You must enter the appropriate manufacturer’s
code (see page 33).

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
