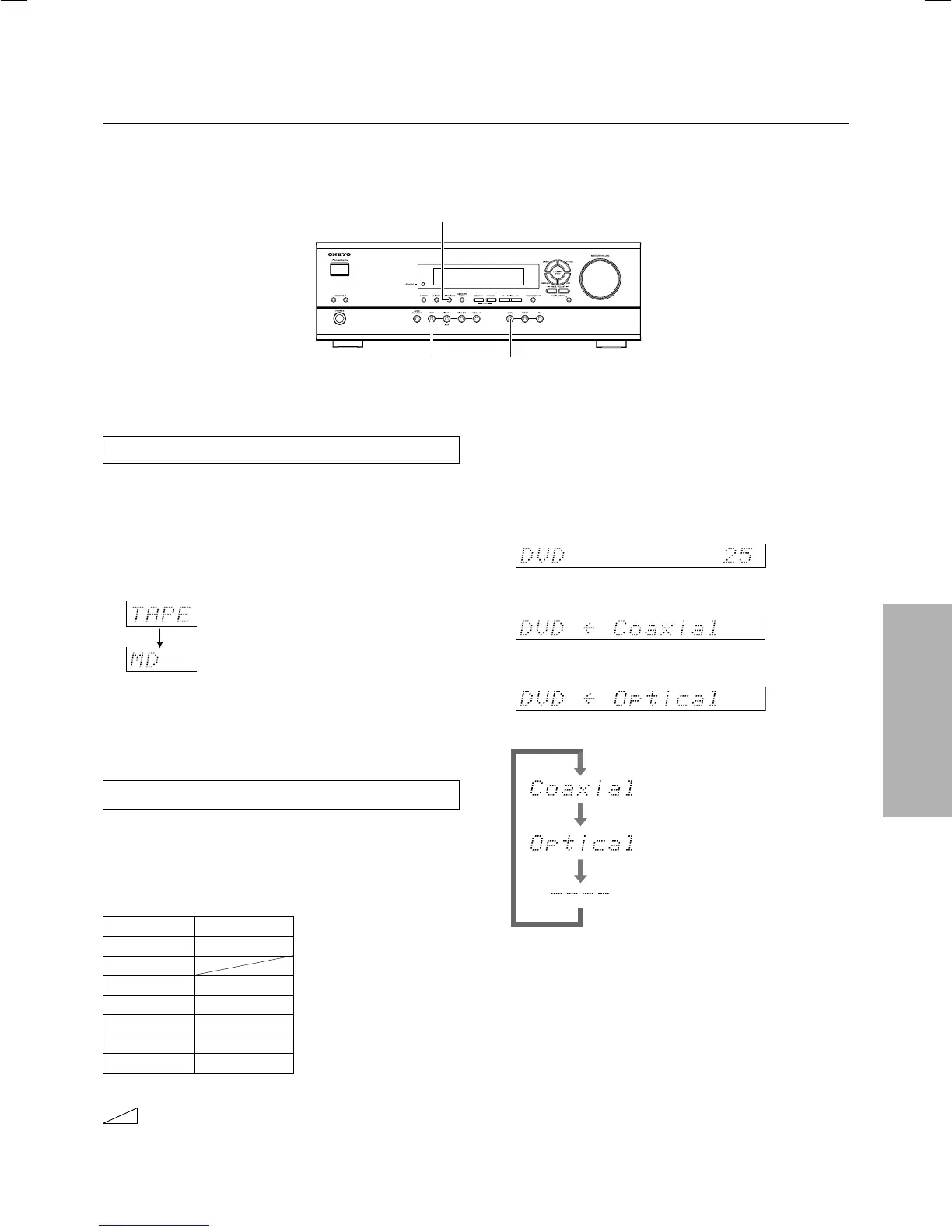

21
Switch the source from TAPE to MD
You can set the AV receiver to show MD when the TAPE source
is selected by pressing TAPE on the unit.
1 Press TAPE to select the input source.
2 Press and hold TAPE on the unit until the
display changes (for about 2 seconds).
To restore the display
Press and hold TAPE on the unit until the display changes (for
about 2 seconds).
Setting the digital inputs
The digital input terminal for each input source is pre-set, as
described in the table below. It is necessary to change the settings
if the components you connected differ from input sources default
settings.
Default setting
Input source Digital input
CD OPTICAL
TUNER
TAPE
VIDEO 3
VIDEO 2
VIDEO 1
DVD COAXIAL
: Available for digital input but not set in initial setting.
: Not available for digital input.
Changing the default settings according to
your connections
For example, follow the steps below to assign Optical to the
DVD device connected to the DIGITAL INPUT OPTICAL
jack.
1. Press DVD.
The DVD input is selected and DVD appears in the display.
Select if connected to DIGITAL
INPUT COAXIAL.
Select if connected to DIGITAL
INPUT OPTICAL.
Select if the input source is not from
a digital input jack.
2. Press DIGITAL INPUT.
The current DVD setting (Coaxial) appears.
3. Press DIGITAL INPUT repeatedly to select
Optical.
Pressing DIGITAL INPUT repeatedly will change the setting
as follows:
About three seconds after DVD Optical is selected, the
original display appears and the setting is completed.
If you have selected digital input, you can also select the input
signal format (refer to Setting the input signal format on page
26).
If equipment couldnt be connected in accordance with the default
settings, or your preferred settings differ from the default settings,
you can change the settings as described below.
DVD
TAPE
DIGITAL INPUT
