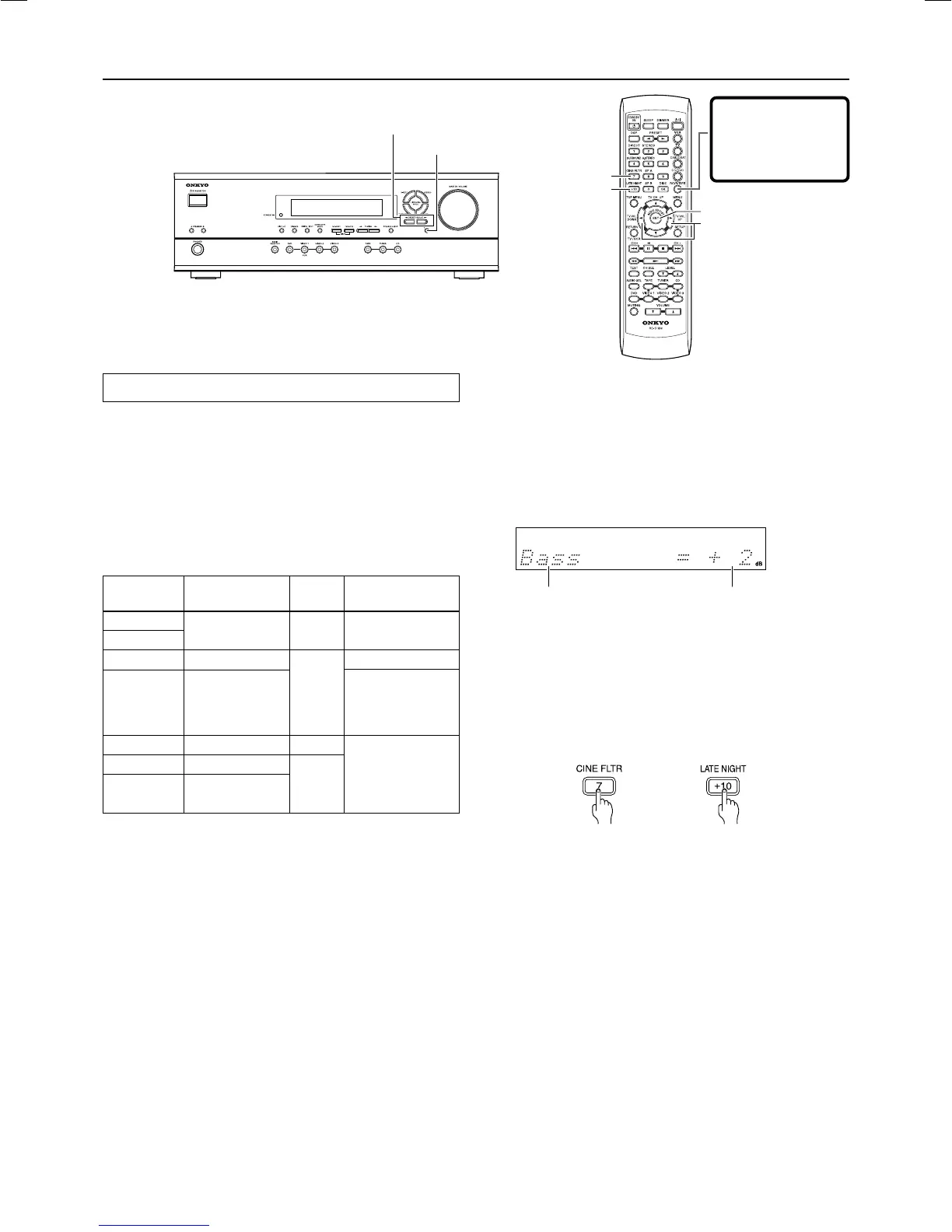

Using the audio adjust functions
Before operating the remote controller, press RCVR/TAPE.
These functions only work with speaker system A.
Audio Adjust provides various functions for adjusting the sound,
including several especially for use with Dolby Digital, DTS, and
Pro Logic II source.
The following table lists the Audio Adjust functions, their ranges
and default values. Function availability depends on the current
source and listening mode, as listed in the “The input source and
available listening mode” column. See page 29 for information on
listening modes.
Audio adjust function
AUDIO ADJUST
PRESET/ADJUST ™/£
AUDIO ADJUST
CINE FLTR
LATE NIGHT
ADJUST 2/3
1. Press AUDIO ADJUST (repeatedly) until the
item to be adjusted is displayed.
2. Press PRESET/ADJUST ™/£ on the unit or
ADJUST 2/3 on the remote controller to adjust
the item.
Refer to the right column for AUDIO ADJUST items and
settings.
Note
Cinema Filter and Late Night can also be adjusted from the
remote control.
Press the CINE FLTR or LATE NIGHT button to display the
current setting (On or Off). To change the current setting, press
the same button again.
Value or setting
Remote controller Remote controller
Function Range Default Supported
listening mode
Bass
–12 dB to +12 dB
0 dB
All modes except
Treble
in 2 dB steps Direct
Late Night Low, High, Off Dolby Digital
Cinema
Pro Logic II Movie
Filter On, Off
Off Dolby Digital
(Cine Fltr)
DTS
DTS Neo:6 Cinema
Panorama On, Off Off
Dimension 0, 1, 2, 3, 4, 5, 6
Pro Logic II Music
Center 0, 1, 2, 3, 4, 5, 6, 3
Width 7
Item
Before operating
the remote
control
Press RCVR/TAPE.

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
