20

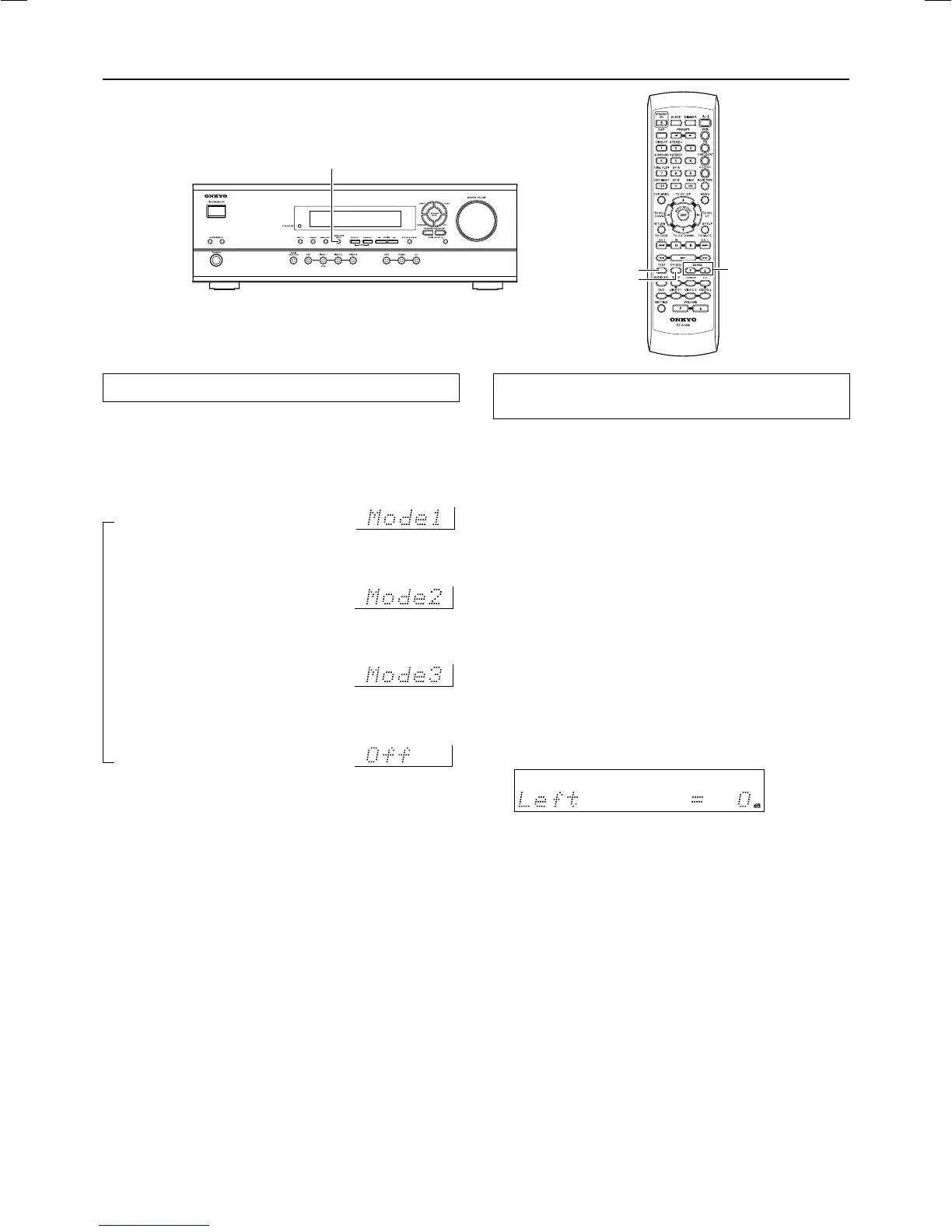

SUBWOOFER MODE
TEST
LEVEL 5/
CH SEL
Adjusting each speakers relative volume
balance Test tone
Adjust each speakers relative volume balance so that the volumes
of all speakers test tones sound equal at the listening position.
Adjust the volume to your normal listening level, prior to
commencing settings.
Note
You cannot adjust the volume balance while the muting function is
activated.
1. Press TEST on the remote controller.
Each speaker emits the test tone (pink noise) and the display
shows the speaker emitting the test tone.
2. Press CH SEL repeatedly to select the speaker,
then press LEVEL 5/ on the remote controller
to adjust the volume level.
When CH SEL is pressed repeatedly, each speaker produces the
test tone (pink noise) in the following order: Left Center
Right Surr Right Surr Left Subwoofer.
The volume level can be adjusted between 12dB and +12dB.
Speaker setup
Notes
No test tone will be emitted from the speaker which is not
included in the speaker configuration on page 18 even if it
is actually connected.
No test tone will be emitted from the subwoofer when the
subwoofer mode is set to Subwoofer Off.
Even when CH SEL is not pressed, the test tone will move
to the next speaker in 2 seconds.
3. When you have completed the adjustment by
repeating step 2, press TEST.
The test tone stops and the normal display resumes.
Note
Even if you dont press TEST, the test tone will stop after
2 minutes.
Setting the subwoofer mode
Press SUBWOOFER MODE on the unit.
With the first press of the button, you can check the present setting.
Then each press of the button changes the subwoofer mode as
follows (a tip on how to select the right subwoofer mode is in
parentheses):
Subwoofer Mode 1 (Default)
(To output the low frequencies of all
channels from the subwoofer.)
Subwoofer Mode 2
(To output the low frequencies of the center and surround
channels from the subwoofer.)
Subwoofer Mode 3
(To output only the LFE channel* of a 5.1-channel source from
the subwoofer.)
Subwoofer Off
(When no subwoofer is connected or when a subwoofer is
connected but not used.)
* LFE channel: The channel recording the LFE (Low Frequency
Effects).
The normal display resumes in three seconds.
Note
When the subwoofer mode is set to Mode 2 or Mode 3 and audio is
reproduced in the Stereo mode, the subwoofer may not output
audio from certain sources (2 channel-Dolby Digital/DTS source
etc.).

Other manuals for Onkyo HT-R410

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo HT-R410 and is the answer not in the manual?

Onkyo HT-R410 Specifications

Amplifier Section IconAmplifier Section
Power Output Front L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms230 watts × 2
Dynamic Power Output at 4 ohms170 watts × 2
Dynamic Power Output at 8 ohms115 watts × 2
Input and Output Impedance IconInput and Output Impedance
Digital Input Optical0.5 Vp-p, 75 ohms
Digital Input Coaxial0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)200 mV, 47 kohms
Multichannel Input (SUBWOOFER)36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)1 V, 470 ohms
Tuner Section IconTuner Section
FM Tuning Range87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio2.0 dB
FM Image Rejection Ratio40 dB
FM IF Rejection Ratio90 dB
FM Signal-to-Noise Ratio Mono76 dB, IHF
FM Signal-to-Noise Ratio Stereo70 dB, IHF
FM Alternate Channel Attenuation55 dB, IHF, ±400 kHz
FM Selectivity50 dB (DIN)
FM AM Suppression Ratio50 dB
FM Total Harmonic Distortion Mono0.2%
FM Total Harmonic Distortion Stereo0.3%
FM Frequency Response30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz45 dB
FM Stereo Separation at 100 Hz-10 kHz30 dB
AM Tuning Range530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity30 µV
AM Image Rejection Ratio40 dB
AM IF Rejection Ratio40 dB
AM Signal-to-Noise Ratio40 dB
AM Total Harmonic Distortion0.7%
General Specifications IconGeneral Specifications
Power SupplyAC 120 V, 60 Hz
Power Consumption4.7 A
Dimensions (W × H × D)17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)435 × 150 × 365 mm
Weight19.0 lbs., 8.6 kg
