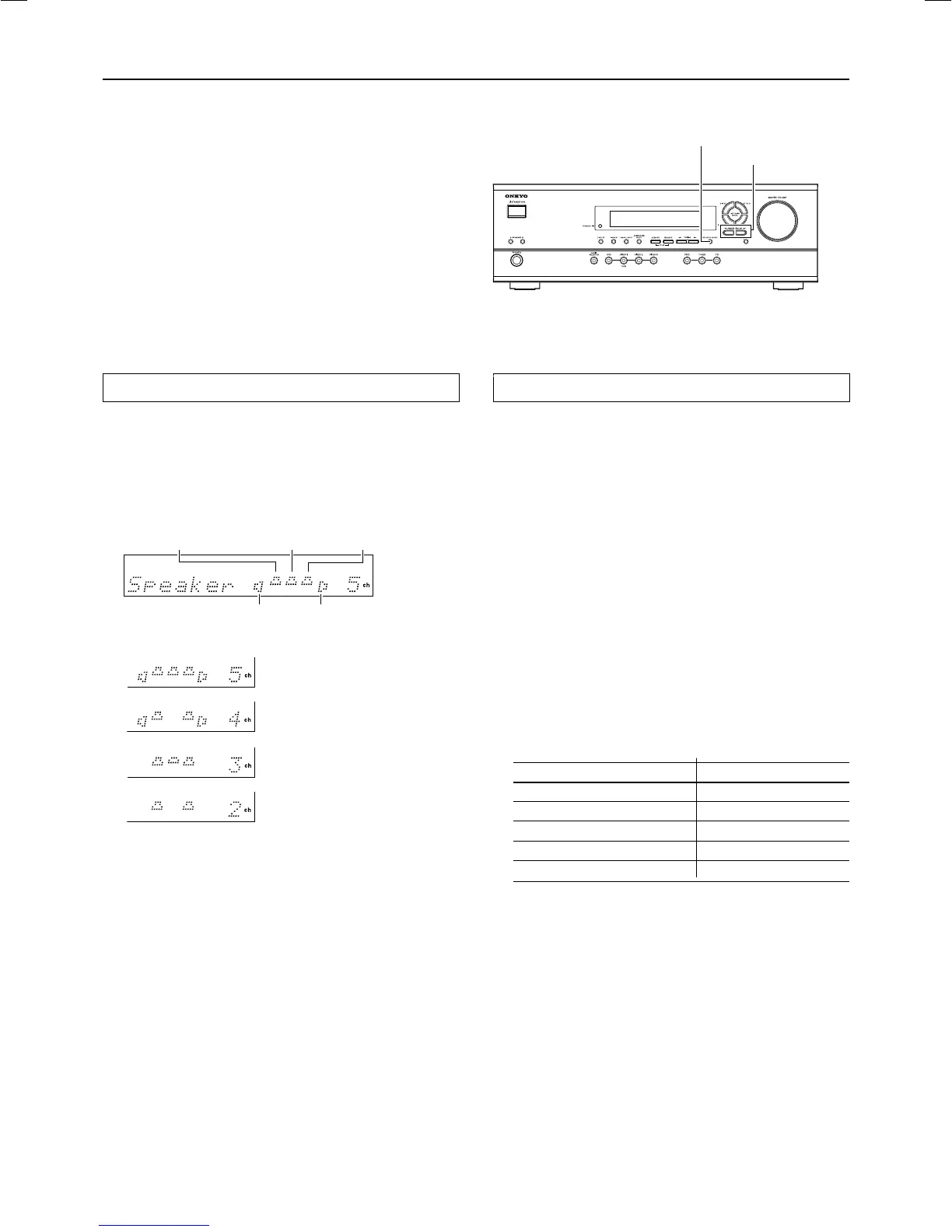

18
Speaker setup
Front left
Front rightCenter
Surround left Surround right
You need to set up the speaker configuration for the speaker system
A (see page 12).
(There is no speaker configuration setup for the speaker system B.)
It is not necessary to set the parameters again once you have
completed the setup unless you change the speaker configuration.
Notes
Speaker setup cannot be done if;
Headphones are connected (see page 24),
The speaker system B is on (see page 24), or
–“Multi ch is selected with AUDIO SELECTOR button.
Speaker 5ch (Default)
Speaker 4ch
Speaker 3ch
Speaker 2ch
PRESET/ADJUST /£
SPEAKER ADJUST
Display and number of speaker channels
Notes
The listening mode will automatically change according to the
number of channels if you set the number of channels.
Speaker adjust mode will be cancelled if the next operation is
not performed within 8 seconds.
Setting the crossover frequency
To reproduce low frequencies between 60 Hz and 150 Hz in an
optimum condition, set the crossover frequency according to the
low-frequency reproduction capabilities of the subwoofer and
other speakers (front, center and surround).
The default setting is 80 Hz.
Home theater in a box (HT-S660)
It is not neccessary to change this setting when using the supplied
speaker system.
If youre not using a subwoofer, bass sounds are output by the other
speakers and this setting has no effect.
1. Press SPEAKER ADJUST twice.
The current setting is displayed.
2. Press PRESET/ADJUST /£ repeatedly to
select the crossover frequency.
Select from 60, 80, 100, 120 and 150 Hz.
The following table lists the crossover frequency you should
choose depending on the diameter of your front speakers.
Front speaker diameter Crossover frequency
Larger than 8 inch (20 cm) 60 Hz
6.4 8 inch (16 20 cm) 80 Hz (default)
4.8 6.4 inch (12 16 cm) 100 Hz
3.6 5.2 inch (9 13 cm) 120 Hz
Less than 3.6 inch (9 cm) 150 Hz
If you want more accurate setting, refer to the instruction
manuals of the speakers and perform the setting according to
their frequency response. Also listen to the actual sound and set
to the high position (120 or 150 Hz) if you feel that the sound
from the subwoofer is not enough or to the low position (60 or
80 Hz) if you feel that the sound is loud.
Selecting the number of speaker channels
1. Press SPEAKER ADJUST once.
When the button is pressed, the current speaker setup will be
displayed.
2. Press PRESET/ADJUST /£ repeatedly to
select the number of channels.

Other manuals for Onkyo HT-R410

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo HT-R410 and is the answer not in the manual?

Onkyo HT-R410 Specifications

Amplifier Section IconAmplifier Section
Power Output Front L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms230 watts × 2
Dynamic Power Output at 4 ohms170 watts × 2
Dynamic Power Output at 8 ohms115 watts × 2
Input and Output Impedance IconInput and Output Impedance
Digital Input Optical0.5 Vp-p, 75 ohms
Digital Input Coaxial0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)200 mV, 47 kohms
Multichannel Input (SUBWOOFER)36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)1 V, 470 ohms
Tuner Section IconTuner Section
FM Tuning Range87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio2.0 dB
FM Image Rejection Ratio40 dB
FM IF Rejection Ratio90 dB
FM Signal-to-Noise Ratio Mono76 dB, IHF
FM Signal-to-Noise Ratio Stereo70 dB, IHF
FM Alternate Channel Attenuation55 dB, IHF, ±400 kHz
FM Selectivity50 dB (DIN)
FM AM Suppression Ratio50 dB
FM Total Harmonic Distortion Mono0.2%
FM Total Harmonic Distortion Stereo0.3%
FM Frequency Response30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz45 dB
FM Stereo Separation at 100 Hz-10 kHz30 dB
AM Tuning Range530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity30 µV
AM Image Rejection Ratio40 dB
AM IF Rejection Ratio40 dB
AM Signal-to-Noise Ratio40 dB
AM Total Harmonic Distortion0.7%
General Specifications IconGeneral Specifications
Power SupplyAC 120 V, 60 Hz
Power Consumption4.7 A
Dimensions (W × H × D)17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)435 × 150 × 365 mm
Weight19.0 lbs., 8.6 kg
