22

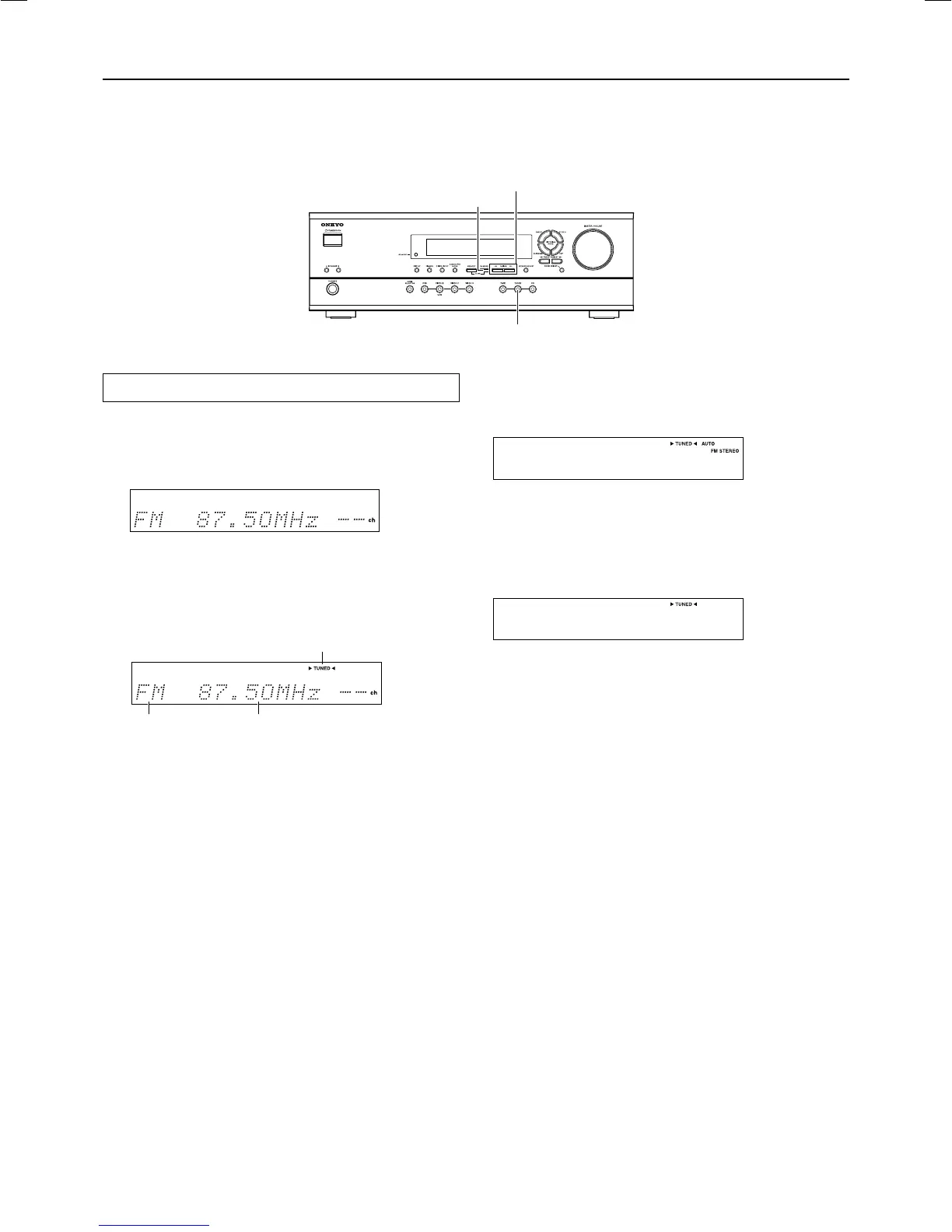

Listening to the radio
Tuning into a radio station
1. Press TUNER.
The selected band appears in the display. Each time you press
the button, the band changes as follows: AM FM.
e.g. When FM is selected.
2. Using the TUNING /£ buttons on the front
panel, tune into the station you desire.
When you tune into a radio station, TUNED indicator appears
in the display. If you tune into an FM station in stereo, then FM
STEREO indicator lights up.
The tuner frequency changes in 100 Hz increments for FM
and 10 kHz increments for AM.
When tuning into FM stations, you can press the TUNING
n/N buttons continuously for more then 0.5 seconds to
scan for an FM station in the direction of the button you
pressed (FM auto tuning mode). After you release the
button and a station is received in stereo, the scanning
stops.
Appears when a broadcast is received.
Tuning in a weak frequency (only for FM stations)
When you tune in a stereo FM station, the FM STEREO indicator
lights up if the signal is sufficiently strong.
There are two ways to select radio stations:
Manual tuning
Presetting radio stations then selecting the preset channels
If the signal is weak, you may not be able to tune to the station. In
this case, press FM MODE. The FM STEREO indicator and
AUTO indicator goes off.
Then select the station to which you want to listen.
(At this time, the station will be in mono and interstation noise will
be heard.)
TUNER
TUNING /£
FM MODE
Band
Frequency

Other manuals for Onkyo HT-R410

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo HT-R410 and is the answer not in the manual?

Onkyo HT-R410 Specifications

Amplifier Section IconAmplifier Section
Power Output Front L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms230 watts × 2
Dynamic Power Output at 4 ohms170 watts × 2
Dynamic Power Output at 8 ohms115 watts × 2
Input and Output Impedance IconInput and Output Impedance
Digital Input Optical0.5 Vp-p, 75 ohms
Digital Input Coaxial0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)200 mV, 47 kohms
Multichannel Input (SUBWOOFER)36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)1 V, 470 ohms
Tuner Section IconTuner Section
FM Tuning Range87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio2.0 dB
FM Image Rejection Ratio40 dB
FM IF Rejection Ratio90 dB
FM Signal-to-Noise Ratio Mono76 dB, IHF
FM Signal-to-Noise Ratio Stereo70 dB, IHF
FM Alternate Channel Attenuation55 dB, IHF, ±400 kHz
FM Selectivity50 dB (DIN)
FM AM Suppression Ratio50 dB
FM Total Harmonic Distortion Mono0.2%
FM Total Harmonic Distortion Stereo0.3%
FM Frequency Response30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz45 dB
FM Stereo Separation at 100 Hz-10 kHz30 dB
AM Tuning Range530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity30 µV
AM Image Rejection Ratio40 dB
AM IF Rejection Ratio40 dB
AM Signal-to-Noise Ratio40 dB
AM Total Harmonic Distortion0.7%
General Specifications IconGeneral Specifications
Power SupplyAC 120 V, 60 Hz
Power Consumption4.7 A
Dimensions (W × H × D)17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)435 × 150 × 365 mm
Weight19.0 lbs., 8.6 kg
