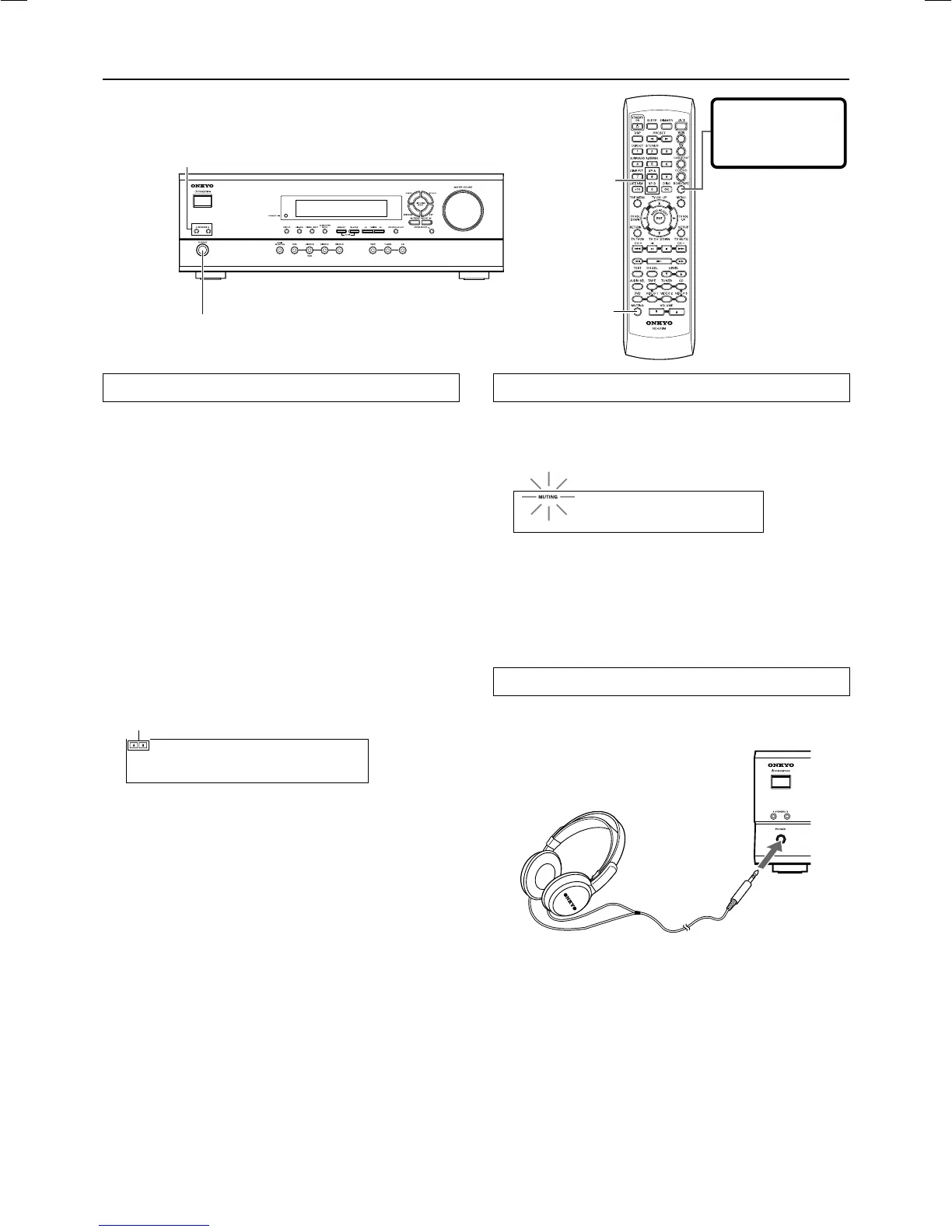

24
MUTING
SP A/SP B
SPEAKERS A/B
Muting the sound (remote controller only)
Press MUTING.
The MUTING indicator flashes in the display during the muting
mode.
To restore the sound, press MUTING again.
Tip
If you turn off the unit during muting, and turn it on again, the
sound will be restored.
Listening through headphones
Connect the plug of the stereo headphones to the PHONES jack on
the AV Receiver.
Turning on/off the speaker system A/B
You can turn on or off the speaker systems connected to the speaker
system A and speaker system B connectors individually.
Before operating the remote controller, press RCVR/TAPE.
Press SPEAKER A on the unit or SP A on the
remote controller to turn on or off the speaker
system A.
Press SPEAKER B on the unit or SP B on the
remote controller to turn on or off the speaker
system B.
Note
If you turn on the speaker system B, the speaker system A also
reproduces stereo sound automatically. (When a listening mode
other than Direct is selected, the listening mode is set to
Stereo.)
The lit (speaker) A/B indicators indicate the
corresponding speaker systems are on.
Various functions common to all the sources
Notes
The speakers will not reproduce sound while headphones are
connected.
When a listening mode other than Direct is selected, the
listening mode is set to Stereo after connecting the
headphones to the PHONES jack. When you disconnect the
headphones, the listening mode returns to the previous mode.
When the multi channel input is selected, only the sound of
front L/R channel is heard. Press AUDIO SELECTOR (or
AUDIO SEL) to select a mode other than Multich.
PHONES jack
Before operating
the SP A/SP B
Press RCVR/TAPE.
