Onkyo HT-R410 User Manual

14

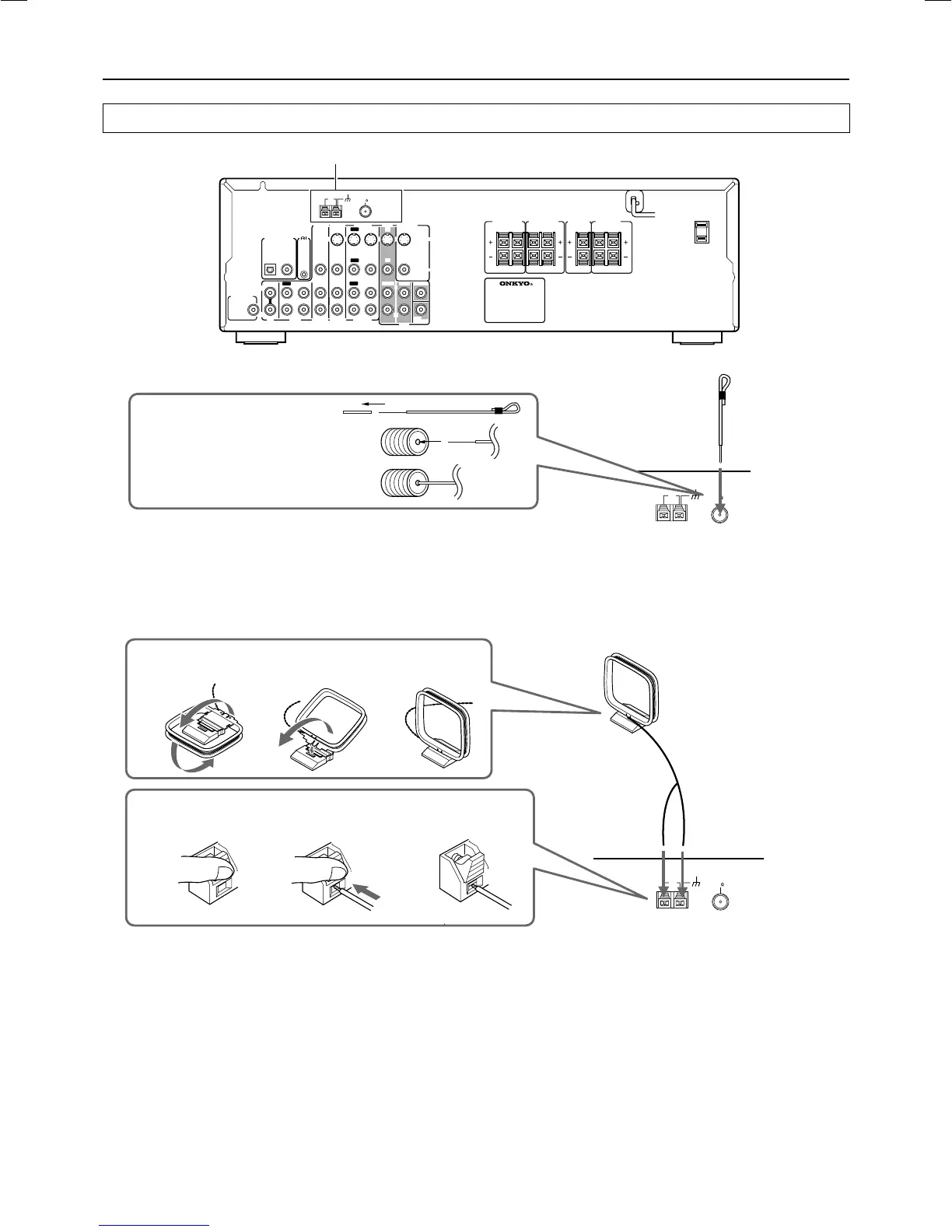

Connecting the supplied FM and AM indoor antennas
Connecting antennas
FM indoor
antenna
Note
Insert one end of the AM antenna cord to either of the AM antenna connectors and the other end to the other connector. There is no difference
between one end of the AM antenna cord and the other end, unlike the speaker cables which have positive and negative poles.
Adjusting the position of the AM indoor antenna
The AM loop antenna is for indoor use only. Set it in the direction and position where you receive signals clearly. Put it as far away as
possible from the HT-R410, televisions, speaker cables, and power cords.
When reception is not satisfactory with the attached AM loop antenna alone, connection of an outdoor antenna is recommended.
AM indoor antenna
Insert into the
hole.
Rotate the outer frame
of the antenna.
Extend the
antenna cord.
Press and hold up
the lever.
Insert the end of the
cord.
Release the lever to
secure the connection.
REMOTE
CONTROL
RLRL
ININ
IN
IN
IN
COAXI AL
OPTICAL
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
VIDEO 2
VIDEO 1
OUT
IN
IN
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2VIDEO 3
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
FRONT
SPEAKERS A
FRONT
SPEAKERS B
L
R
IN
VIDEO 3
RL
SURROUND
SPEAKERS
CENTER
SPEAKER
L
R
AC OUTLET
ANTENNA
FM
75
AM
SUBWOOFER
PRE OUT
ANTENNA
Adjusting the position of the FM indoor antenna
The FM indoor antenna is for indoor use only. During use, extend the antenna and move it in various directions until the clearest signal is
received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion.
If the reception is not very clear with the attached FM indoor antenna, the use of an outdoor antenna is recommended.
ANTENNA
FM
75
AM
1 Strip away the insulation from
the end of the cord.
2 Fully insert the stripped end of
the cord.
ANTENNA
FM
75
AM

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
