Onkyo HT-R410 User Manual

4
Features
Amplifier Features
•5 × 100 W/Channel @ 8Ω, 20–20 kHz, 0.08% THD
• WRAT-Wide Range Amplifier Technology
• Optimum Gain Volume Circuitry
• DTS, Dolby Digital, Dolby Pro Logic II
• CinemaFILTER
• Non-Scaling Configuration
• A-Form–Auto Format Sensing
• Linear PCM 96 kHz/24-bit D/A Converters
• Advanced 24-bit DSP Chips
• 3 S-Video Inputs/1 Output
• 2 Digital Inputs (Optical/Coaxial)
• Subwoofer Pre Out
• Dot Matrix FL Display
• Crossover Adjustment (60/80/100/120/150 Hz)
• Color-Coded Speaker Posts
FM/AM Tuner Features
• 30 FM/AM random presets
• FM auto tuning
• FM indoor antenna supplied
• AM indoor antenna supplied
* Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
** “DTS” and “DTS Digital Surround” are trademarks of Digital Theater
Systems, Inc.
1. Recording Copyright
Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.
2. AC Fuse
The fuse is located inside the chassis and is not user-serviceable. If
power does not come on, contact your Onkyo authorized service
station.
3. Care
From time to time you should wipe the front and rear panels and the
cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a
weak solution of mild detergent and water, wring it out dry, and
wipe off the dirt. Following this, dry immediately with a clean
cloth. Do not use rough material, thinner, alcohol or other chemical
solvents or cloths since these could damage the finish or remove the
panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the area
where this unit will be used meets the required voltage (AC 120 V,
60 Hz) written on the rear panel.
Memory Preservation
This unit does not require memory preservation batteries.
A built-in memory power backup system preserves the contents
of memory during power failures and even when the power cord
is unplugged.
The power cord must be plugged in order to charge the backup
system. The memory preservation period after the unit has been
turned off varies depending on climate and placement of the
unit. On average, memory contents are protected over a period
of a few weeks after the time the unit has been turned off. This
period is shorter when the unit is exposed to a very humid
climate.
Precautions

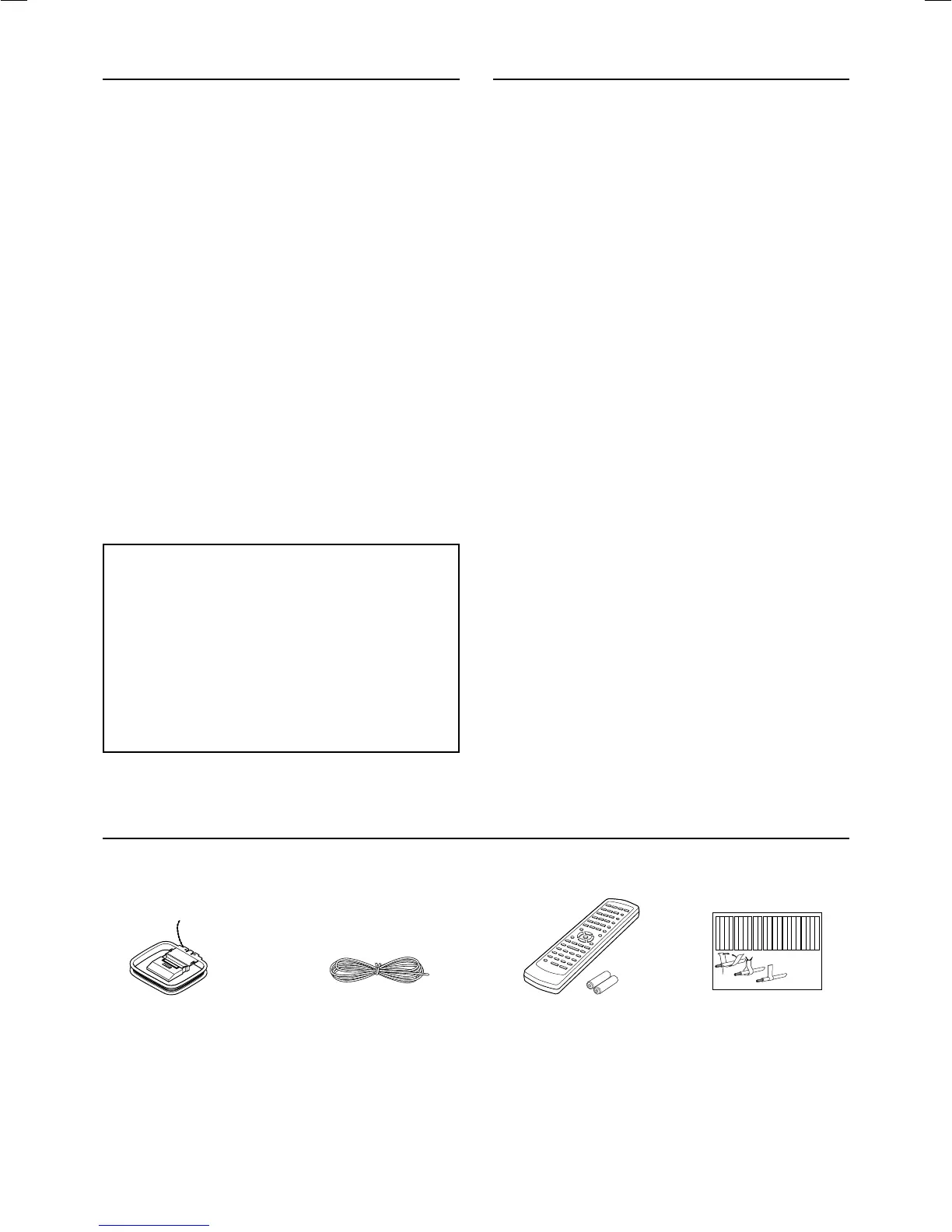

Supplied accessories
Check that the following accessories are supplied with the HT-R410.
AM loop antenna × 1 FM indoor antenna × 1 Remote controller × 1
Batteries (AA) × 2
Speaker cable label × 1
Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Surround
Right
Surround
Right
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Front Left
Front Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Front Right
Front Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Surround Right
Surround Right
Center Center
Center
Center
Surround
Left
Surround
Left
Surround Left
Surround Left
Surround Back Right
Surround Back Right
Zone 2 Right
Zone 2 Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Surround Back Left
Surround Back Left
Zone 2 Left
Zone 2 Left
1
2
3
Speaker Cable
The alphabet displayed at the end of the product name found in catalogs and on the packages represents the color of this receiver. Though the
color varies, the specifications and operations are the same.

Onkyo HT-R410 Specifications

Amplifier Section

Power Output Front L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Power Output Center Speaker	100 Watts min. RMS at 8 ohms, 20-20, 000 Hz, 0.08% THD
Power Output Surround L/R Speakers	100 Watts per channel min. RMS at 8 ohms 2 channel driven, 20-20, 000 Hz, 0.08% THD
Dynamic Power Output at 3 ohms	230 watts × 2
Dynamic Power Output at 4 ohms	170 watts × 2
Dynamic Power Output at 8 ohms	115 watts × 2

Input and Output Impedance

Digital Input Optical	0.5 Vp-p, 75 ohms
Digital Input Coaxial	0.5 Vp-p, 75 ohms
Line Input (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 47 kohms
Multichannel Input (DVD FRONT L/C/R, SURR L/R)	200 mV, 47 kohms
Multichannel Input (SUBWOOFER)	36 mV, 47 kohms
Output Level Rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
Output Level Pre out (SUBWOOFER)	1 V, 470 ohms

Tuner Section

FM Tuning Range	87.5-108.0 MHz (100 kHz steps)
FM Usable Sensitivity Mono	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM Usable Sensitivity Stereo	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM 50 dB Quieting Sensitivity Mono	17.2 dBf, 2.0 µV (75 ohms)
FM 50 dB Quieting Sensitivity Stereo	37.2 dBf, 20.0 µV (75 ohms)
FM Capture Ratio	2.0 dB
FM Image Rejection Ratio	40 dB
FM IF Rejection Ratio	90 dB
FM Signal-to-Noise Ratio Mono	76 dB, IHF
FM Signal-to-Noise Ratio Stereo	70 dB, IHF
FM Alternate Channel Attenuation	55 dB, IHF, ±400 kHz
FM Selectivity	50 dB (DIN)
FM AM Suppression Ratio	50 dB
FM Total Harmonic Distortion Mono	0.2%
FM Total Harmonic Distortion Stereo	0.3%
FM Frequency Response	30 Hz-15 kHz, ±1.0 dB
FM Stereo Separation at 1 kHz	45 dB
FM Stereo Separation at 100 Hz-10 kHz	30 dB
AM Tuning Range	530-1, 710 kHz (10 kHz steps)
AM Usable Sensitivity	30 µV
AM Image Rejection Ratio	40 dB
AM IF Rejection Ratio	40 dB
AM Signal-to-Noise Ratio	40 dB
AM Total Harmonic Distortion	0.7%

General Specifications

Power Supply	AC 120 V, 60 Hz
Power Consumption	4.7 A
Dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-3/8”
Dimensions in mm (W × H × D)	435 × 150 × 365 mm
Weight	19.0 lbs., 8.6 kg
