Connectors included in console server
The ACM7000, CM7100 and IM7200 families have the Cisco pinout by default and ship with cross-over /

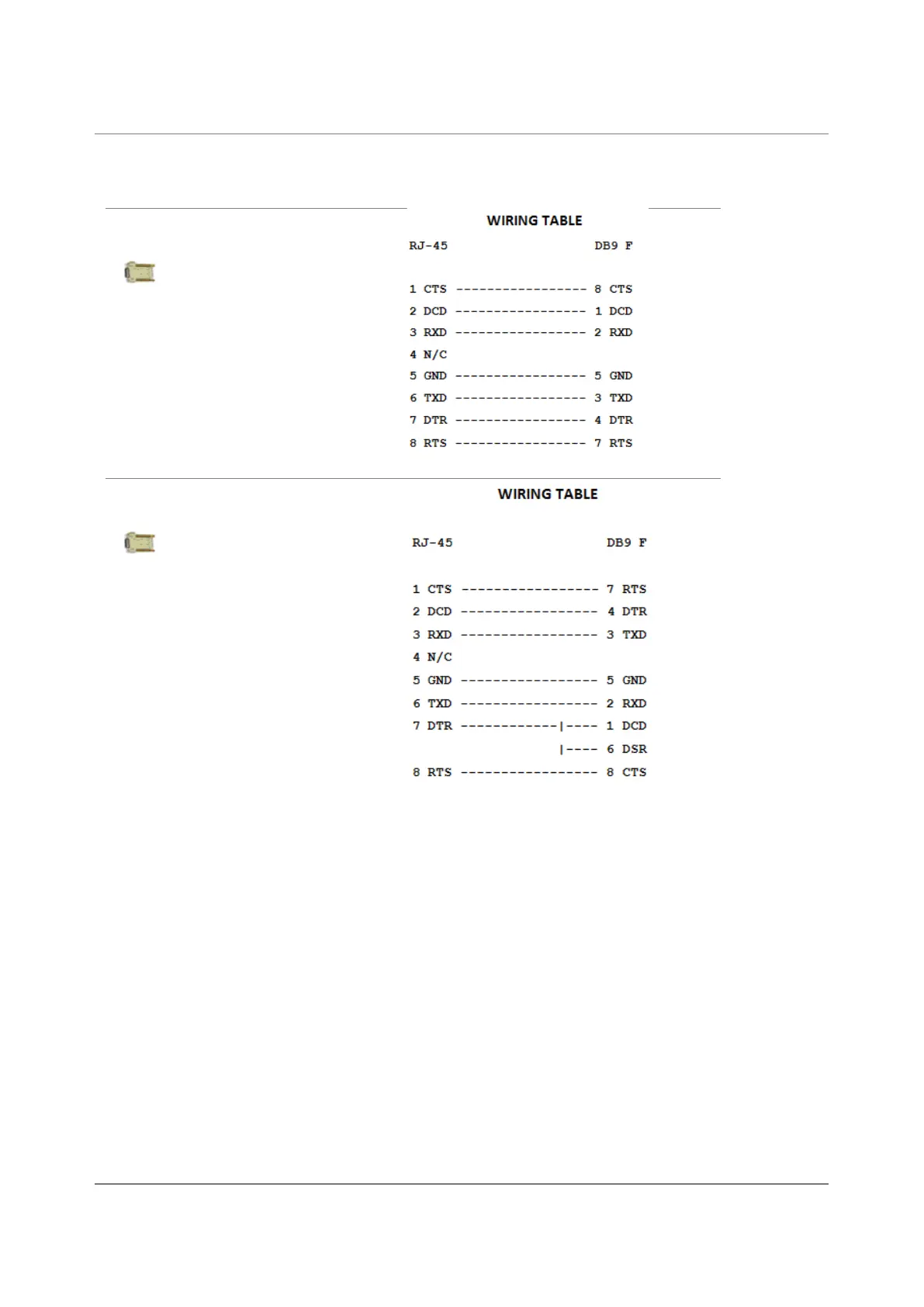

straight RJ45-DB9 connectors:
DB9F-RJ45S straight
connector
DB9F-RJ45S cross-
over connector
Other available connectors and adapters
Opengear also supplies a range of cables and adapters that enables you to connect to popular servers
and network appliances. More detailed information can be found online at
http://www.opengear.com/cabling.html
For Local/Console connection:
These adapters connect the console server LOCAL/Console port (via standard UTP Cat 5 cable) to
modem devices (for out-of-band access):
319000 DB9F to RJ45 straight console server LOCAL Console Port to Modem
319002 DB25M to RJ45 straight console server LOCAL Console Port to Modem
For console server Serial Port connection, the Opengear connectors and adapters detailed below are
specified to work with standard UTP Cat 5 cable.
For console servers with Cisco pinouts:
