2 Operating the System
August 2010 AS-Series Operator Manual 2-35
2 When the latch releases, gently push open the left side using the handle.

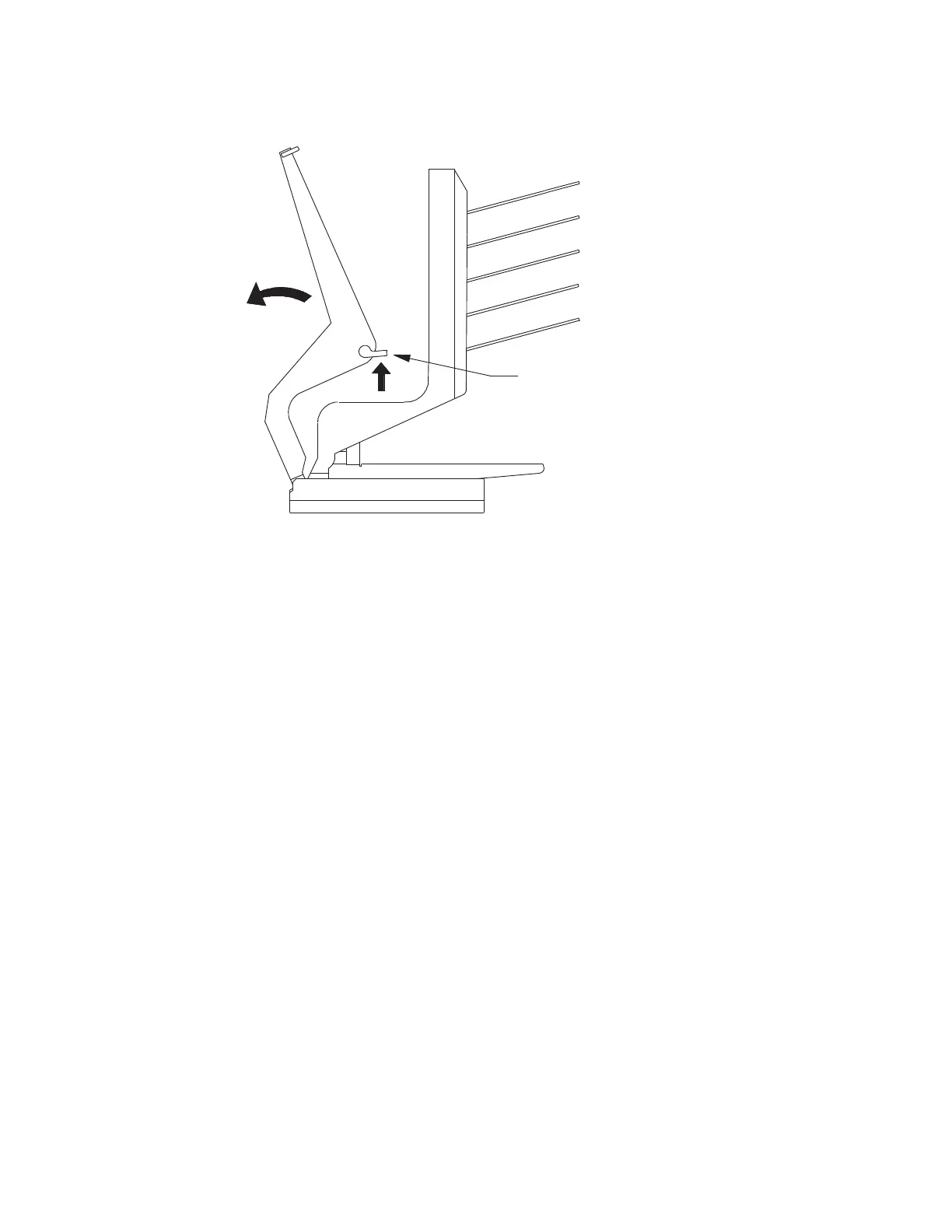

FIGURE 23: Opening the stacker transport cover
3 Clear any jammed papers in this area.
To close the stacker transport cover:
1 Hold onto the latch and gently pull the cover closed.
2 When the cover reaches the closed position, rotate the latch clockwise until you
hear the lock snap into place.
