100 Maintenance
FalconV User Manual - Standard Scanning - OPEX Corporation
Figure 40: Graphics printer interlock
11 Swing the paper guide back over the graphics printer, and tighten its
thumbscrew (shown in Figure 35).
12 Close the stacker cover.
Adjusting the printer carriage position
You can adjust the vertical print position on items by moving the printer
carriage. The printer carriage is fixed to a shaft with detents that position the
printer so it sprays ink through the holes in the paper guide. A thumb screw
holds the printer in the detents. If you do not position the printer in a detent, the
thumb screw sticks out, preventing you from closing the paper guide.

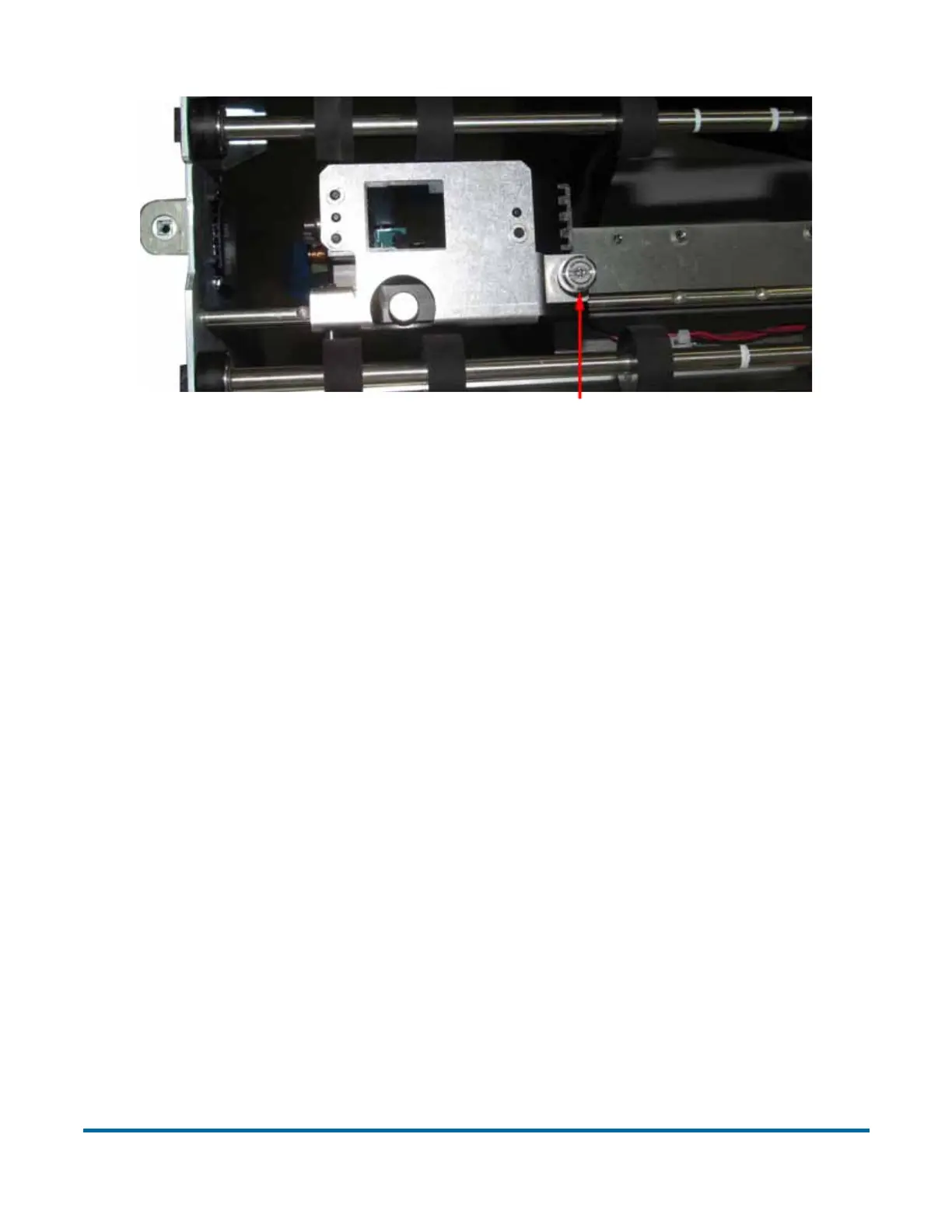

To adjust the carriage position, loosen the thumb screw, slide the carriage to a
new detented position on the shaft, and then retighten the thumb screw.
Thumb screw must be fully engaged to print
