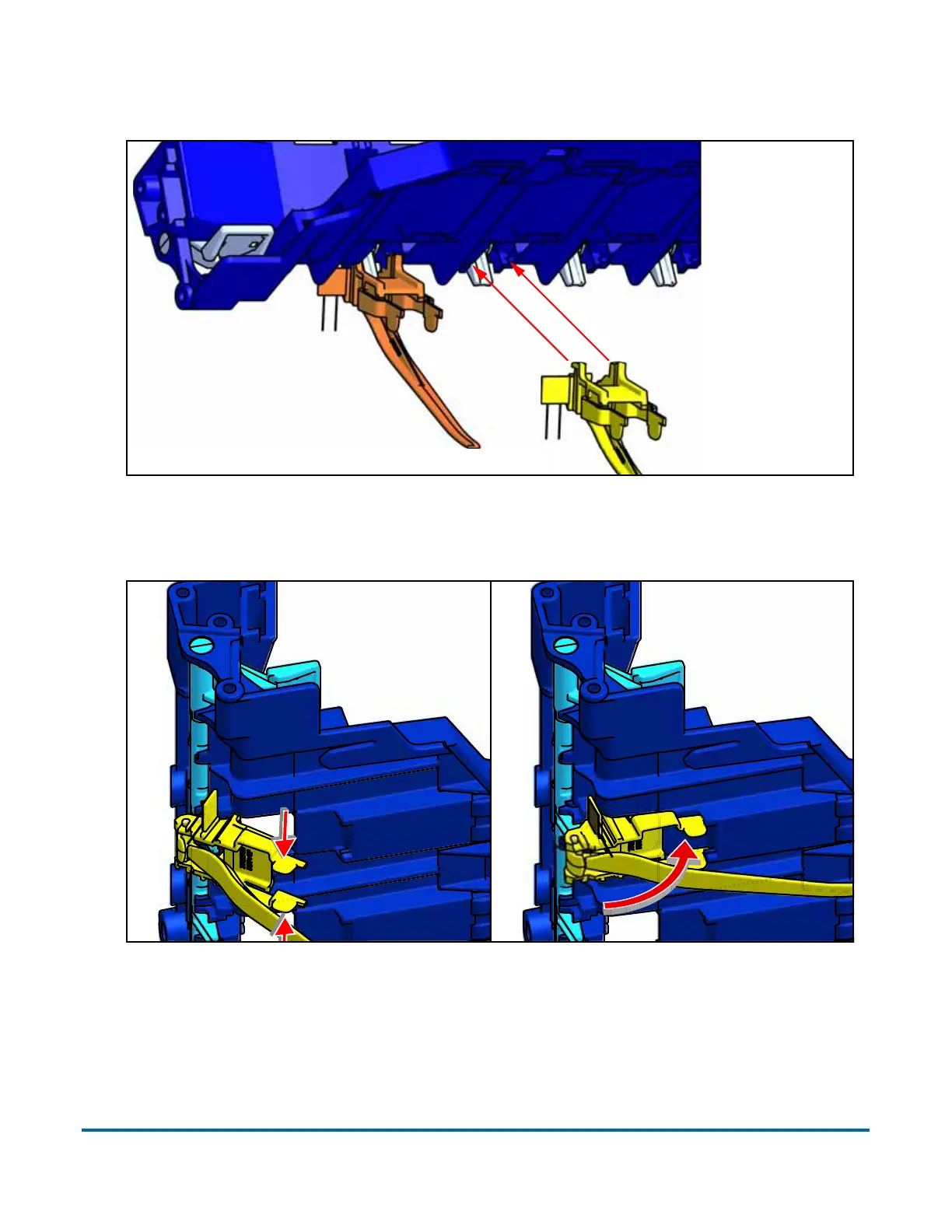

Load the stacker finger assembly in at an angle so the hooks at its top-rear
slide into the notches in the back of the stacker bin base.
Rotate the assembly up into place, while lightly squeezing the front tabs. These
will snap into place.
(Stacker bin
base, seen
from below)
Hooks fit into
notches under
stacker bin base
Squeeze
tabs
Rotate into
position
