78 Operation
FalconV User Manual - Standard Scanning - OPEX Corporation

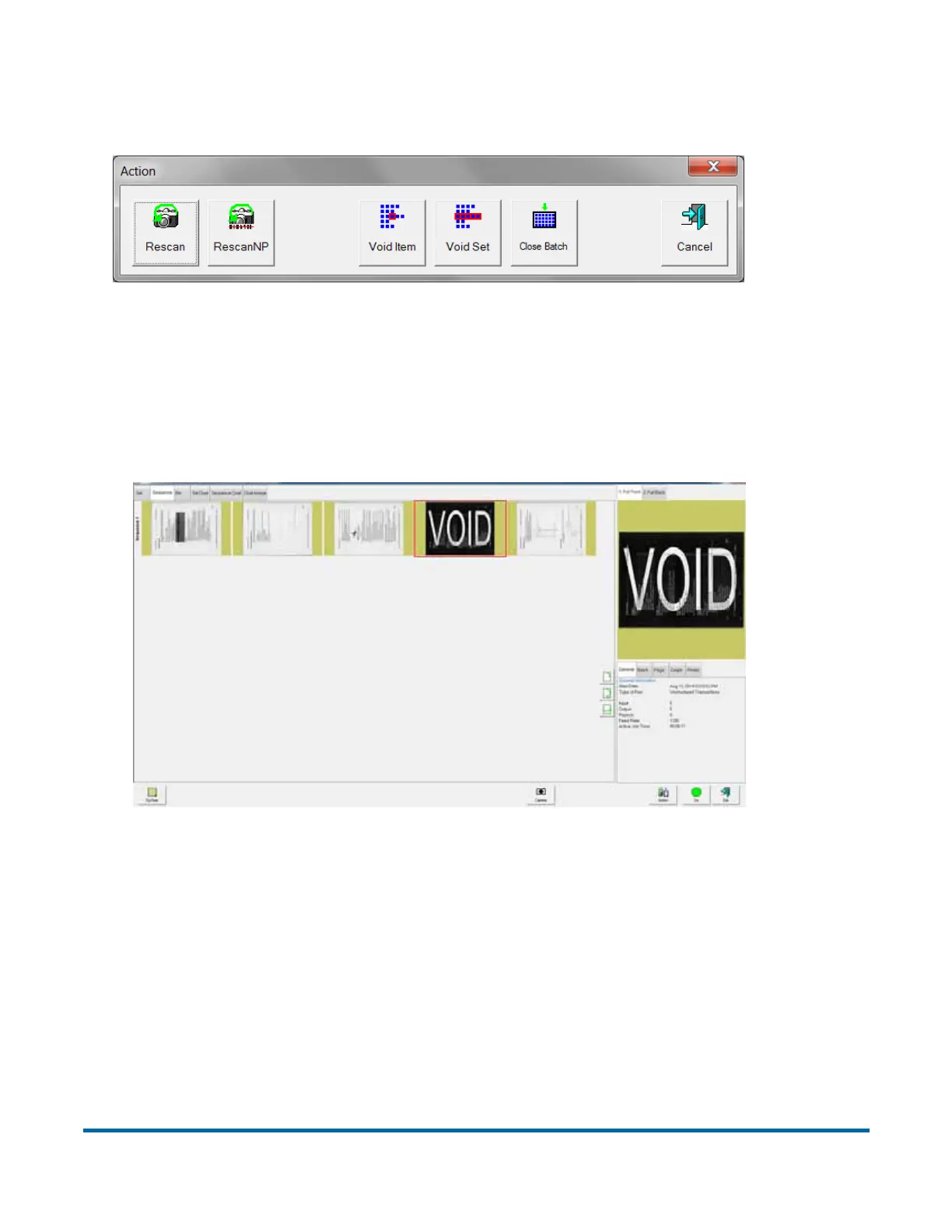

To mark an item as void, highlight the item’s thumbnail, and click Action. The
Action window will appear.
Press Void Item to void only the selected item, or Void Set to void the selected
item and all other items that are part of the set. The Cancel button is used to
close the Action window without performing any functions.
If the “Allow Void” Batch parameter is set to Yes with Marked Image, the VOID
stamp will appear over the image and the item will be designated as void in the
batch file (see Figure 20).
Figure 20: Voided item
If the “Allow Void” Batch parameter is set to Yes without Marked Image, the
VOID stamp will not appear over the image on the run screen. However, the
item will be designated with a Void status in the output file (see Figure 21).
To Next Page
