Opticum HD X406p - Multi-LNB Antenna Setup

13
To connect to the dish with more than one LNB, connect antennas by DiSEqC
1.0 or 1.1 switch. Connect receiver LNB IN to DiSEqC port output.
When using DiSEqC 1.0 or 1.1 switch, remember to set proper DiSEqC port in
Installation Menu.

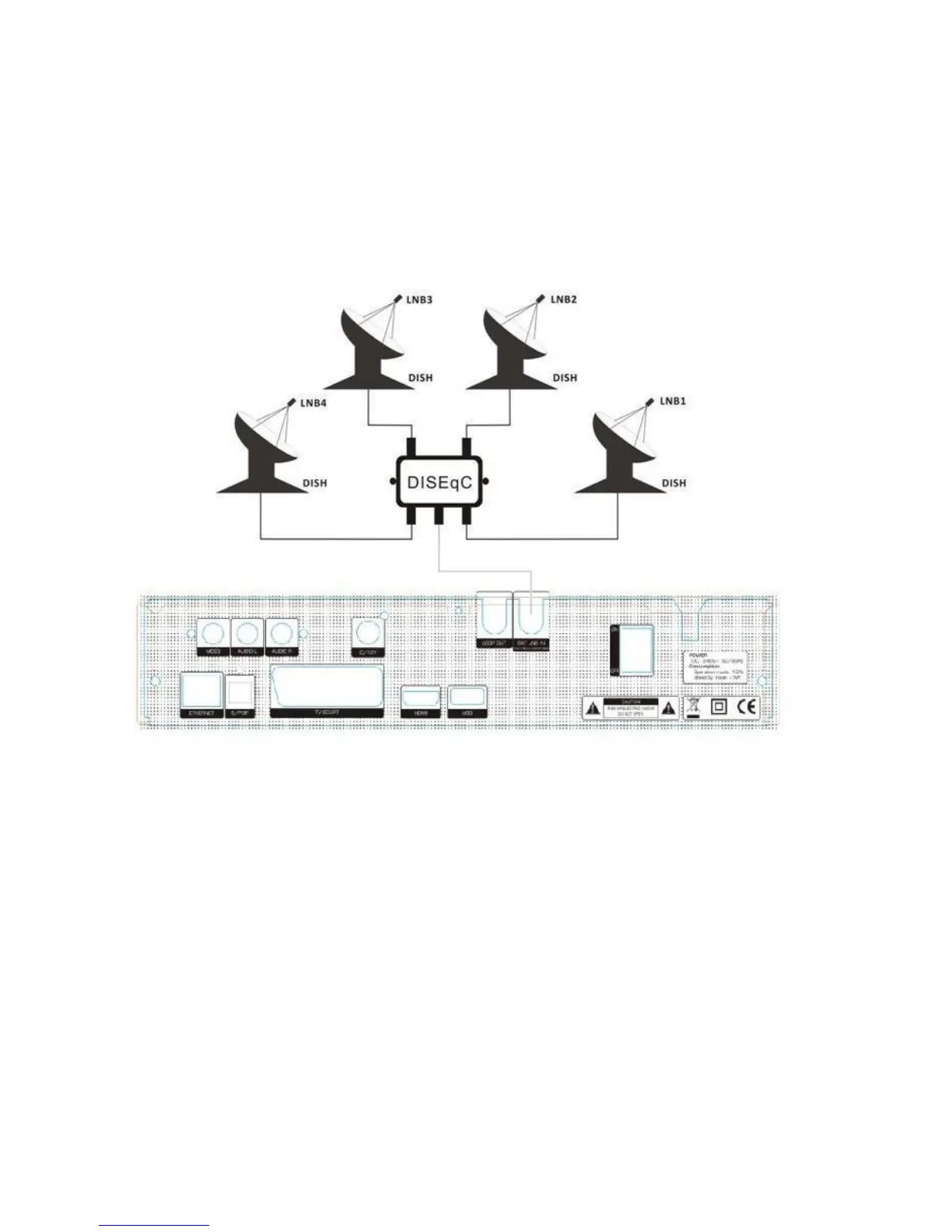

Figure7. Connecting to Dish with many LNBs using DiSEqC switch
