2. Product Overview
2.1 Front Panel

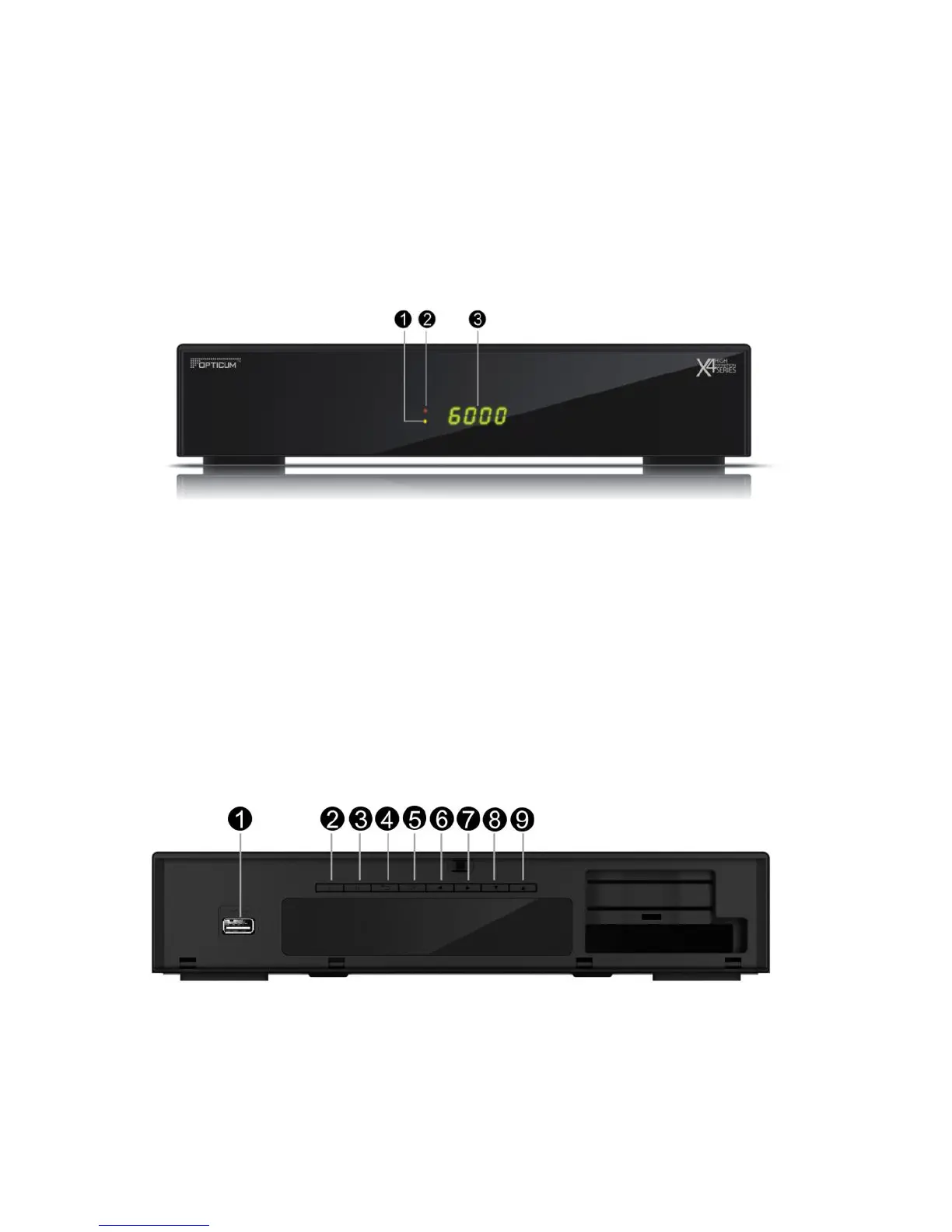

Figure 2. Front Panel
1. Signal LED (green)
Signal indicator.
2. Power LED (red)
Power indicator
3. Display
It displays channel information. In standby mode it displays current time.
Press front panel on the middle, above LED display, to open front panel flap.
Figure 3. Internal Front Panel
1. USB Port
USB 2.0 port
