EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential 2-7

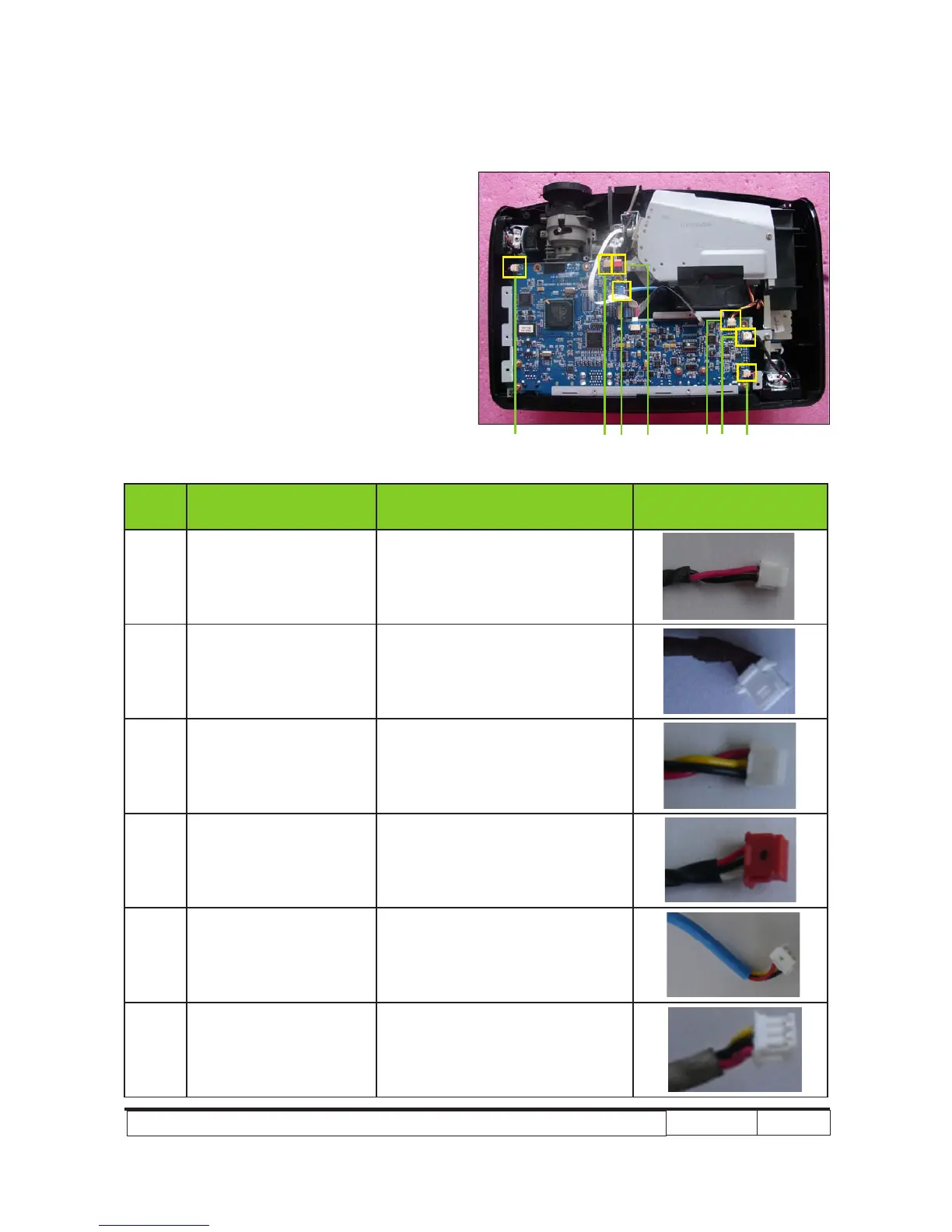

Please refer to the table as below for
details of each connector.
AG F E D C B
Item
Male Connector
on Main Board
The key feature Figure
A & G Speaker
Compose of Red/Black Wire and
Black wire tube (2 pin)
B Lamp Driver Black wire tube (5 pin)
C System Fan
Compose of Red/Yellow/Black
Wire (3 pin)
D Photo Sensor
Compose of Red/Black/White
Wire and Black wire tube (3 pin)
E Blower
Compose of Black/Yellow/Red
Wire and Blue wire tube (3 pin)
F IR
Compose of Black/Yellow/Red
Wire and Gray wire tube (3 pin)
