Optoma EX615 - 6-3 Setup Procedure (VGA) (EX542;EX615;EX540;EX762;EX540 I;EX542 I); 6-4 EDID Key-In Procedure (VGA-1 & VGA-2) (EX542;EX615;EX540;EX762;EX540 I;EX542 I)

EX540/EX542/EX612/EX615/EX762/EX540I/EX542I/ES523ST/EW533ST
Condential
6-3

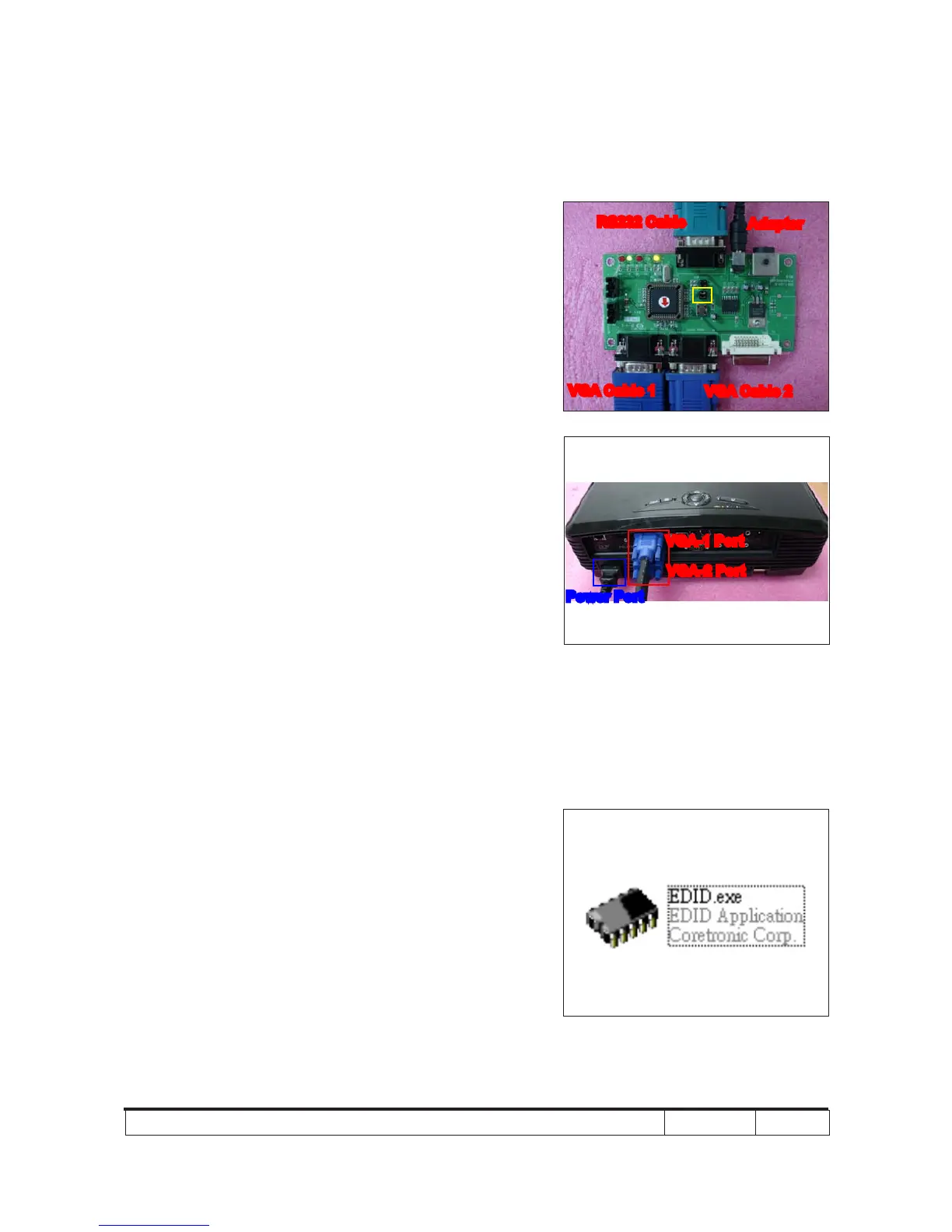

6-3 Setup Procedure (VGA)
(for EX542/EX615/EX540/(for EX542/EX615/EX540/
EX762/EX540I/EX542I)
1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P3 of xture with VGA-1 Port
of projector by VGA Cable 1.
(3) Connect P4 of xture with VGA-2 Port
of projector by VGA Cable 2.
(4) Plug Power Adapter to JP1 of xture.
(5) Power on xture.
(6) Plug Power Cord to projector.
Note: -You must conrm that the JP3 is closed in
all procedure.
6-4 EDID Key-In Procedure
(VGA-1 & VGA-2)
(for EX542/EX615/EX540/
EX762/EX540I/EX542I)
1. Execute EDID Program
- Double click "EDID" to execute EDID
program.
JP3
Adapter
RS232 Cable
VGA Cable 2
VGA Cable 1
JP1
P1
P3
P4
VGA-1 Port
VGA-2 Port
Power Port
