Oracle Database Appliance X6-2-HA Owner's Guide

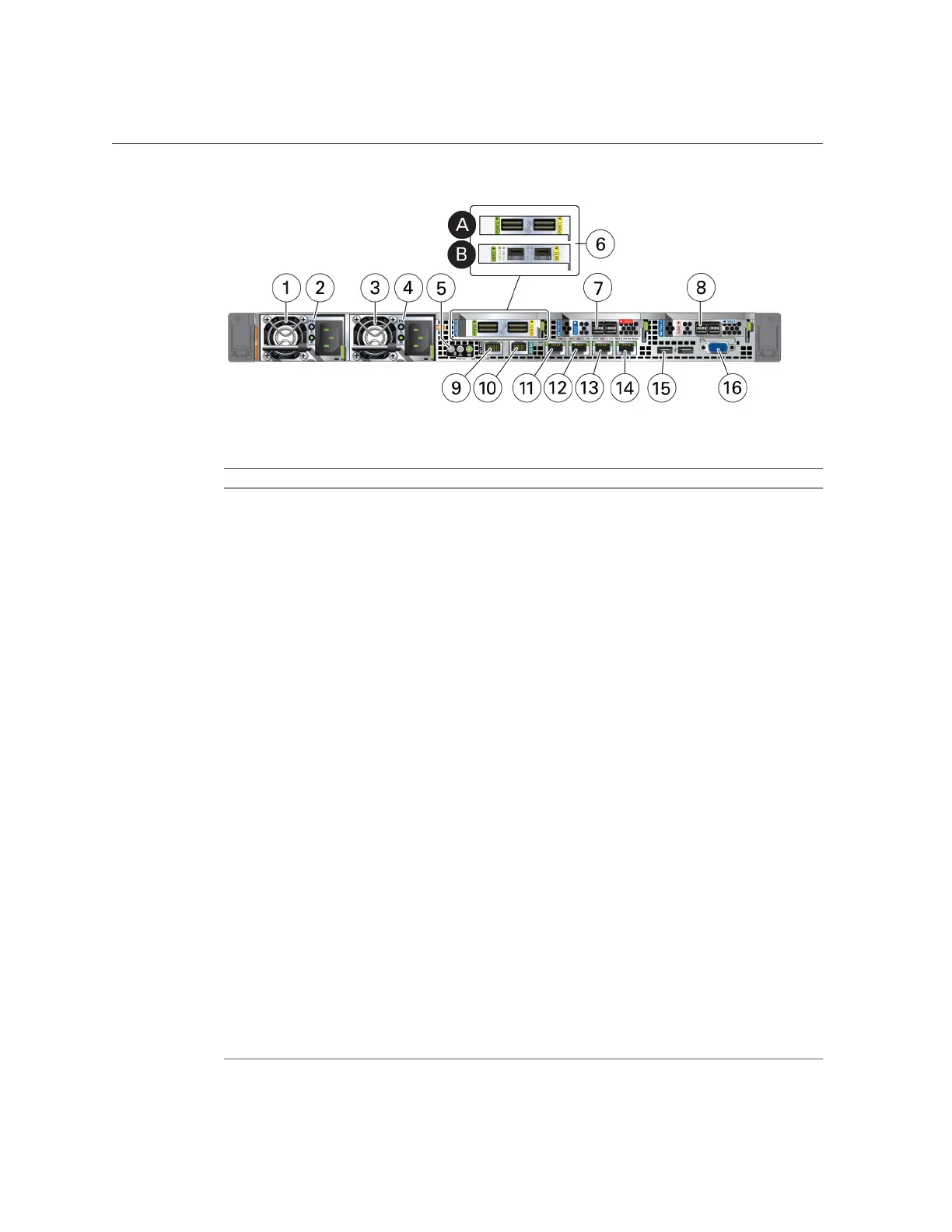

Oracle Database Appliance X6-2-HA Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 29
Callout Description Callout Description
1 Power Supply (PS) 0 with fan module 9 NET MGT port. Service processor
10/100/1000Base-T network interface port
with RJ-45 connector used to connect to
Oracle Integrated Lights Out Manager
(ILOM)
Caution - The management ports are
intended for use by service engineers only.
2 Power Supply (PS) 0 status indicators:
Service Required LED: amber, AC OK LED:
green
10 SER MGT port. Service processor RJ-45
serial port used to connect to Oracle ILOM
Caution - The management ports are
intended for use by service engineers only.
3 Power Supply (PS) 1 with fan module 11 10 GbE network interface port with RJ-45
connector
4 Power Supply (PS) 1 status indicators:
Service Required LED: amber, AC OK LED:
green
12 10 GbE network interface port with RJ-45
connector
5 System status indicators: Locate LED: white,
Service Required LED: amber, Power/OK
LED: green
13 10 GbE network interface port with RJ-45
connector
6 Two interface options are available from the
factory for the appliance:
■ 6a: PCIe card slot 1. Provides two
InfiniBand network interface ports with
QSFP+ connections for a private cluster
interconnect between server nodes.
--or--
■ 6b: PCIe card slot 1. Provides two
10GbE network interface ports with
SFP+ connections for the data center or
public network.
Create the private cluster interconnect
between the server nodes using two
of each server node's four built-in 10
GbE network interface ports with RJ-45
14 10 GbE network interface port with RJ-45
connector
