Oracle Database Appliance X3-2/X4-2 Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 39

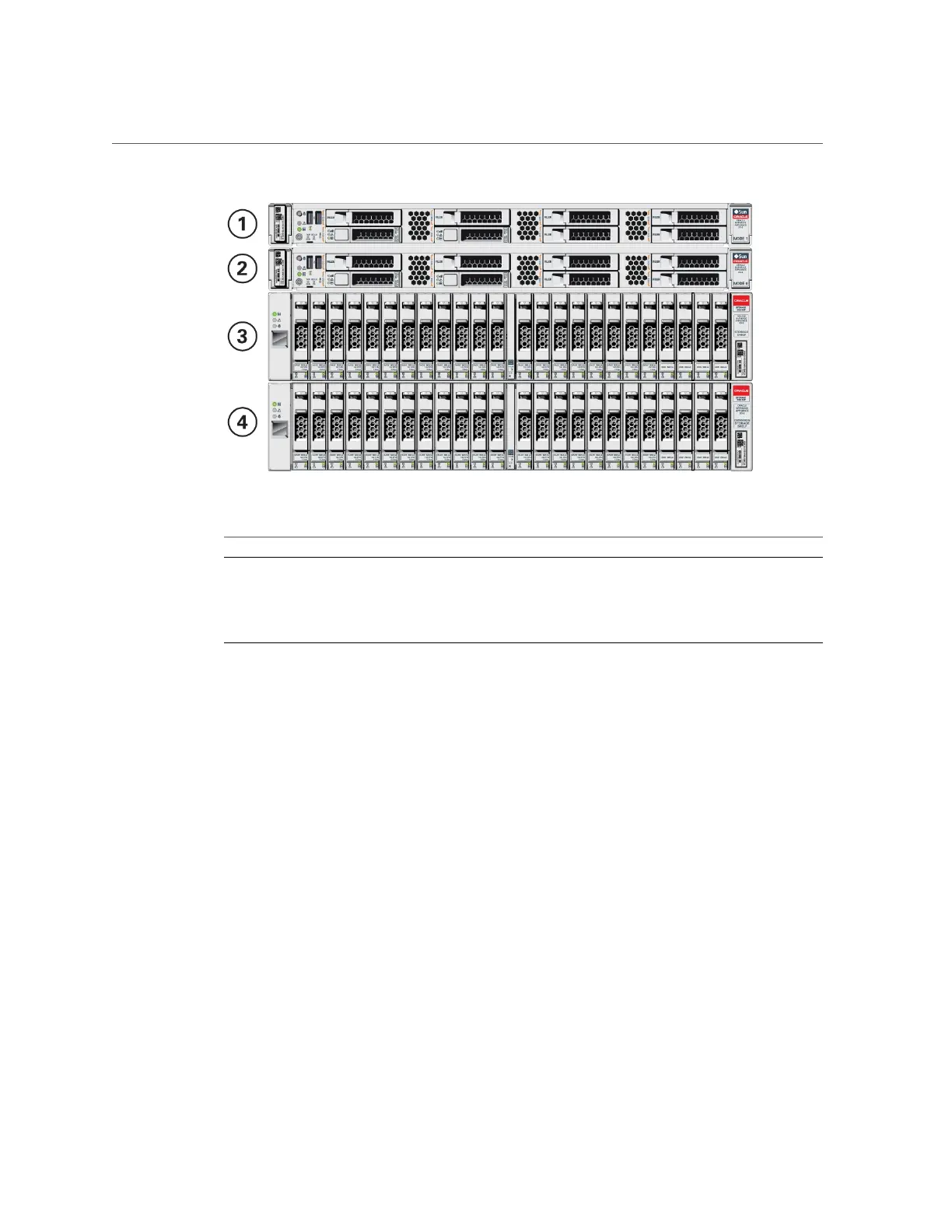

Callout Description
1 Server node 1
2 Server node 0
3 Storage shelf (DE2-24P)
4 Optional storage expansion shelf (DE2-24P)
Server Node Front Panel Features
The following figure shows the components on the front panel of an Oracle Database
Appliance X3-2/X4-2 server node.
