Oracle Database Appliance X3-2/X4-2 Front and Back Panels
40 Oracle Database Appliance Owner's Guide • March 2017

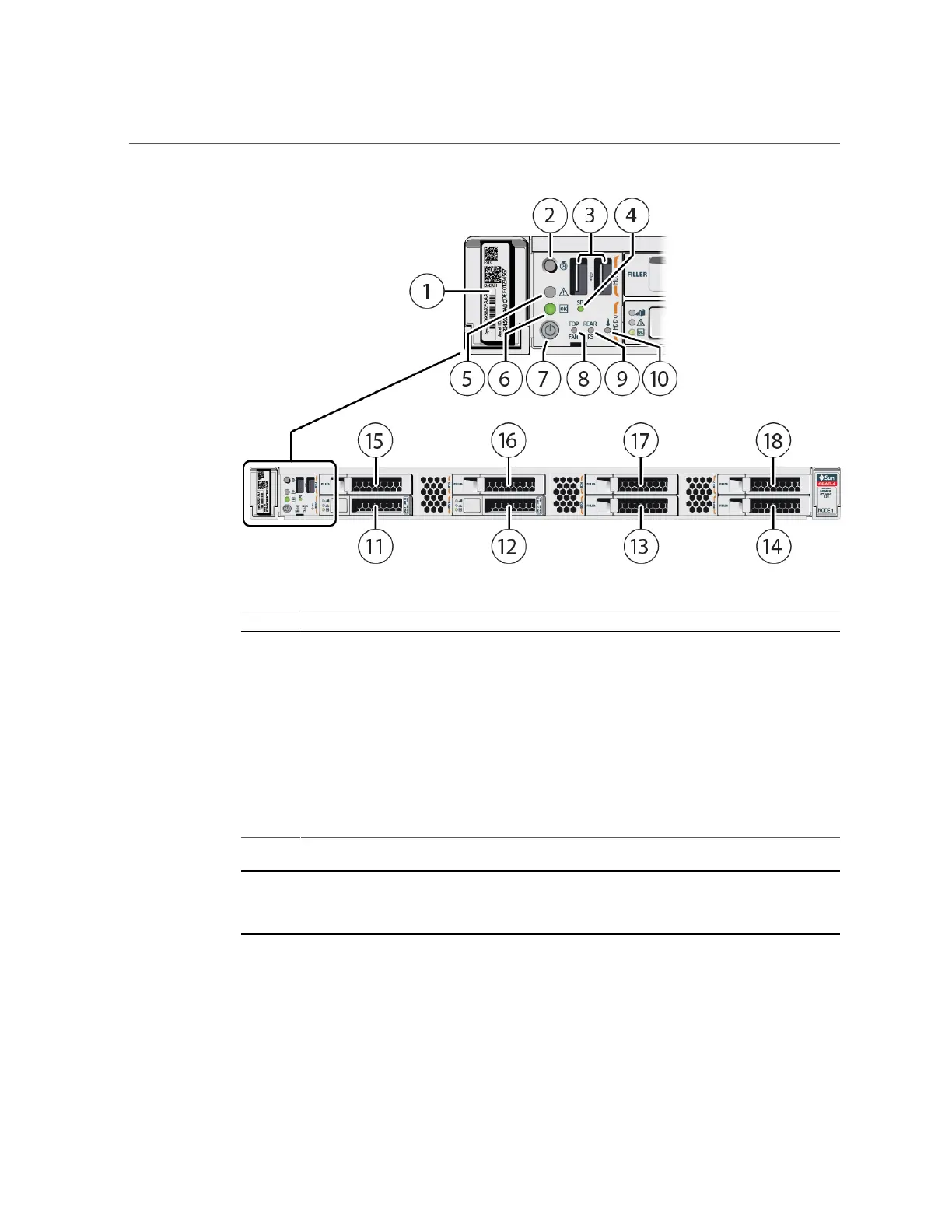

Callout Description Callout Description
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
10 System Over Temperature Warning LED:
amber
2 Locate LED/button: white 11 HDD 0 (boot drive)
3 USB 2.0 connectors (2) 12 HDD 1 (boot drive)
4 SP OK LED: green 13 HDD filler
5 Service Required LED: amber 14 HDD filler
6 Power/OK LED: green 15 HDD filler
7 Power button 16 HDD filler
8 Fan Fault LED: amber 17 HDD filler
9 Power Supply (PS) Fault LED: amber 18 HDD filler
Note - When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of
the serial number. You can find the TLI by looking at the top of either server node or on the top
of the storage shelf. For details, see “Technical Support” on page 53.
Storage Shelf Front Panel Features
The following figure shows the Oracle Database Appliance X3-2/X4-2 storage shelf front
panel features.
