Oracle Database Appliance X6-2-HA

Oracle Database Appliance X3-2/X4-2 Front and Back Panels
42 Oracle Database Appliance Owner's Guide • March 2017

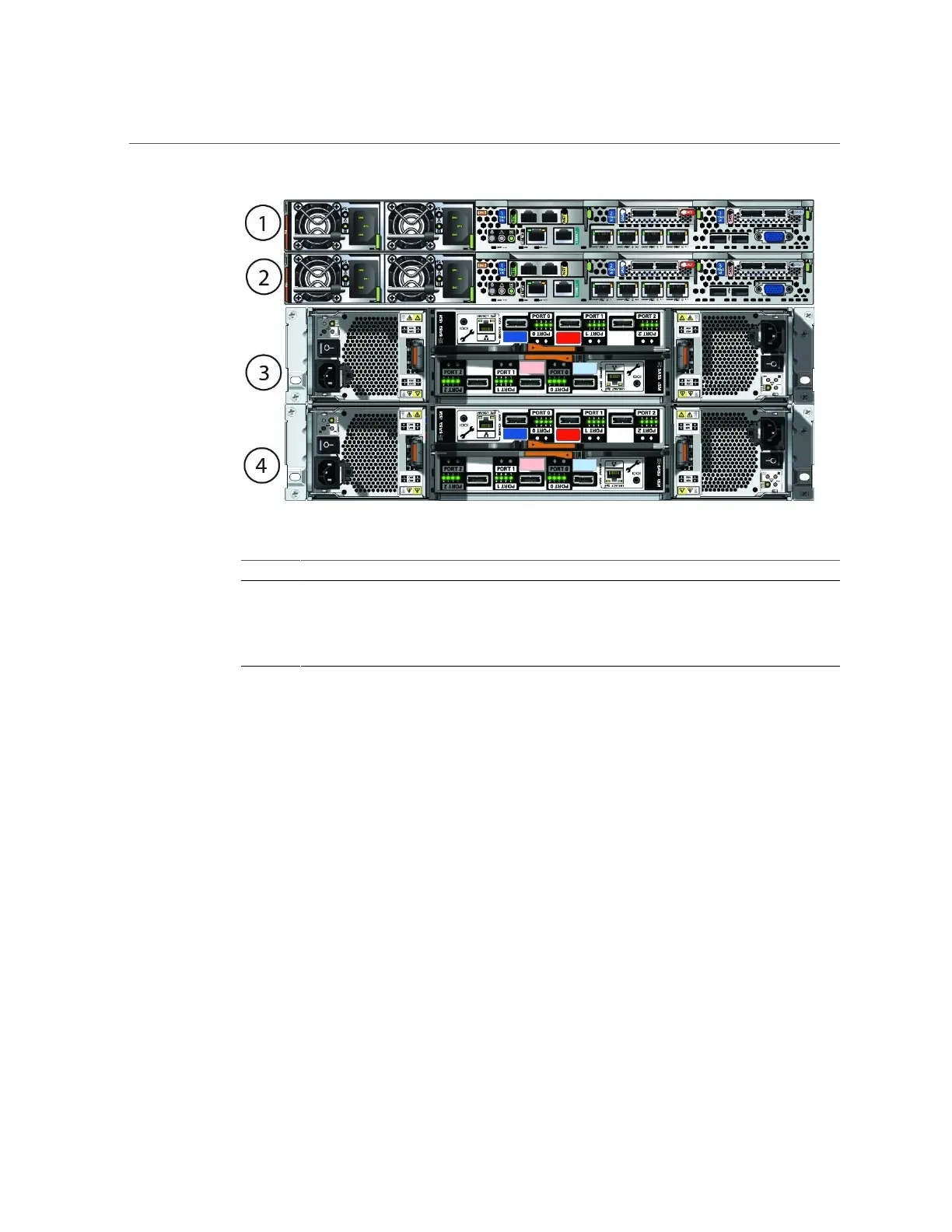

Callout Description
1 Server node 1
2 Server node 0
3 Storage shelf (DE2-24P)
4 Optional storage expansion shelf (DE2-24P)
Server Node Back Panel Features
The following figure shows the components on the Oracle Database Appliance X3-2/X4-2
server node back panel.
