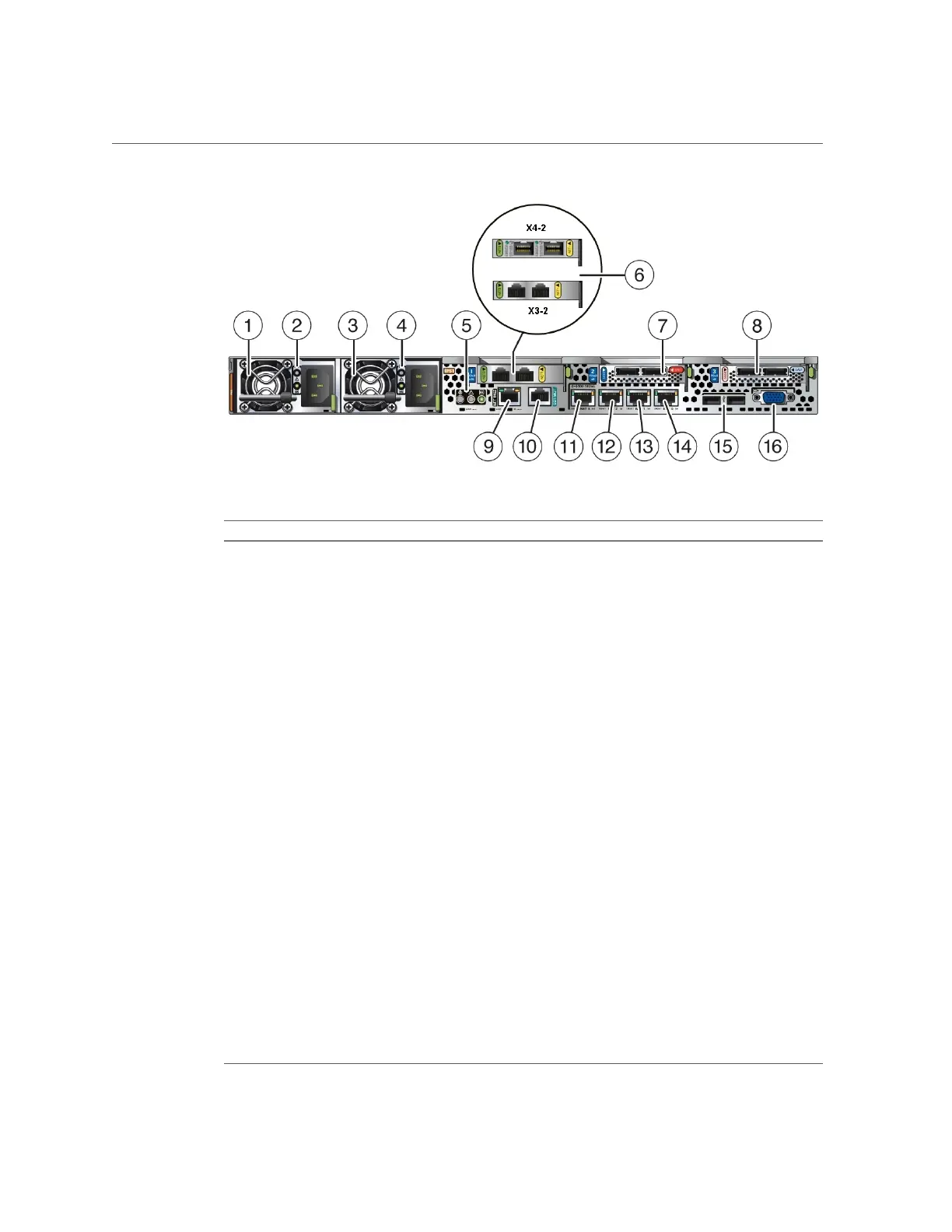

Oracle Database Appliance X3-2/X4-2 Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 43
Callout Description Callout Description
1 Power Supply (PS) 0 with fan module 9 NET MGT port. Service processor
10/100BASE-T network interface port with
RJ-45 connector used to connect to Oracle
Integrated Lights Out Manager (ILOM)
Caution - The management ports are
intended for use by service engineers only.
2 Power Supply (PS) 0 status indicators:
Service Required LED: amber, AC OK LED:
green
10 SER MGT port. Service processor RJ-45
serial port used to connect to Oracle ILOM
Caution - The management ports are
intended for use by service engineers only.
3 Power Supply (PS) 1 with fan module 11 10 GbE network interface port with RJ-45
connector
4 Power Supply (PS) 1 status indicators:
Service Required LED: amber, AC OK LED:
green
12 10 GbE network interface port with RJ-45
connector
5 System status indicators: Locate LED: white,
Service Required LED: amber, Power/OK
LED: green
13 10 GbE network interface port with RJ-45
connector
6 Oracle Database Appliance X4-2: PCIe
card slot 1. Provides two 10 GbE dual-rate
SFP+ ports for a private cluster interconnect
between server nodes.
Alternatively, you have the option of creating
the node-to-node interconnection using two
of each server node's four 10 GbE network
interface ports with RJ-45 connections. Refer
to the Oracle Database Appliance Getting
Started Guide for more information.
Oracle Database Appliance X3-2: PCIe
card slot 1. Provides two 10 GbE network
interface ports with RJ-45 connectors for a
14 10 GbE network interface port with RJ-45
connector
To Next Page
