Install the Oracle Database Appliance X3-2/X4-2 DE2-24P Storage Shelf Into a Rack
86 Oracle Database Appliance Owner's Guide • March 2017
Caution - Mechanical failure. When installing a storage shelf in a threaded rack, be sure to use
the screws with the partially unthreaded shaft. Before threading them into the rails, be sure to
thread them through the rack until the threads clear the rack and the screws turn freely.

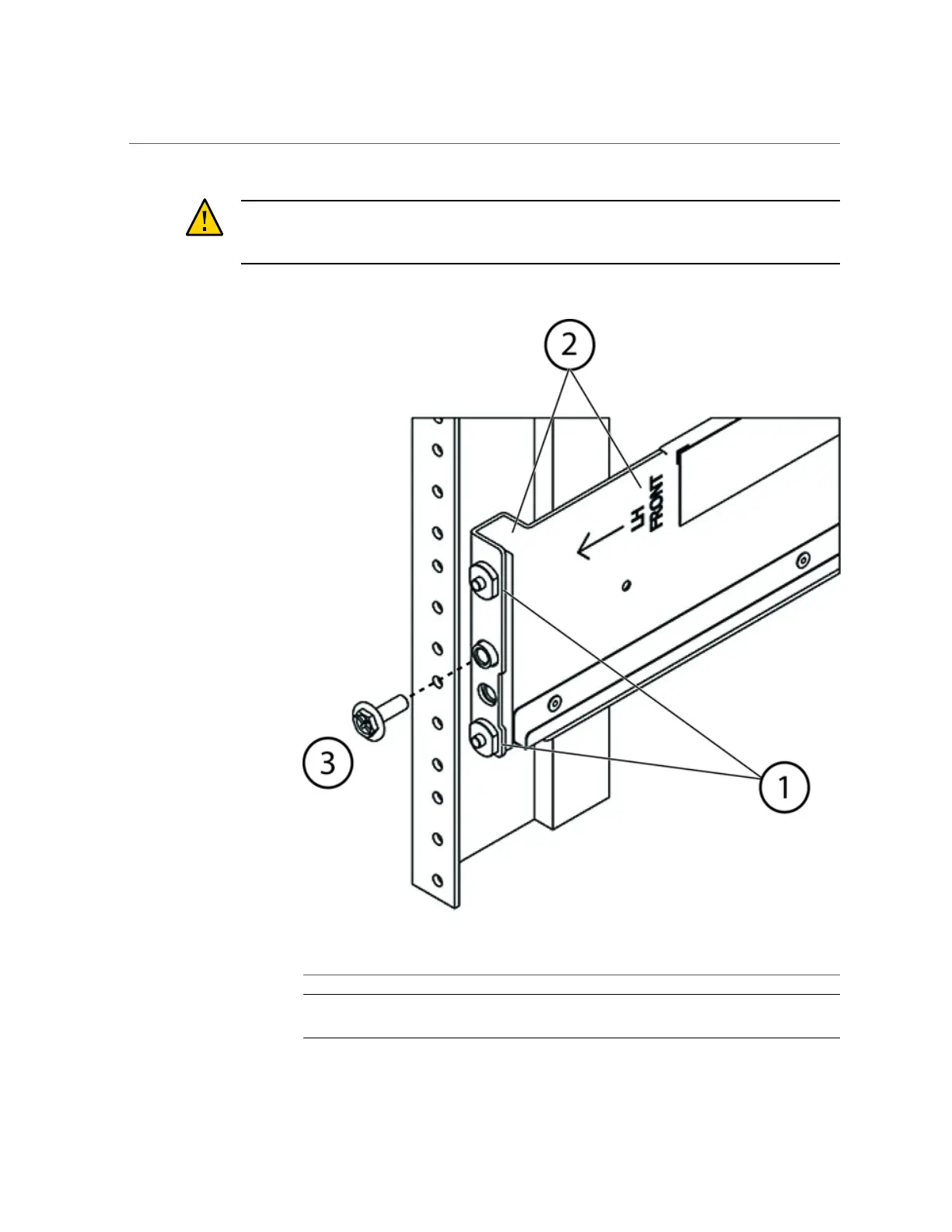

Callout Description
1 Pins (these replaced the location pegs)
2 Rail flange and label
