Add a Storage Expansion Shelf Into an Existing System
94 Oracle Database Appliance Owner's Guide • March 2017

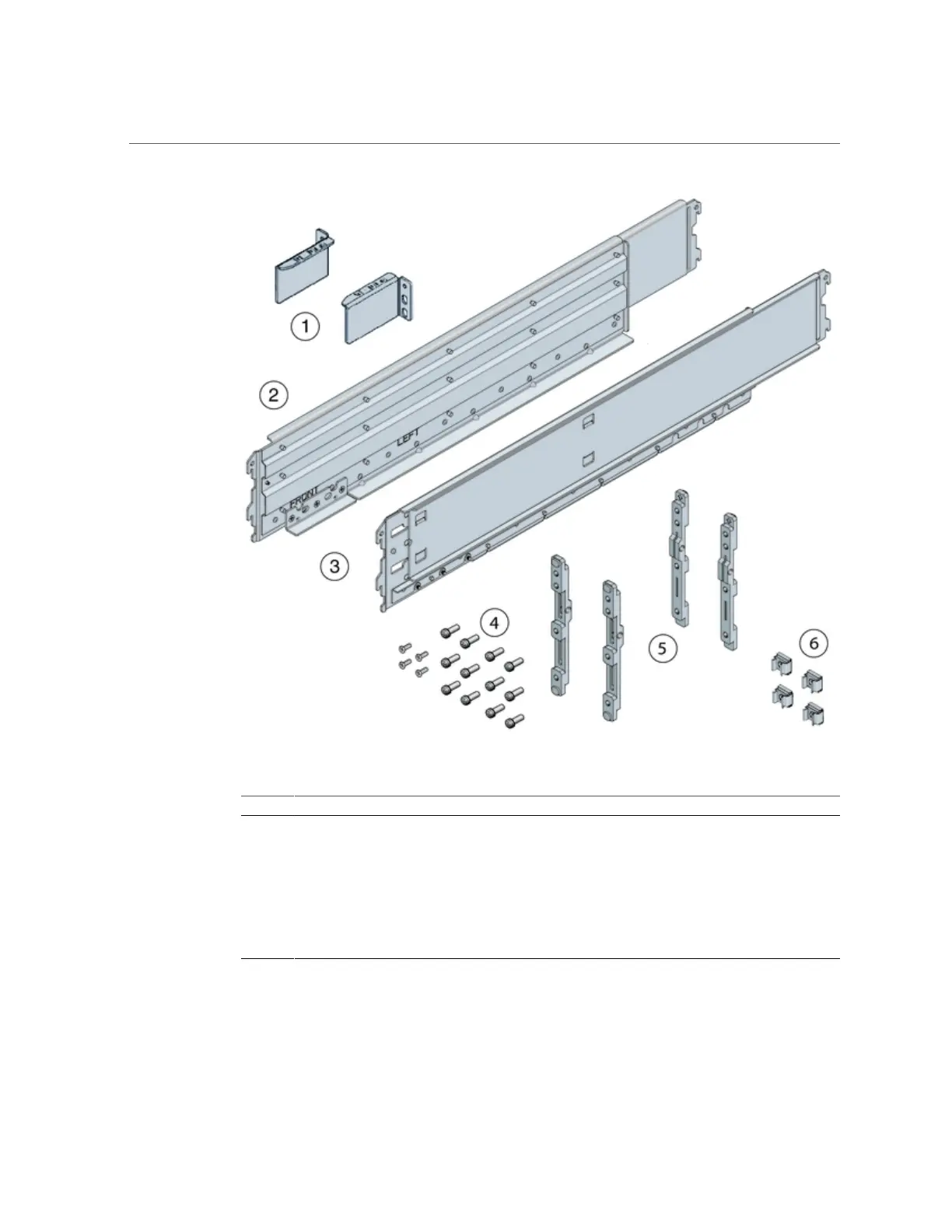

Callout Description
1 Top rear braces that attach to the posts at the upper rear of the system.
2 Left shelf rail.
3 Right shelf rail.
4 An assortment of M6 and 10-32 screws, including twelve M6 x 16 screws, twelve M6 x 12 screws, four
M6 x 4 flathead screws, ten 10–32 screws, and twelve 10–32 shoulder screws.
5 Two sets of four adapter brackets, one set for round-hole racks, and one set for square-hole racks.
6 Four M6 cage nuts. Note - The cage nuts are not used. You can recycle them.
