Install the Cable Management Arm
b.
Gently tug on the left side of the front slide bar to verify that connector A is
properly seated.
7.
Install the CMA's connector B into the right slide-rail.
a.

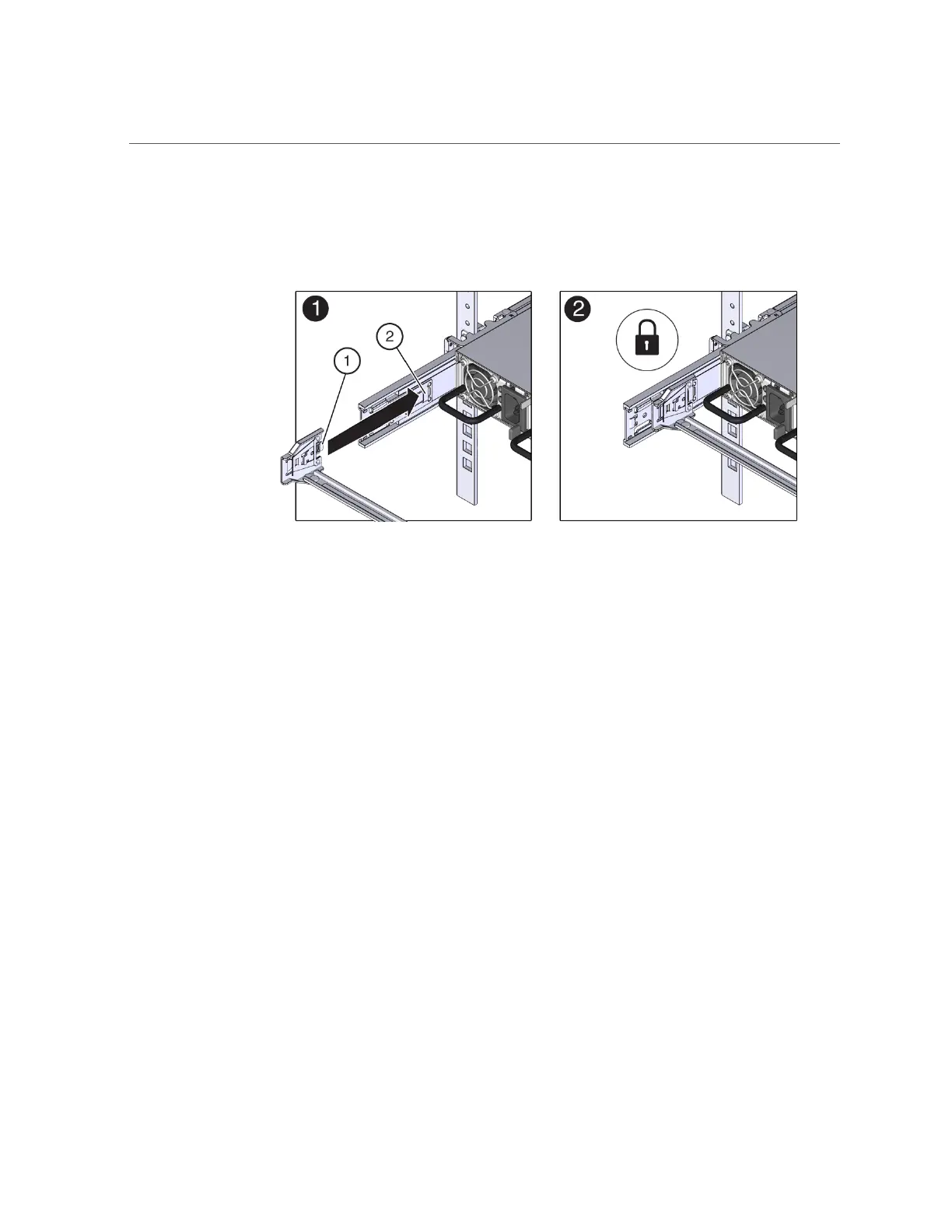

Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click (frames 1 and 2).
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
42 SPARC S7-2 Server Installation Guide • July 2016
