Install the Cable Management Arm
a.

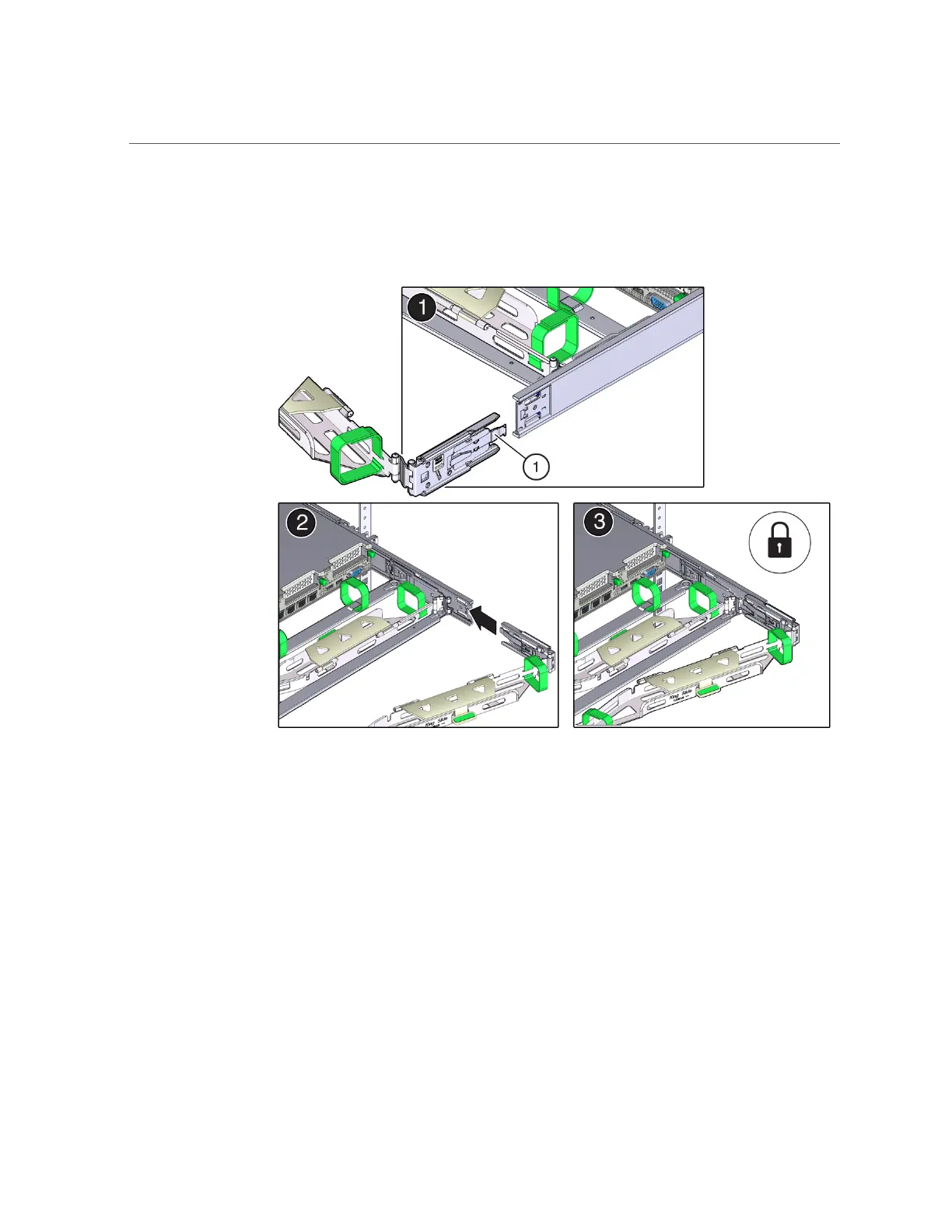

Align connector C with the slide-rail so that the locking spring (callout 1) is
positioned inside (server side) of the right slide-rail (frame 1).
b.
Insert connector C into the right slide-rail until it locks into place with an
audible click (frames 2 and 3).
c.
Gently tug on the right side of the CMA's rear slide bar to verify that
connector C is properly seated.
9.
To prepare the CMA's connector D for installation, remove the tape that secures
the slide-rail latching bracket to connector D and ensure that the latching
bracket is properly aligned with connector D (frames 1 and 2).
