Prepare the CMA for Installation
Note - The CMA has two sets of three cable covers, two covers with two hinges (one of which
is shown in the following figures), and one cover with a single hinge.

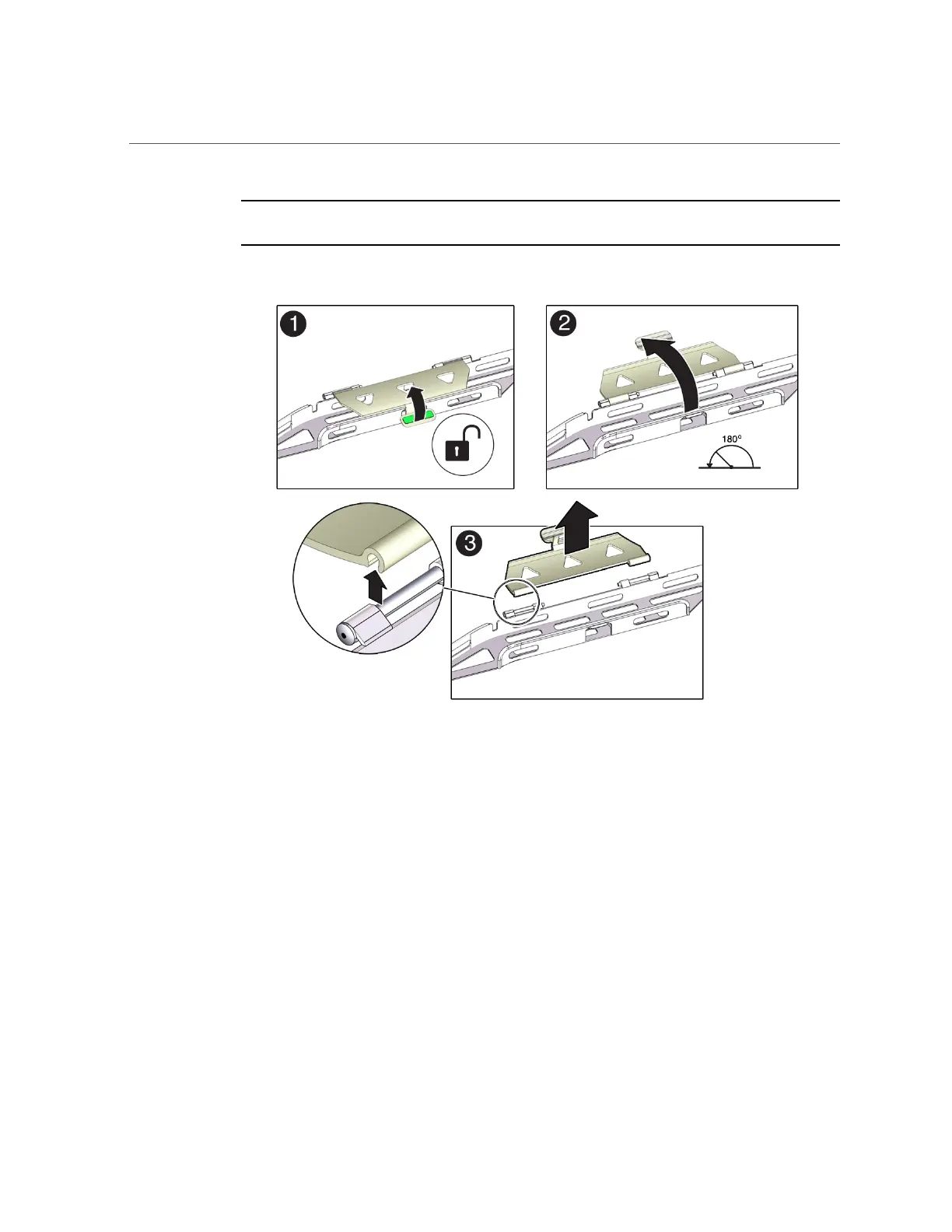

b.
Apply upward pressure to the outside edge of each hinge connector until the
hinge connector comes off the hinge (panel 3).
c.
One at a time, position each round cable cover horizontally over the hinges,
and align the hinge connectors with the hinges.
d.
Using your thumb, apply downward pressure on each hinge connector to
snap the hinge connector into place.
e.
Swing the cable covers down and press down on the cable cover handle to
lock them into the closed position.
5.
Ensure that the six Velcro straps are threaded into the CMA as shown in Step 2.
40 SPARC T8-1 Server Installation Guide • June 2019
