ST 9100 - HARDWARE GUIDE
1.3.1 Transceiver Unit
Each transceiver is a self-contained unit, including a satellite/cellular modem, a multi-GNSS module, programmable
microcontroller, and multiple discrete and analog I/Os (input/output) capable of monitoring and controlling external
sensors and devices. Ideal for mobile applications, it is also suitable for fixed installations.
Arranging the transceiver unit’s connectors (Figure 3) at one end of the unit simplifies installation. Sturdy flanges on
the side make mounting quick and easy.

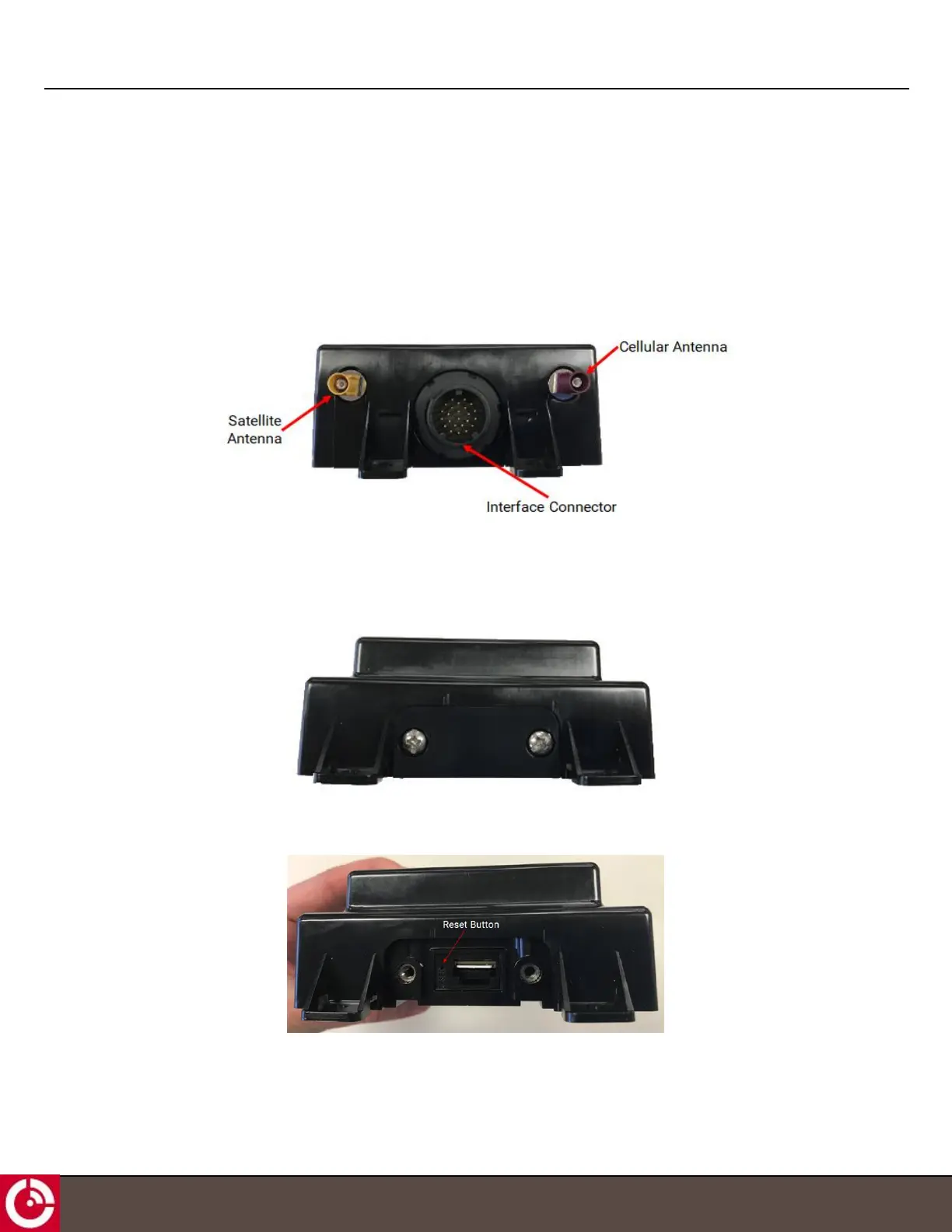

Figure 3: Connector Position
An anti-tamper SIM door on the back side of the transceiver (Figure 4) provides easy access to the SIM card holder
and reset button.
Figure 4: SIM Access Door
Figure 5: Reset Button
T413, Version 0.04 BETA © ORBCOMM
®
