ORBCOMM ST 9100 - Low Elevation Antenna; Terminal Shroud; Figure 20: Standard Antenna Height Dimensions (MM); Figure 21: Low Elevation Antenna Height Dimensions (MM)

ST 9100 - HARDWARE GUIDE

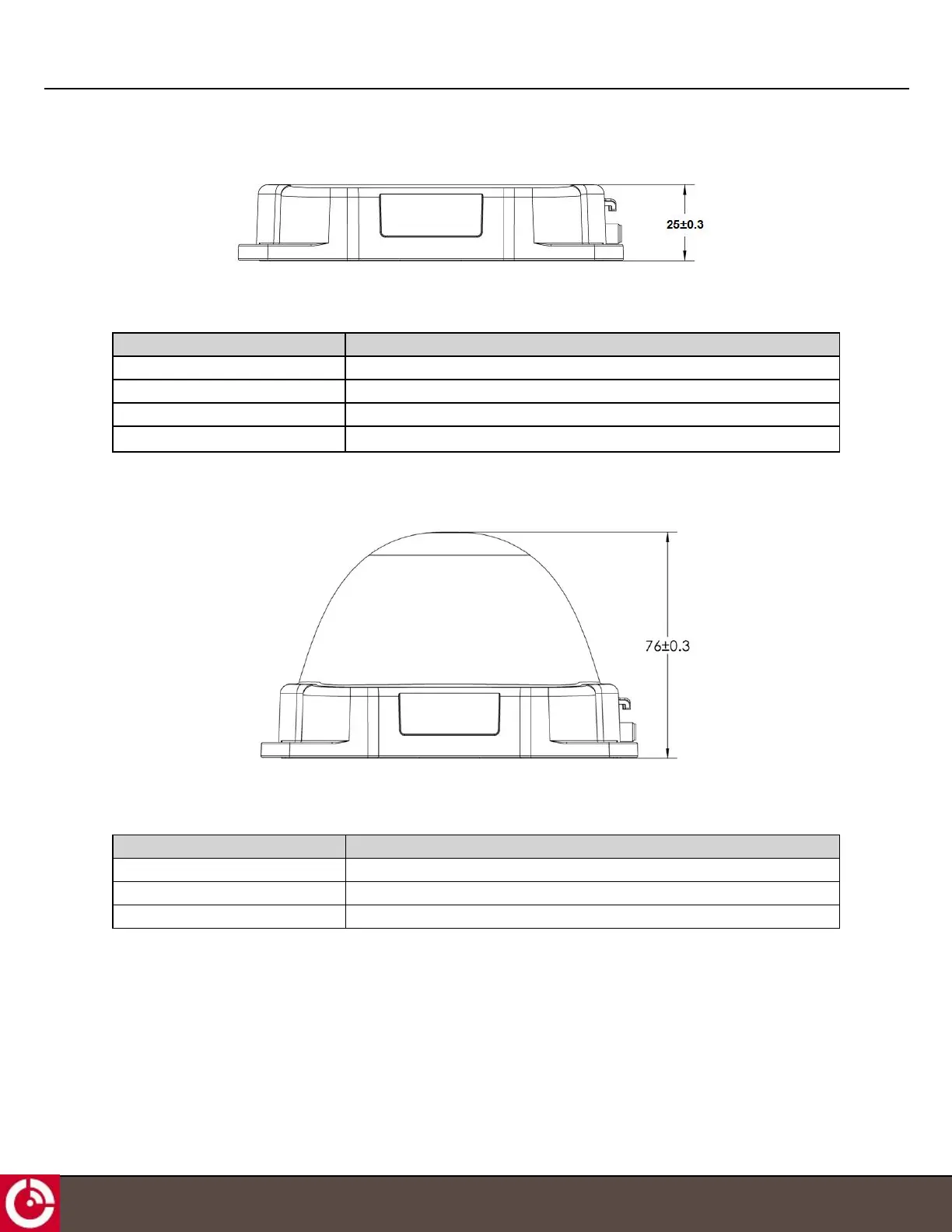

Figure 20: Standard Antenna Height Dimensions (mm)
2.16.3.2 Low Elevation Antenna
Parameter Value
Mass Side entry with 5 m (16 ft.) cable: 365 g (13 oz.)
Enclosure Material Lexan EXL
Color Code 8T9D076 (white)
Sealing Gasket Material Santoprene
®
Figure 21: Low Elevation Antenna Height Dimensions (mm)
2.16.3.3 Terminal Shroud
Parameter Value
Mass 150 g (2 oz.)
Enclosure Material Lexan EXL
Color Code 8T9D076 (white)
