ST 9100 - HARDWARE GUIDE
1.3.2 Satellite Antenna
The satellite-cellular tranceivers’s satellite antenna is waterproof and designed to operate in extreme environments. It
has four mounting flanges for installation.
The satellite antenna connects to the transceiver using a 5 m (16 foot) cable terminated with a curry yellow colored
FAKRA RF connector.
The satellite-cellular transceiver is available with either the standard satellite antenna (Figure 6) or the low elevation
satellite antenna (Figure 7).

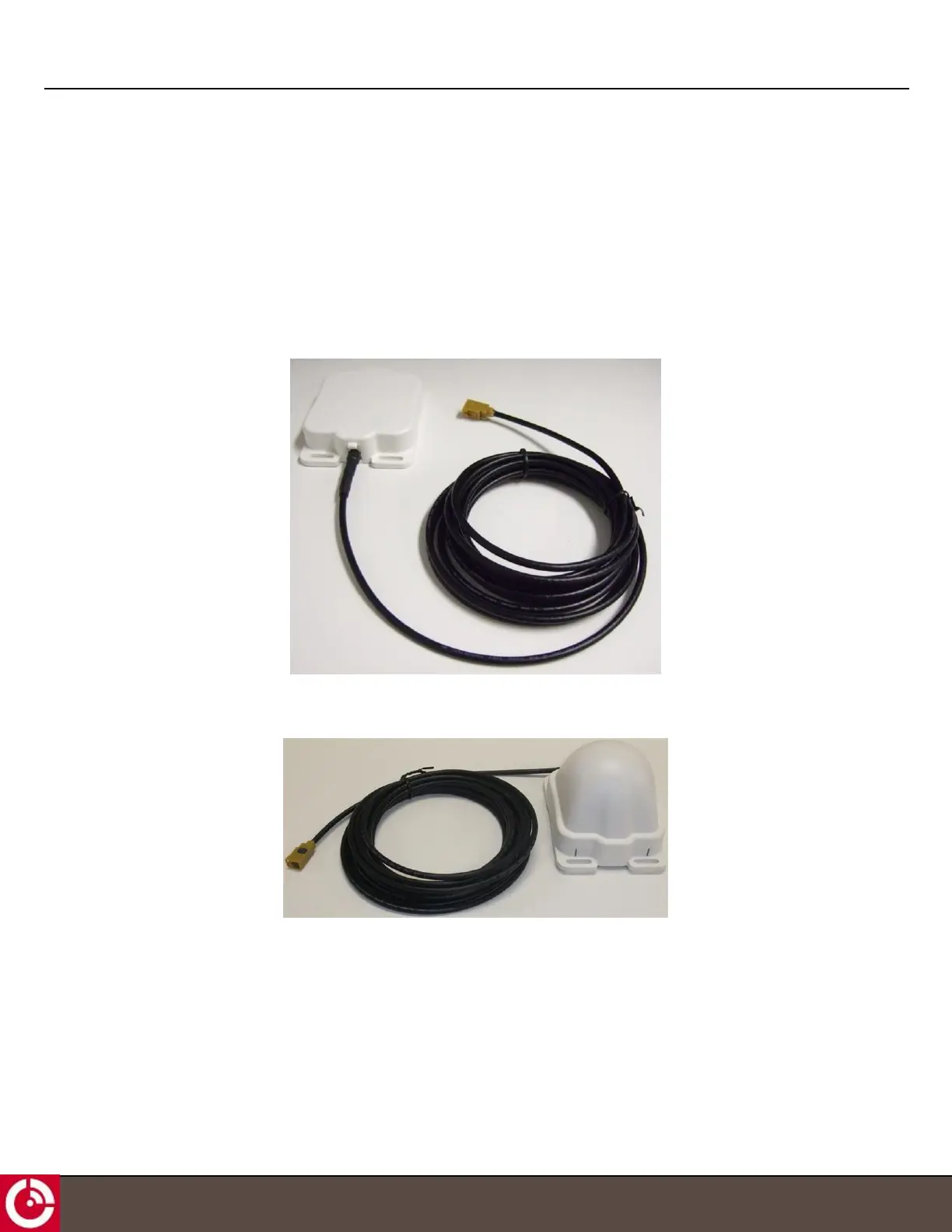

Figure 6: Standard Satellite Antenna
Figure 7: Low Elevation Satellite Antenna
1.3.3 Cellular Antenna
The ST 9100 cellular antenna is an LTE antenna with a burgundy colored FAKRA connector.
