ORBCOMM ST 9100 - Satellite Antenna; Standard Antenna; Figure 19: Satellite Antenna (Standard and Low Elevation) - Bottom View (MM)

ST 9100 - HARDWARE GUIDE
Parameter Value
Dimensions 129.5 x 22.8 x 7 mm (5 in. x 0.9 x 0.27 in.)
Cable length 3 m (10 ft.)
Mounting FAKRA straight plug connector
Operating Temperature -40°C to 85°C (-40°F to 185°F)
2.16.3 Satellite Antenna

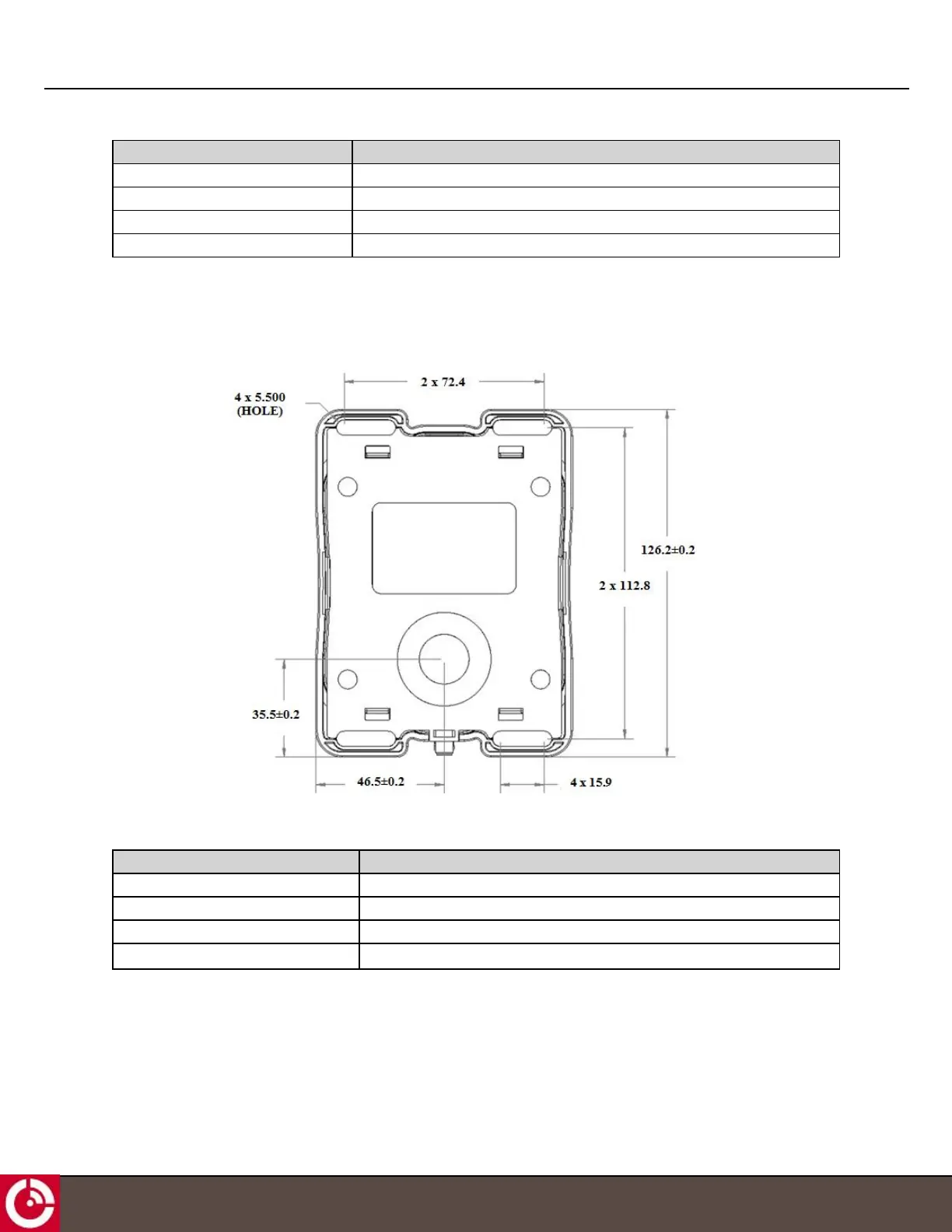

Figure 19: Satellite Antenna (standard and low elevation) - Bottom View (mm)
2.16.3.1 Standard Antenna
Parameter Value
Mass Side entry with 5 m (16 ft.) cable: 360 g (13 oz.)
Enclosure Material Lexan EXL
Color Code 8T9D076 (white)
Sealing Gasket Material Santoprene
®
