ST 9100 - HARDWARE GUIDE
Type u-blox Toby L280 series
LTE Module LTE bands: 1, 3, 5, 7, 8, 28
UMTS bands: 850, 900, 1900, 2100 MHz
GSM 850/900/1800/1900 MHz
Output Power LTE power Class 3 (23dBm)
UMTS/HSDPA/HSUPA power Class 3 (24dBm)
GSM/GPRS Power Class:
*Class 4 (33 dBm) for GSM/E-GSM band
*Class 1 (30 dBm) for DCSPCS band
EDGE(8-PSK) Power Class:
*Class E2 (27 dBm) for GSM/E-GSM band
*Class E2 (26 dBm) for DCS/PCS band
Input Power Peak currents of 1.9 A typical, 2.5 A maximum. Module supply peak current consumption: peak of
current consumption through the VCC pins during a GSM 1-slot Tx burst at maximum Tx power,
with a matched antenna
Data Transfer LTE Category 4: up to 150Mb/s DL, 50 Mb/s UL
HSDPA category 24: up to 42 Mb/s DL, HSUPA category 6: up to 5.6 Mb/s UL
GPRS multi-slot class 12, CS1-CS4, up to 85.6 kb/s DL/UL
EDGE multi-slot class 12, MCS1-MCS9, up to 236.8 kb/s DL/UL
Antenna Detect Output DC current pulse: 21 µA typical
Output DC current pulse time length: typical 3.6 ms
2.14 Bluetooth Module
Not available for beta trials.
2.15 LED
The transceiver has four visible LEDs (2.15) to indicate status.

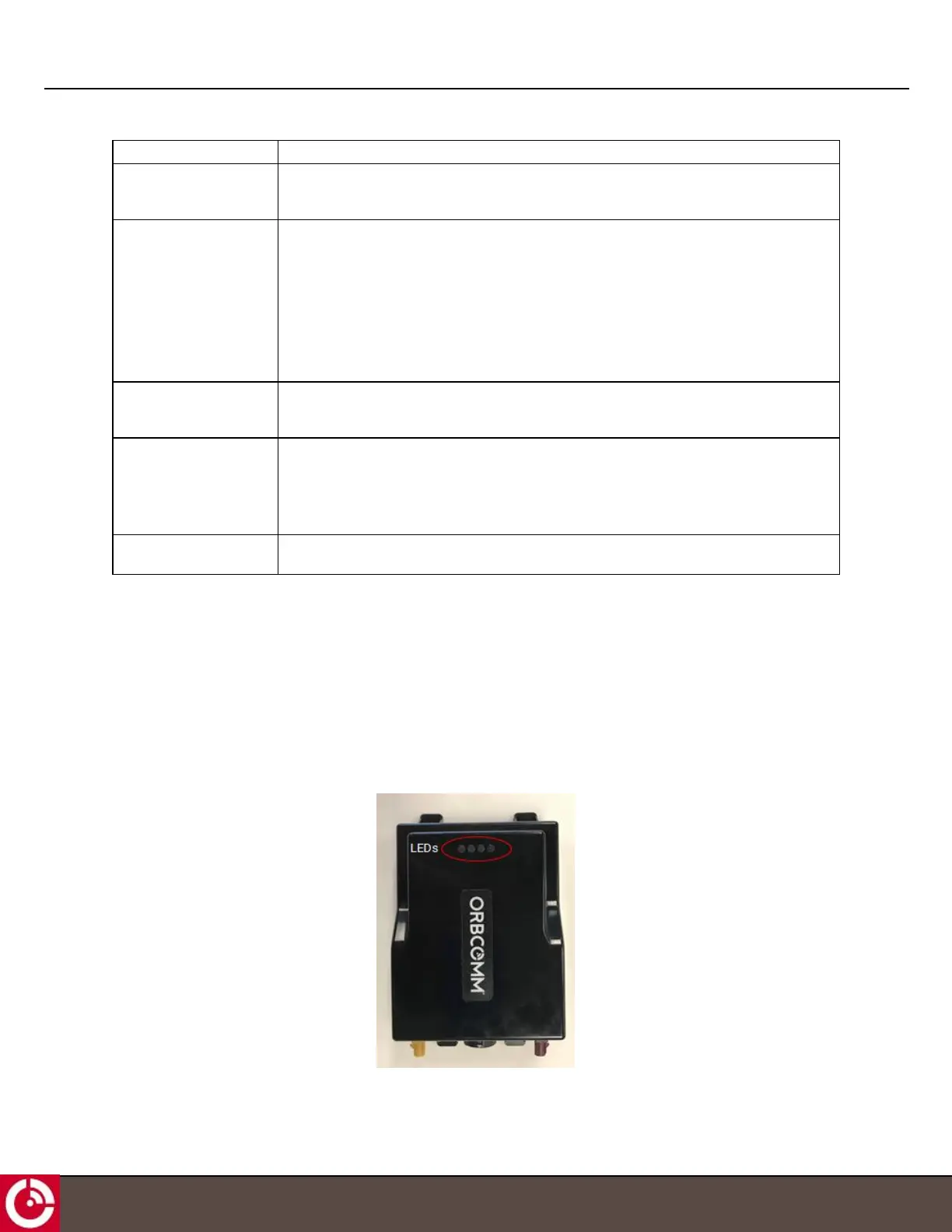

Figure 16: LED Location
T413, Version 0.04 BETA © ORBCOMM
®
Proprietary
32
