ST 9100 - HARDWARE GUIDE

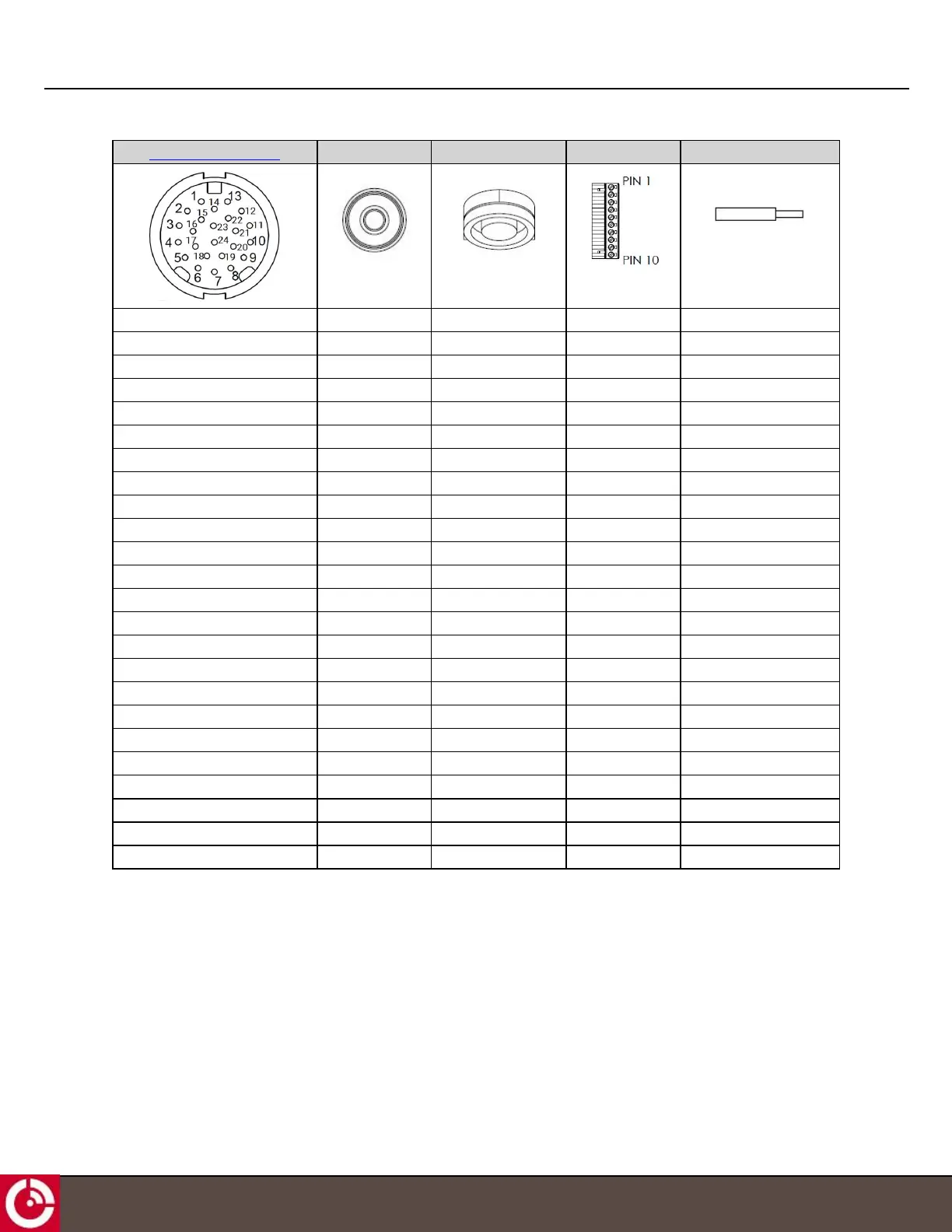

Transceiver Connector End F End G End H End I
PIN 9 - 1Wire Com 1Wire Common
PIN 10 - RS232 TX
PIN 21 - RS232 RX
PIN 22 - AUX RS232 TX
PIN 13 - CAN 1 Low
PIN 14 - CAN 0 Low
PIN 1 - RS485 A
PIN 24 - Dig IN 2 PIN 8
PIN 16 - Dig IN1 PIN 7
PIN 4 - I/O_4 PIN 4
PIN 5 - I/O_2 Input 1
PIN 6 _ Ground Ground PIN 2
PIN 7 - VEXT PIN 1
PIN 8 - Out 6 PIN 6
PIN 18 - I/O_1 I/O_1
PIN 17 - I/O_3 PIN 3
PIN 3 - Dig IN 3 PIN 9
PIN 15 - RS485 B
PIN 23 - CAN 0 High
PIN 12 - CAN 1 High
PIN 11 - AUX RS232 RX
PIN 20 - 1Wire Data 1Wire Data
PIN 19 - Out 5 PIN 5
PIN 2 - Dig IN 4 PIN 10
