Version 2.1
11
DESCRIPTION
1
DESCRIPTION
1.1
Overview
AD
o
m
e
B

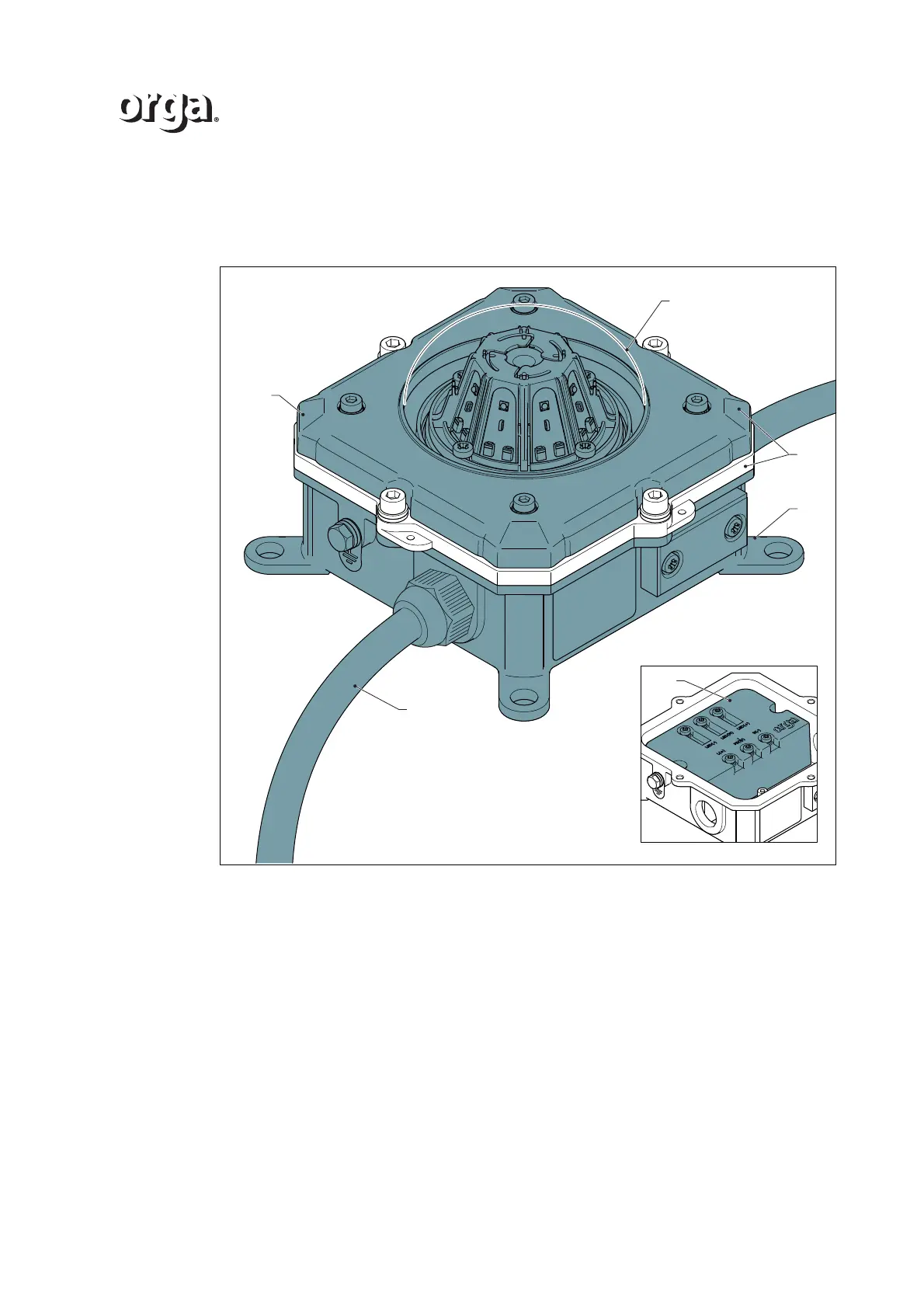

Cover assembly
CH
o
u
s
i
n
g
D
Control unit
E
Power su
pply cable t
o contro
l panel
F
Clamping ring
1.1.1
Description
The lighting fixture or
aer
onautical obstruction light, L85EX m
arks the offshore helicopter
deck
and obstructions
for
aviation traf
fic.The pe
rimeter
light
is
steady
burning. The
lighting
fixture is explosion proof.
A
B
C
D
E
F
10
12
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
5
Before You Begin
5
Abbreviations and Terminology
5
Icons Used in this Document
6
Safety
7
Intended Use
7
Label
7
Installation
8
Operation
8
Maintenance and Repair
8
Ex Certificates
8
ATEX Certification
8
Iecex Certification
8
EC - Declaration of Conformity
8
Warranty Policy
9
Description
11
Overview
11
Overview of the Recessed Version
12
Product Types
13
Installation
15
Unpack the Delivery
15
Preparation
15
Safety During Installation
15
Installation of L85EX
16
Install the Light Fixture
16
Open the Cover Assembly
16
Connect the Power Supply Cable
16
Connect the Wiring of the Lighting Fixture
17
Close the Cover Assembly
18
Installation of L85EX Recessed
19
Open the Cover Assembly
19
Connect the Power Supply Cable
19
Connect the Wiring of the Lighting Fixture
19
Close the Cover Assembly
20
Install the Light Fixture
20
Access to Parts
23
Open the Cover Assembly
23
Close the Cover Assembly
23
Open the Cover Assembly of the Recessed Version
24
Close the Cover Assembly of the Recessed Version
24
Maintenance
25
Advised Maintenance Schedule
25
Maintenance Procedures
25
Troubleshooting
27
Failure of the Light Fixture
27
Check the Electrical Connections
28
Replace the Dome
29
Technical Data
31
Mechanical Specification
31
Perimeter Light L85EX-G-AC
31
Perimeter Light L85EX-G-AC-RE
33
Aeronautical Obstruction Light L85EX-R-AC-10
34
Aeronautical Obstruction Light L85EX-R-AC-32
36
Aeronautical Obstruction Light L85EX-R-AC-50
37
Aeronautical Obstruction Light L85EX-R-AC-200
38
Perimeter Light L85EX-B-AC
39
Perimeter Light L85EX-Y-AC
40
Perimeter Light L85EX-G-DC
41
Perimeter Light L85EX-G-DC-RE
42
Aeronautical Obstruction Light L85EX-R-DC-10
43
Aeronautical Obstruction Light L85EX-R-DC-32
45
Aeronautical Obstruction Light L85EX-R-DC-50
46
Aeronautical Obstruction Light L85EX-R-DC-200
47
Perimeter Light L85EX-B-DC
48
Perimeter Light L85EX-Y-DC
49
Accessories
50
Swivel Elbow Adapter for Cable Gland (Optional for Recessed Versions)
50
Site Specifications
50
Cavity Sizes for the Recessed Versions
50
Labels
51
Labels
52
Delivery and Spare Parts
53
Delivery Information L85EX
53
Spare Parts
54
Batex Certificate
55
EC-Type Examination Certificate L85EX
55
Ciecex CERTIFICATE
59
Iecex Certificate of Conformity L85EX
59
DEC - Declaration of Conformity
65
EC - Declaration of Conformity L85EX
65
Ex CERTIFICATE
67
Ex Certificate of Conformity L85EX (Optional)
67
