ACCESS TO PARTS
24 Version 2.1

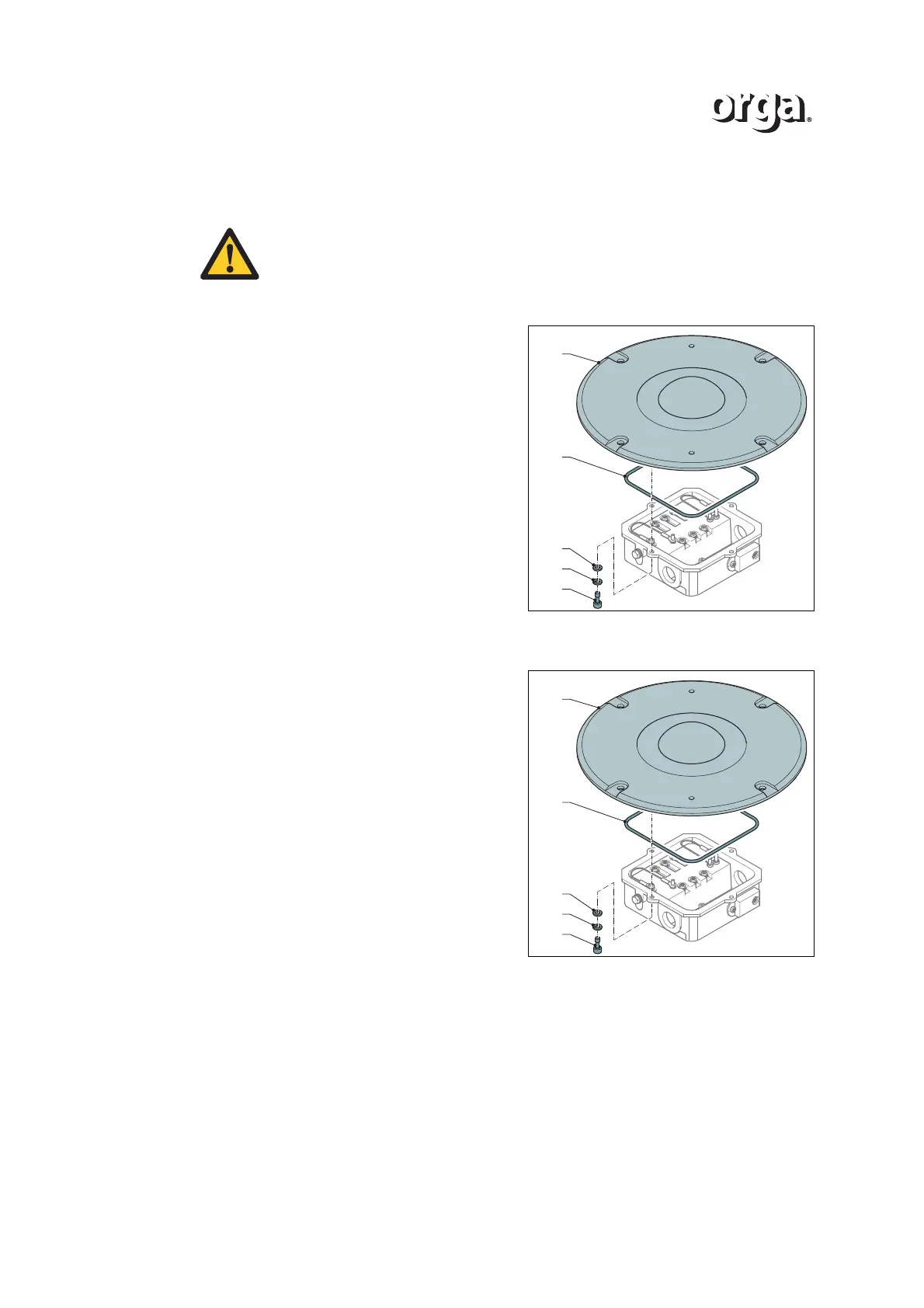

2.3 Open the cover assembly of the recessed version
1. Remove the four bolts (A) and the
washers (B) and (C).
2. Open the cover assembly (E).
3. Remove the seal (D) with the cover.
2.4 Close the cover assembly of the recessed version
1. Close the cover assembly (E) with the
seal (D).
2. Install the four bolts (A) with the washers
(B) and (C). Apply a torque of minimum
2.5 and maximum 3.5 Nm.
WARNING
Make sure that the equipment is de-energized:
1 On the control panel, turn the mains power switch to the OFF position.
2 Switch off the mains power supply.
