1.4 Installation of L85EX
1.4.1 Install the light fixture
Orga advises to install the light fixture according to the procedure below:
1. Install the light fixture with the cables
sideways (because of the looping).
2. Fasten the light fixture to the surface.

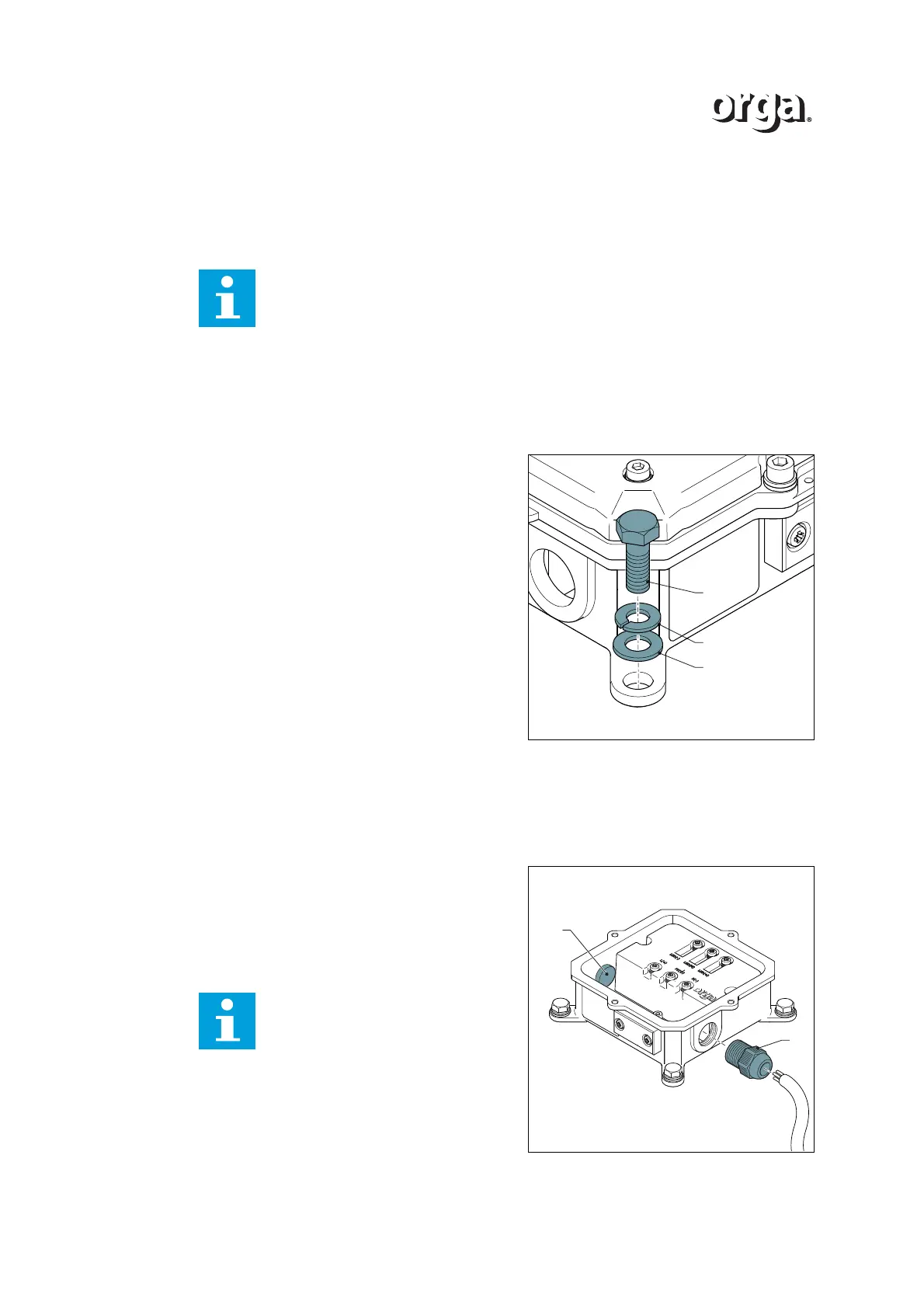

• Fasten the foot of the base with a bolt
(A), a suitable spring lock washer (B)
and washer (C).
• Fasten each foot of the base.
3. Make sure that the light fixture is
horizontally levelled. Use a spirit level
device.
4. Install the light fixture electrically.
1.4.2 Open the cover assembly
1. Open the cover assembly. Refer to section 2.1.
1.4.3 Connect the power supply cable
1. Fasten the power supply cable with the
cable gland (A)
2. Close the second cable entry with a blind
plug (B).
3. Connect the cable to the control panel (not
included).
Note
• The light fixture must be installed on a rigid, horizontal surface, in a posi-
tion that meets the specific visibility requirements.
• Always use fixing bolts, nuts and locknuts to horizontally level the lighting
fixture.
• Keep an open space of 1 m around the light fixture for maintenance pur-
poses.
Note
For looping (daisy chaining), use
two power supply cables and two
cable glands.
