INSTALLATION
18 Version 2.1

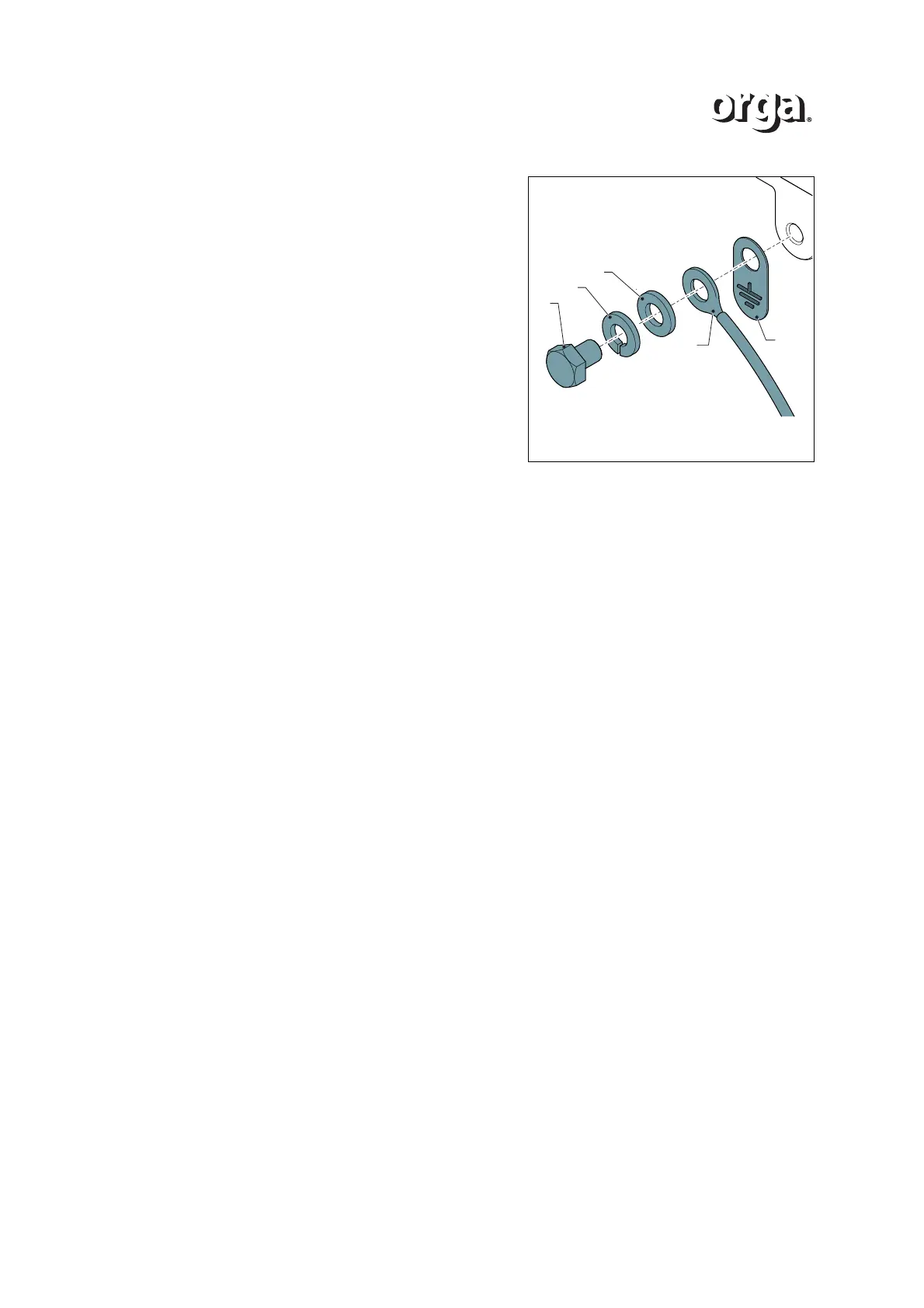

1. Connect the metric M6 connection on the
foot of the base with an earth cable
mounting bolt (A) to a grounded structure
on the platform.
- Place the earthing tag (E) on the
base.
- Use a PE wire with a cross-sectional
area of at least 4 mm
2
with a supplied
cable lug (D).
- Use a M6 earth cable mounting bolt
(A) in combination with the provided
spring lock washer (B) and washer
(C).
1.4.5 Close the cover assembly
1. Close the cover assembly. Refer to section 2.2.
