ORGA L85EX User Manual

Version 2.1 29
TROUBLESHOOTING

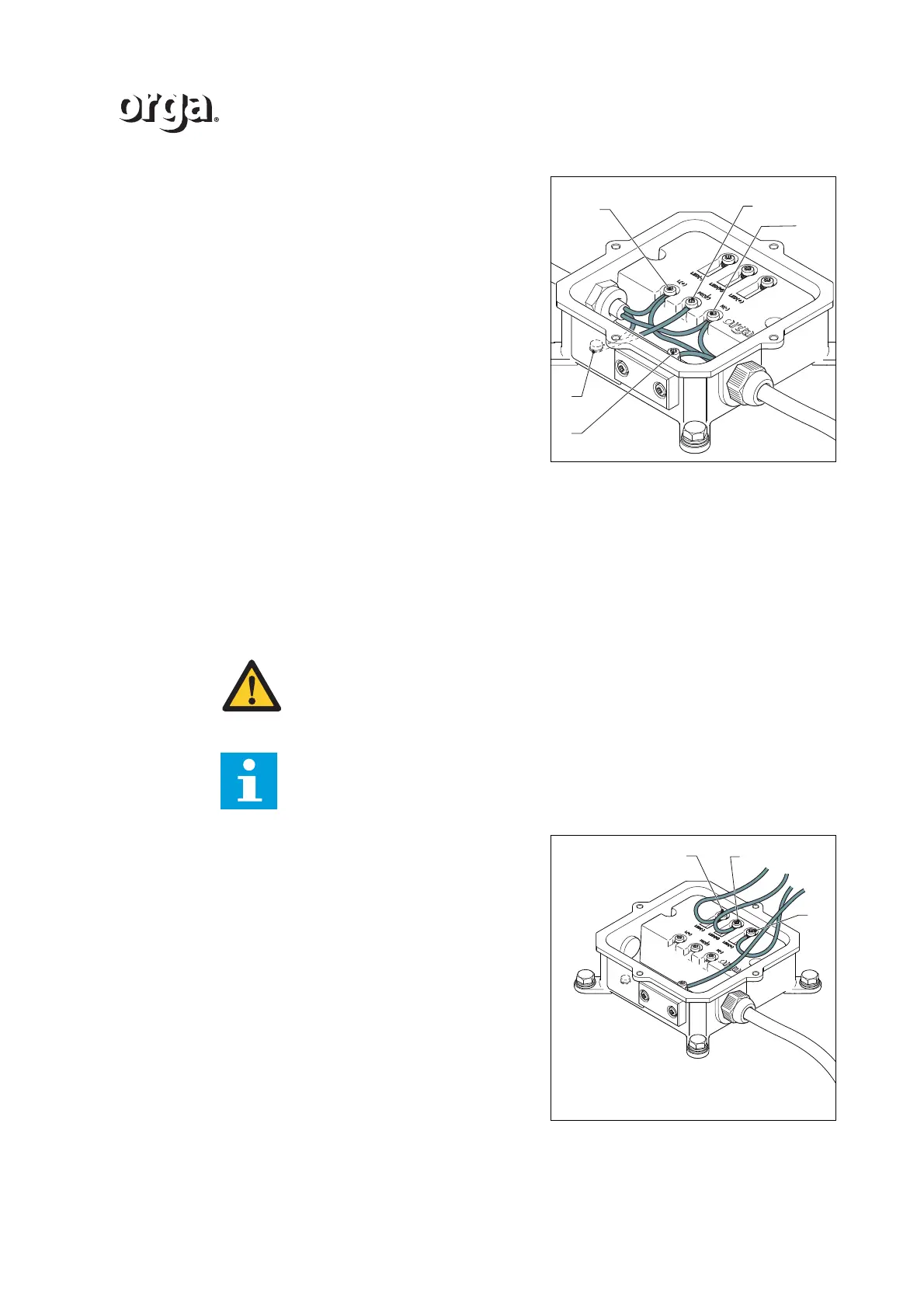

1. Open the cover assembly, see section 2.
2. Check if the electrical connections in the
housing are tight.
• Connection to terminal L (+).
• Earth connection PE.
• Connection to terminal N (-).
• Earth connection (A) in the housing.
3. If necessary, correct the connection(s).
4. Switch on the mains power supply.
5. Check if the LED’s function.
• If yes, switch off the power supply and
close the lighting fixture.
• If not, check the power supply from
the control panel.
6. On the control panel, turn the mains power switch to the ON position.
7. Check if the LED’s function.
• If yes, switch off the power and close the lighting fixture.
• If not, replace the control unit.
8. Close the cover assembly, see section 2.
4.3 Replace the dome
1. Connect the live wire from the cover
assembly with terminal -. Apply a torque of
minimum 0.75 and maximum 1.25 Nm.
2. Connect the neutral wire with terminal +.
Apply a torque of minimum 0.75 and
maximum 1.25 Nm.
3. Connect the earth wire with terminal M.
Apply a torque of minimum 0.75 and
maximum 1.25 Nm.
4. Connect the second earth wire (A) to the
earth connection (B).
5. Close the lighting fixture. Refer to 2.
N(-)
PE
L(+)
A
B
WARNING
Only use cable lugs of the eyelet type.
Note
Do not strip the insulation of the wiring more than is necessary.
+
m
-
